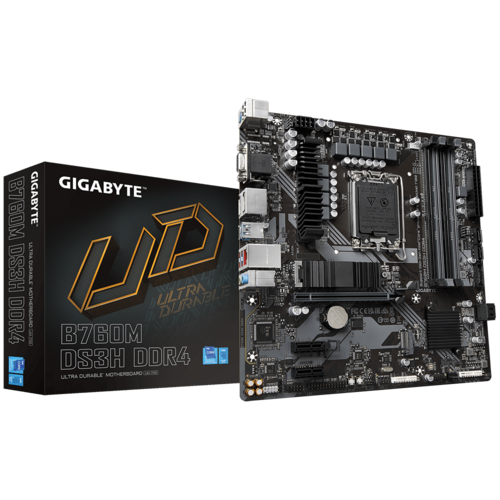

Gigabyte B760M DS3H DDR4 Micro-ATX LGA1700 Intel B760
€83,01
Gigabyte B760M DS3H DDR4 - 1.0 - bundkort - micro ATX - LGA1700 sokkel - B760 Chipset - USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen2 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Availability: In stock
Secure payment · Fast delivery
EAN:4719331850876Categories:, , Brand:
Gigabyte B760M DS3H DDR4 - 1.0 - bundkort - micro ATX - LGA1700 sokkel - B760 Chipset - USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen2 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Specifications
Specifications
| CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel B760 Express Chipset |
| Memory | 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| Onboard Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| Audio | Realtek Audio CODEC |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 2 x PCIe 3.0 x1 | 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interface | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
| USB | 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support, 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header), 2 x USB 2.0/1.1 ports on the back panel |
| I/O Controller | iTE I/O Controller Chip |
| BIOS | 1 x 128 Mbit flash |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Chipset Type | Intel B760 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1700 Socket |
| Product Type | Motherboard - micro ATX |
| Bus Clock | 2400 MHz, 2133 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3666 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4500 MHz (O.C |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Technology | DDR4 |
| Compliant Standards | WEEE, DisplayPort 1.2, HDCP 2.3, UKCA, FCC Part 15 Subpart B |
| Type | HD Audio (8-channel) |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Interfaces | 2 x DisplayPort | 1 x HDMI | 1 x VGA | 2 x USB 2.0 | 3 x USB 3.2 Gen 1 | 1 x USB-C 3.2 Gen 2 | 1 x audio line-in - mini-jack | 1 x microphone - mini-jack | 1 x audio line-out - mini-jack | 1 x LAN (2.5Gigabit Ethernet) | 1 x PS/2 keyboard / mouse |
| Internal Interfaces | 4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x audio - header | 1 x parallel - header | 1 x serial - header | 1 x SPI - header | 1 x SPDIF out - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 4.0 -connectors: 2 x M.2 |
| BIOS Features | WfM 2.0 support, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| BIOS Type | AMI |
| Hardware Features | Q-Flash Plus, RGB FUSION, M.2 Thermal Guard, Solid Pin Power Connectors, DIY Friendly Design, GIGABYTE Smart Fan 6, 6+2+1 Phase Power Design, MultiKey |
| Hardware Monitoring | Water cooling flow rate, fan fail warning, fan control |
| Cables Included | 2 x Serial ATA cable |
| Depth | 24.4 cm |
| Included Accessories | External antenna |
| Software Included | Norton Internet Security |
| Width | 24.4 cm |
