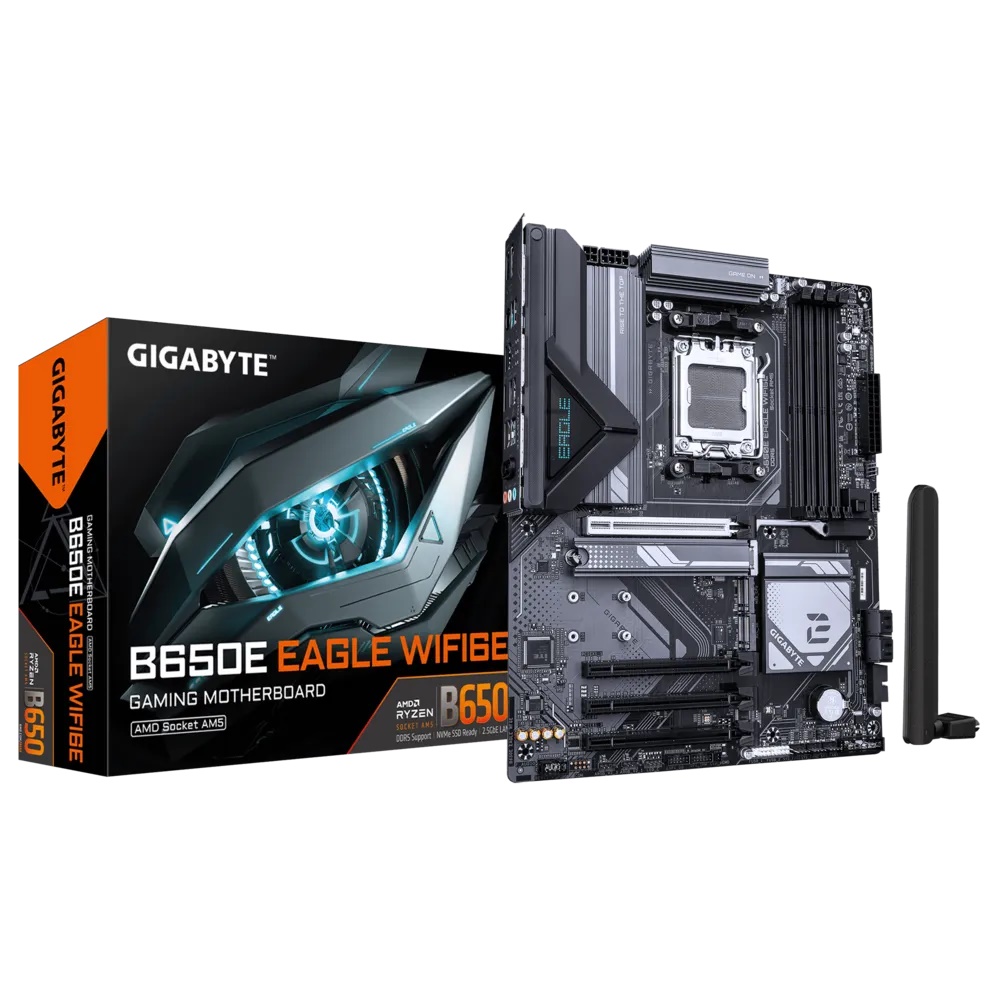

Gigabyte B650E Eagle WIFI6E ATX AM5
€142,98
Gigabyte B650E Eagle WIFI6E - Bundkort - ATX - Socket AM5 - AMD B650E Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - Realtek HD Audio
Availability: In stock
Secure payment · Fast delivery
EAN:4719331877798Categories:, , Brand:
Gigabyte B650E Eagle WIFI6E - Bundkort - ATX - Socket AM5 - AMD B650E Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - Realtek HD Audio
Specifications
Specifications
| CPU | Socket AM5 |
| Chipset | AMD B650 |
| Memory | 4x DDR5 DIMM (Dual channel) 8200(O.C) non-ECC - up to 256 GB |
| Display outputs | 1x DisplayPort 1.4, 1x HDMI 2.1 |
| Audio | Realtek Audio CODEC - 2/4/5.1/7.1-channel |
| LAN | Realtek 2.5GbE LAN |
| Wireless | MediaTek Wi-Fi 6E MT7902, Bluetooth 5.3 |
| Expansion Slots | 1x PCI Express x16 slot (5.0 x16), 1x PCI Express x16 slot (4.0 x4), 2x PCI Express x16 (PCIe 3.0 x1) |
| Storage Interface | 3x M.2 22110/2280 (1x 5.0 x4/x2, 1x PCIe 4.0 x4/x2, 1x PCIe 4.0 x2), 4x SATA 6Gb/s |
| USB | 2x USB Type-C 3.2 Gen 1, 2x USB 3.2 Gen 2 Type-A, 4x USB 3.2 Gen 1, 8x USB 2.0/1.1 |
| Back Panel Connectors | 1x DisplayPort 1x HDMI, 1x Q-Flash Plus button, 4x USB 2.0/1.1 ports, 1x PS/2, 2x USB 3.2 Gen 2 Type-A ports (red), 1x USB Type-C 3.2 Gen 1, 1x RJ-45, 1x USB 3.2 Gen 1, 2x antenna connectors (1T1R), 3x audio jacks |
| I/O Controller | iTE I/O Controller Chip |
| BIOS | 256 Mbit flash AMI UEFI BIOS |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
