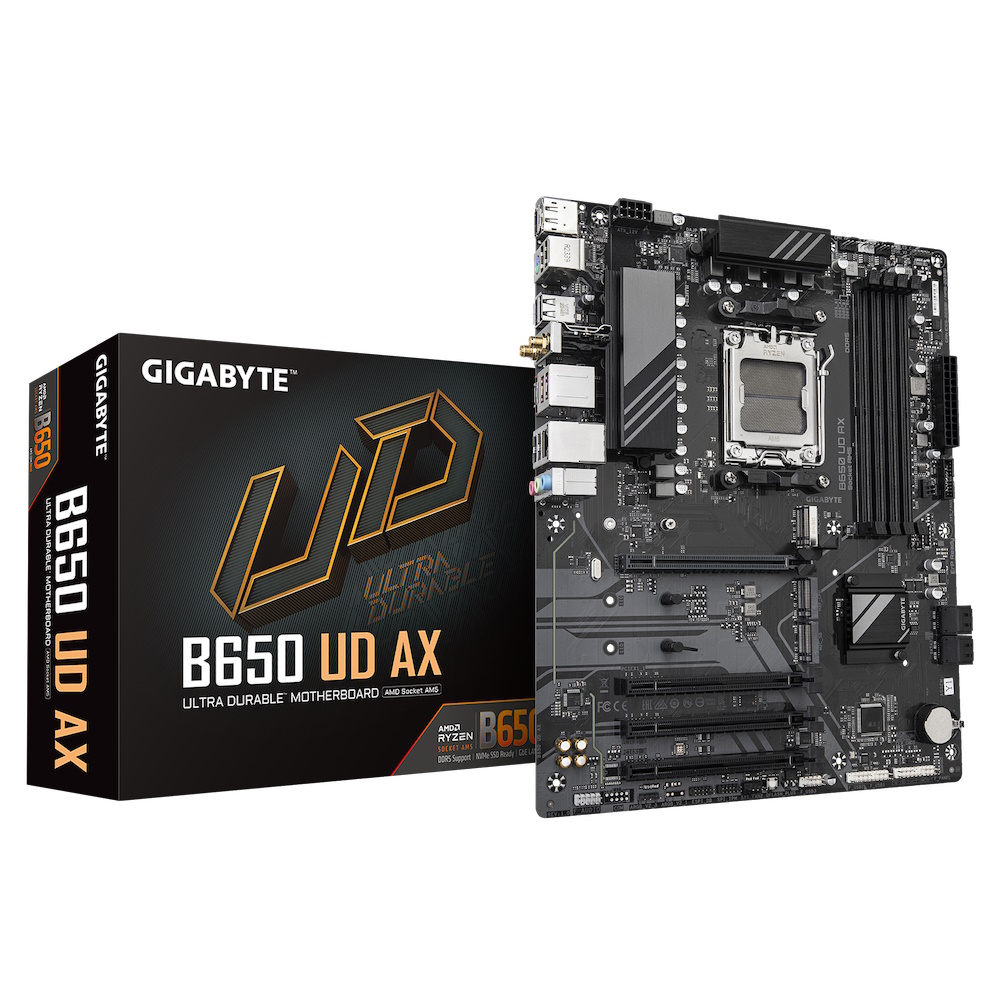

Gigabyte B650 UD AX ATX Socket AM5 AMD B650
€109,26
Gigabyte B650 UD AX - 1.0 - bundkort - ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1 - Gigabit LAN, Wi-Fi 6, Bluetooth - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Availability: In stock
Secure payment · Fast delivery
EAN:4719331863944Categories:, , Brand:
Gigabyte B650 UD AX - 1.0 - bundkort - ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1 - Gigabit LAN, Wi-Fi 6, Bluetooth - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Specifications
Specifications
| CPU | AMD Socket AM5 - support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors |
| Chipset | AMD B650 Chipset |
| Memory | 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) (Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules) |
| Audio | Realtek® ALC897 High Definition Audio |
| LAN | Realtek® RTL8111H GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Wireless Communication module | Realtek® RTL8851 WIFI 6 module |
| Expansion Slots | 1x PCI Express x16 slot (support PCIe 4.0 x16 mode), 3x PCI Express x16 slots (supporting PCIe 3.0 and running at x1) |
| Storage Interface | 1x M.2 connector (M2A_CPU, M key, type 25110/22110/2580/2280 SSDs), 1x M.2 connector (M2P_CPU, M key, type 22110/2280 SSDs), 1x M.2 connector (M2C_SB, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support), 4x SATA 6Gb/s connectors |
| Internal USB | 2x USB 3.2 Gen 1, 1x USB Type-C (USB 3.2 Gen 1), 6x USB 2.0/1.1 |
| Back Panel Connectors | 1x DisplayPort 1.4, 1x HDMI 2.1, 1x PS/2 keyboard/mouse port, 2x SMA antenna connectors (2T2R), 1x USB Type-C® port, with USB 3.2 Gen 1 support, 2x USB 3.2 Gen 2 Type-A ports (red), 6x USB 2.0/1.1 ports, 1x RJ-45 port, 3x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| BIOS | 256 Mbit flash - AMI UEFI BIOS |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
