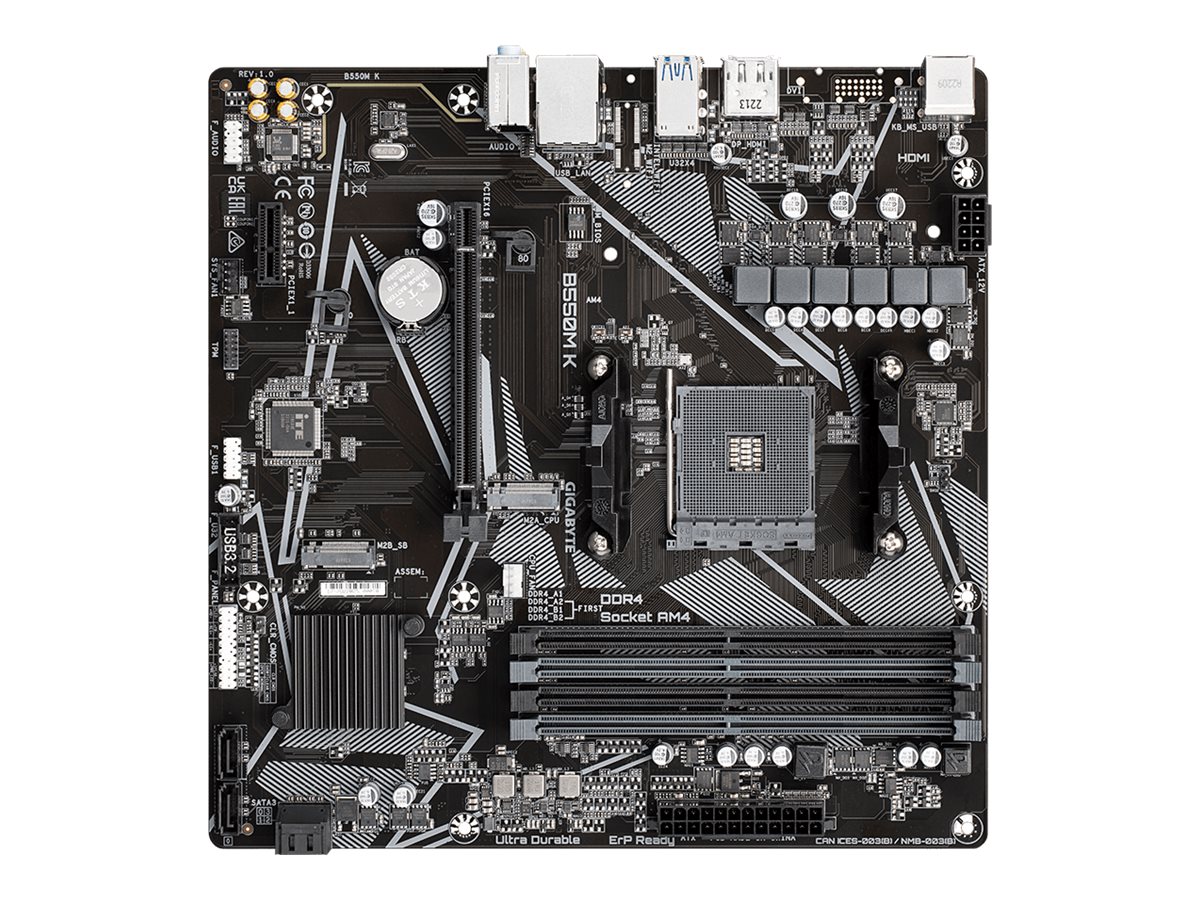

Gigabyte B550M K Micro-ATX AM4 AMD B550
€63,09
Gigabyte B550M K - 1.0 - bundkort - micro ATX - Socket AM4 - AMD B550 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Availability: In stock
Secure payment · Fast delivery
EAN:4719331852764Categories:, , Brand:
Gigabyte B550M K - 1.0 - bundkort - micro ATX - Socket AM4 - AMD B550 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Specifications
Specifications
| Produktbeskrivelse | Gigabyte B550M K - 1.0 - bundkort - micro ATX - Socket AM4 - AMD B550 |
| Produkttype | Bundkort - micro ATX |
| Chipsættype | AMD B550 |
| Processor-socket | 1 x Socket AM4 |
| Kompatible processorer | Ryzen (understøtter Ryzen 3000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series) |
| Max RAM-størrelse | 128 GB |
| RAM understøttet | 4 DIMM slots - DDR4, non-ECC, ECC, not buffered |
| Lagringsporte | 4 x SATA-600 (RAID), 2 x M.2 |
| USB / FireWire porte | 4 x USB 3.2 Gen 1 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via samlekasser) |
| Audio | HD Audio (8-kanaler) |
| LAN | Gigabit Ethernet |
| Chipset Type | AMD B550 |
| Compatible Processors | Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM4 |
| Product Type | Motherboard - micro ATX |
| Bus Clock | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3333 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 4733 MHz (O.C.) |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Technology | DDR4 |
| Compliant Standards | WEEE, DisplayPort 1.4, HDCP 2.3, FCC Part 15 Subpart B |
| Type | HD Audio (8-channel) |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen 5000 Series/ 3000 Series CPUs); PCIe 3.0 x16 mode (Ryzen 5000 G-Series / 4000 G-Series CPUs)) | 1 x PCIe 3.0 x1 | 1 x M.2 socket (2280 M.2 Key M slot) |
| Interfaces | 1 x HDMI | 1 x DisplayPort | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x PS/2 keyboard / mouse | 1 x LAN (Gigabit Ethernet) | 4 x USB 3.2 Gen 1 | 4 x USB 2.0 |
| Internal Interfaces | 2 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x audio - header | 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| BIOS Type | AMI |
| Hardware Features | Q-Flash, Ultra Durable, GIGABYTE Double Locking Bracket, Anti-Sulfur Design, Glass Fabric PCB, Solid Pin Power Connectors, GIGABYTE Smart Fan 6 |
| Hardware Monitoring | Chassis fan tachometer, system voltage, fan fail warning, fan control |
| Cables Included | 1 x Serial ATA cable |
| Depth | 24.4 cm |
| Included Accessories | IO shield |
| Software Included | Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE Smart Backup |
| Width | 24.4 cm |
