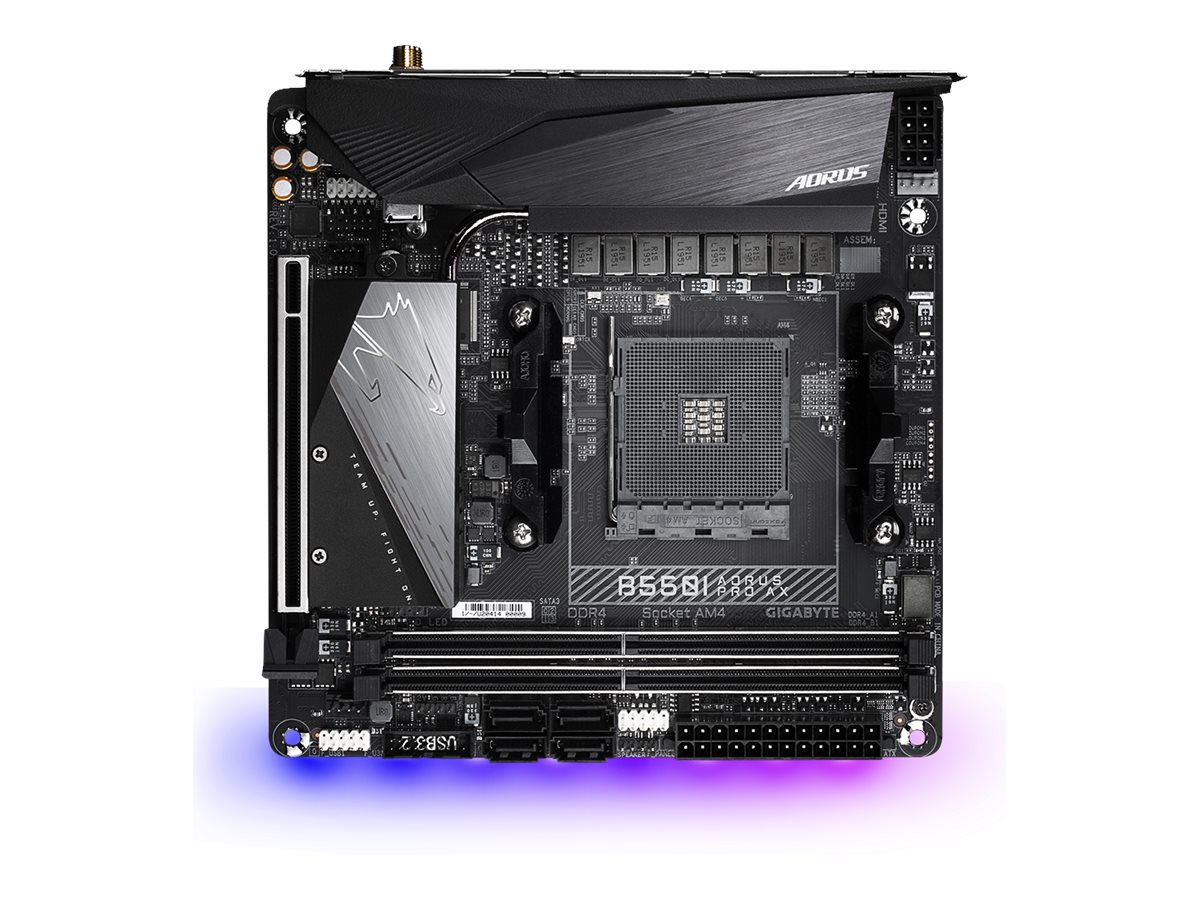

Gigabyte B550I AORUS PRO AX Mini ITX AM4 AMD B550
€127,29
Gigabyte B550I AORUS PRO AX - 1.0 - bundkort - mini ITX - Socket AM4 - AMD B550 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Availability: In stock
Secure payment · Fast delivery
EAN:4719331809508Categories:, , Brand:
Gigabyte B550I AORUS PRO AX - 1.0 - bundkort - mini ITX - Socket AM4 - AMD B550 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Specifications
Specifications
| Produktbeskrivelse | Gigabyte B550I AORUS PRO AX - 1.0 - bundkort - mini ITX - Socket AM4 - AMD B550 |
| Produkttype | Bundkort - mini ITX |
| Chipsættype | AMD B550 |
| Processor-socket | 1 x Socket AM4 |
| Kompatible processorer | Ryzen (understøtter 3. Generation Ryzen and New Generation Ryzen med Radeon Graphics) |
| Max RAM-størrelse | 64 GB |
| RAM understøttet | 2 DIMM slots - DDR4, ikke-ECC, ECC, ikke bufferet |
| Lagringsporte | 4 x SATA-600 (RAID), 2 x M.2 |
| USB / FireWire porte | 1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via samlekasser) |
| Maks. allokeret RAM-størrelse | 16 GB |
| Audio | HD Audio (8-kanaler) |
| LAN | 2.5 Gigabit Ethernet, Bluetooth 5.0, 802.11a/b/g/n/ac Wave 2/ax |
| Chipset Type | AMD B550 |
| Compatible Processors | Ryzen (supports 3rd Generation Ryzen and New Generation Ryzen with Radeon Graphics) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM4 |
| Product Type | Motherboard - mini ITX |
| Bus Clock | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3333 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 4866 MHz (O.C.) |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Max Size | 64 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Technology | DDR4 |
| Max Allocated RAM Size | 16 GB |
| Audio Codec | Realtek ALC1220-VB |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.0, 802.11a/b/g/n/ac Wave 2/ax |
| Expansion Slots | 1 x CPU | 2 x DIMM 288-pin | 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with New Generation Ryzen with Radeon Graphics CPU)) |
| Interfaces | 1 x LAN (2.5Gigabit Ethernet) | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 2 x HDMI | 4 x USB 3.2 Gen 1 | 1 x USB-C Gen2 | 1 x USB 3.2 Gen 2 | 1 x DisplayPort |
| Internal Interfaces | 2 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x audio - header | 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 3.0 -connectors: 1 x M.2 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support |
| BIOS Type | AMI |
| Hardware Features | Q-Flash, 8 Phase Power Design, On/Off Charge, GIGABYTE AMP-UP Audio, 8 Layer PCB, Q-Flash Plus, Nichicon Fine Gold Series Audio Capacitors, Ultra Durable Memory Armor, GIGABYTE Smart Fan 5, Ultra Durable PCIe Armor, M.2 Thermal Guard, pre-mounted I/O |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Depth | 17 cm |
| Software Included | Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, XSplit Gamecaster (1 year license), XSplit Broadcaster (1 year license), Realtek Gaming LAN Bandwidth Control |
| Width | 17 cm |
