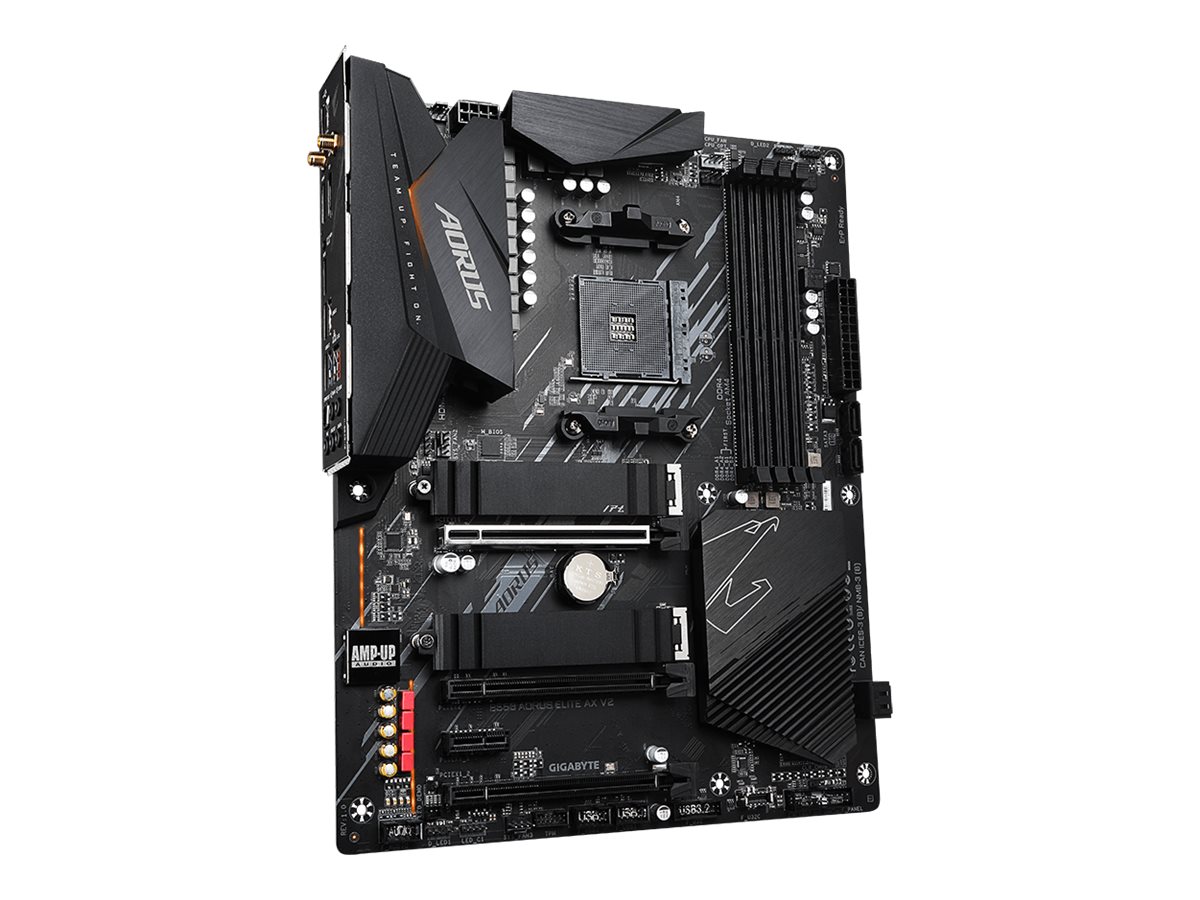

Gigabyte B550 AORUS ELITE AX ATX AM4 AMD B550
€119,27
Gigabyte B550 AORUS ELITE AX - 1.0 - bundkort - ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Availability: In stock
Secure payment · Fast delivery
EAN:4719331809904Categories:, , Brand:
Gigabyte B550 AORUS ELITE AX - 1.0 - bundkort - ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Specifications
Specifications
| Produktbeskrivelse | Gigabyte B550 AORUS ELITE AX - 1.0 - bundkort - ATX - Socket AM4 - AMD B550 |
| Produkttype | Bundkort - ATX |
| Chipsættype | AMD B550 |
| Processor-socket | 1 x Socket AM4 |
| Kompatible processorer | Ryzen (understøtter 3. Generation Ryzen /3. Generation Ryzen med Radeon Graphics) |
| Max RAM-størrelse | 128 GB |
| RAM understøttet | 4 DIMM slots - DDR4, non-ECC, ECC (operation in non-ECC mode), not buffered |
| Lagringsporte | 4 x SATA-600 (RAID), 2 x M.2 |
| USB / FireWire porte | 2 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser) |
| Audio | HD Audio (8-kanaler) |
| LAN | 2.5 Gigabit Ethernet |
| Chipset Type | AMD B550 |
| Compatible Processors | Ryzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM4 |
| Product Type | Motherboard - ATX |
| Bus Clock | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3333 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 4733 MHz (O.C.) |
| Features | Dual channel memory architecture, supported ECC modules operate in non-ECC mode |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Technology | DDR4 |
| Audio Codec | Realtek ALC1220 |
| Compliant Standards | HDCP 2.3 |
| Type | HD Audio (8-channel) |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion Slots | 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with New Generation Ryzen with Radeon Graphics CPU)) | 1 x PCIe 3.0 x16 (x2 mode) | 1 x PCIe 3.0 x16 (x1 mode) | 1 x PCIe 3.0 x1 |
| Interfaces | 2 x USB 3.2 Gen 2 | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x HDMI | 1 x DisplayPort | 2 x USB 2.0 | 3 x USB 3.2 Gen 1 | 1 x audio line-out (center/subwoofer) - mini-jack | 1 x audio line-out (r |
| Internal Interfaces | 4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x USB-C Gen 1 - header | 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 | PCIe 3.0 -connectors: 1 x M.2 |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support |
| BIOS Type | AMI |
| Hardware Features | Q-Flash, 12+2 Phase Power Design, HDCP compliant, On/Off Charge, Ultra Durable, GIGABYTE AMP-UP Audio, Audio Noise Guard with Path Lighting, 2x Copper PCB, WIMA film capacitors, Q-Flash Plus, Nichicon Fine Gold Series Audio Capacitors, Game Boost, GI |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Depth | 24.4 cm |
| Software Included | Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control |
| Width | 30.5 cm |
