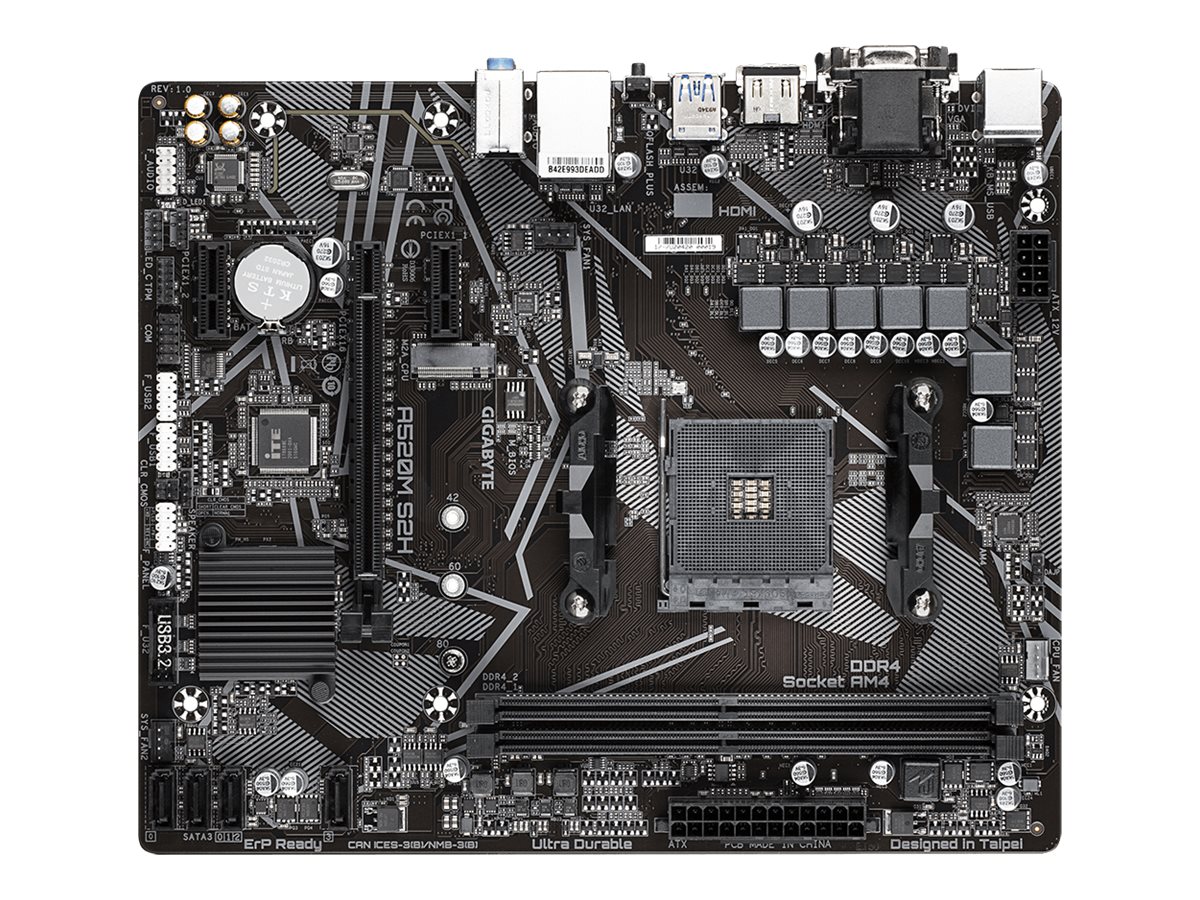

Gigabyte A520M S2H Micro-ATX AM4 AMD A520
€48,10
Gigabyte A520M S2H - 1.0 - bundkort - micro ATX - Socket AM4 - AMD A520 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Availability: In stock
Secure payment · Fast delivery
EAN:4719331809720Categories:, , Brand:
Gigabyte A520M S2H - 1.0 - bundkort - micro ATX - Socket AM4 - AMD A520 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Specifications
Specifications
| Produktbeskrivelse | Gigabyte A520M S2H - 1.0 - bundkort - micro ATX - Socket AM4 - AMD A520 |
| Produkttype | Bundkort - micro ATX |
| Chipsættype | AMD A520 |
| Processor-socket | 1 x Socket AM4 |
| Kompatible processorer | Ryzen (understøtter 3. Generation Ryzen /3. Generation Ryzen med Radeon Graphics) |
| Max RAM-størrelse | 64 GB |
| RAM understøttet | 2 DIMM slots - DDR4, ikke-ECC, ECC, ikke bufferet |
| Lagringsporte | 4 x SATA-600 (RAID), 1 x M.2 |
| USB / FireWire porte | 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser) |
| Maks. allokeret RAM-størrelse | 16 GB |
| Audio | HD Audio (8-kanaler) |
| LAN | Gigabit Ethernet |
| Chipset Type | AMD A520 |
| Compatible Processors | Ryzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM4 |
| Product Type | Motherboard - micro ATX |
| Bus Clock | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3333 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 4866 MHz (O.C.), 5000 MHz (O.C.) |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Max Size | 64 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Technology | DDR4 |
| Max Allocated RAM Size | 16 GB |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU | 2 x DIMM 288-pin | 1 x PCIe 3.0 x16 | 2 x PCIe 3.0 x1 |
| Interfaces | 1 x LAN (Gigabit Ethernet) | 1 x PS/2 keyboard / mouse | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x DVI-D | 1 x HDMI | 4 x USB 3.2 Gen 1 | 2 x USB 2.0 | 1 x VGA |
| Internal Interfaces | 4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x audio - header | 1 x serial - header | 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support |
| BIOS Type | AMI |
| Hardware Features | Q-Flash, All-Solid Capacitor motherboard Design, On/Off Charge, Ultra Durable, Q-Flash Plus, Audio Noise Guard, GIGABYTE Double Locking Bracket, Anti-Sulfur Design, GIGABYTE Smart Fan 5, Solid Pin Power Connectors, RGB FUSION 2.0, 4+3 Phase Power Des |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Depth | 20.5 cm |
| Software Included | Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control |
| Width | 24.4 cm |
