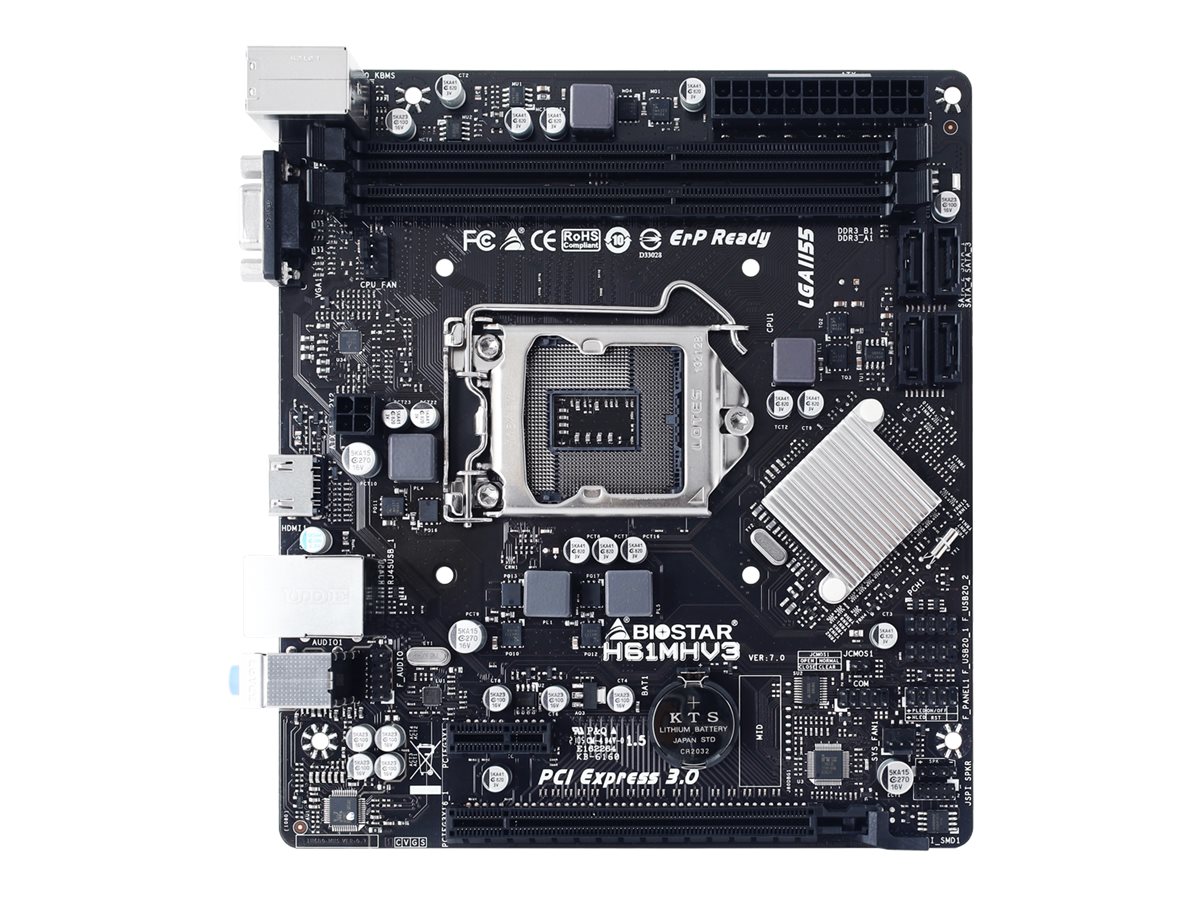

Biostar H61MHV3 Micro-ATX LGA1155 Intel H61 Express
€48,64
Biostar H61MHV3 - Bundkort - micro ATX - LGA1155 sokkel - H61 Chipset - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (6-kanaler)
Availability: In stock
Secure payment · Fast delivery
EAN:4712960685208Categories:, , Brand:
Biostar H61MHV3 - Bundkort - micro ATX - LGA1155 sokkel - H61 Chipset - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (6-kanaler)
Specifications
Specifications
| Produktbeskrivelse | Biostar H61MHV3 - bundkort - micro ATX - LGA1155 sokkel - H61 |
| Produkttype | Bundkort - micro ATX |
| Chipsættype | Intel H61 Express |
| Processor-socket | 1 x LGA1155 sokkel |
| Kompatible processorer | Pentium, Celeron, Core i5, Core i3, Core i7, Xeon E3-1200 serie |
| Max RAM-størrelse | 16 GB |
| RAM understøttet | 2 DIMM slots - DDR3, DDR3L |
| Lagringsporte | 4 x SATA-300 |
| USB / FireWire porte | 4 x USB 2.0 + (4 x USB 2.0 via samlekasser) |
| Audio | HD Audio (6-kanaler) |
| LAN | Gigabit Ethernet |
| Chipset Type | Intel H61 Express |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7, Xeon E3-1200 series |
| Max Processors Qty | 1 |
| Processor Socket | LGA1155 Socket |
| Product Type | Motherboard - micro ATX |
| Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz |
| Features | Dual channel memory architecture |
| Max Size | 16 GB |
| Technology | DDR3, DDR3L |
| Audio Codec | Realtek ALC662 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (6-channel) |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU | 2 x DIMM 240-pin | 1 x PCIe 3.0 x16 | 1 x PCIe 2.0 x1 |
| Interfaces | 1 x PS/2 keyboard | 1 x HDMI | 4 x USB 2.0 | 1 x VGA | 1 x LAN (Gigabit Ethernet) | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x audio line-in - mini-jack |
| Internal Interfaces | 4 x USB 2.0 - header | 1 x serial - header | 1 x audio - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| Storage Interfaces | SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices |
| BIOS Features | BIOSTAR [FLASHER] |
| Hardware Features | ESD Protection, X.D.C (eXtreme Durable Capacitors), Charger Booster, overcurrent protection, overvoltage protection, overheat protection |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage |
| Cables Included | 2 x Serial ATA cable |
| Depth | 17 cm |
| Included Accessories | I/O back plate |
| Software Included | Drivers & utilities, BIO-Remote2, BullGuard Internet Security (90 days trial), BIOScreen |
| Width | 19.1 cm |
