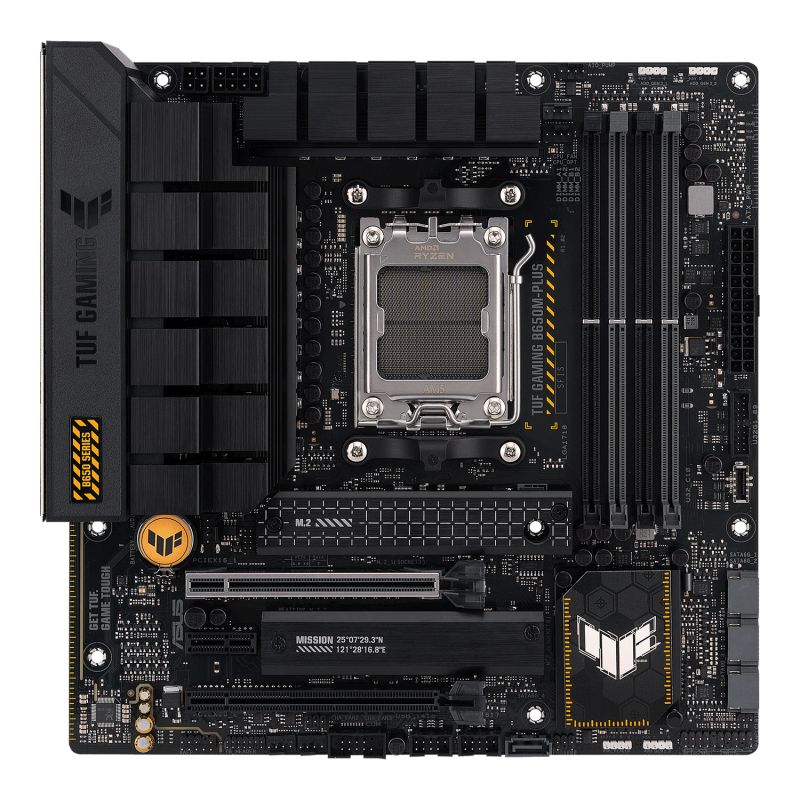

Asus TUF Gaming B650M-Plus Micro-ATX - DDR5
€149,54
Asus TUF Gaming B650M-Plus Micro-ATX - DDR5 - AM5 - 128GB
Availability: In stock
Secure payment · Fast delivery
EAN:4711081912392Categories:, , Brand:
Asus TUF Gaming B650M-Plus Micro-ATX - DDR5 - AM5 - 128GB
Specifications
Specifications
| Socket | AM5 |
| Chipsæt | AMD B650 |
| Understøttede RAM | 128GB, DDR5, Ikke bufferet |
| RAM Hastigheder | 6400MHz+ (OC), 6200MHz (OC), 6000MHz (OC), 5800MHz (OC), 5600MHz (OC), 5400MHz (OC), 5200MHz, 5000MHz, 4800MHz |
| Formfakter | Micro-ATX |
| LAN | 1x Realtek 2.5Gb Ethernet |
| Lyd Teknologi | Realtek 7.1 Surround Sound High Definition Audio |
| I/O Porte | 1x USB 3.2 Gen 2x2 port (1 x USB Type-C®), 2x USB 3.2 Gen 2 ports (2 x Type-A), 1x USB 3.2 Gen 1 port (1 x Type-A), 4x USB 2.0 ports (4 x Type-A), 1x DisplayPort, 1x HDMI®port, 1x Realtek 2.5Gb Ethernet port, 5x Audio jacks, 1x BIOS FlashBack™ button |
| OS | Windows 10/11 64-bit |
| Chipset Type | AMD B650 |
| Compatible Processors | Ryzen (supports Ryzen 7000 Series) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM5 |
| Product Type | Motherboard - micro ATX |
| Bus Clock | 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 5000 MHz |
| Features | Dual channel memory architecture, AMD EXPO technology |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, on-die ECC |
| Technology | DDR5 |
| Compliant Standards | VCCI Class B ITE, JATE, WEEE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, EU REACH |
| Type | HD Audio (8-channel) |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion Slots | 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 1 x PCIe 4.0 x16 (x4 mode) | 1 x PCIe 4.0 x1 | 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Interfaces | 1 x HDMI | 1 x DisplayPort | 1 x USB-C 3.2 Gen2x2 | 2 x USB 3.2 Gen 2 | 1 x USB 3.2 Gen 1 | 4 x USB 2.0 | 2 x antenna | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x audio line-out (center/subwoofer |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header | 2 x USB 3.2 Gen 1 - header | 4 x USB 2.0 - header | 1 x audio - header | 1 x Thunderbolt - header | 1 x serial - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 | PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
| BIOS Type | AMI |
| Hardware Features | Jack retasking, ASUS Q-Design, 12+2 Phase Power Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS DIGI+ VRM, ASUS Stainless Steel Back I/O, TUF LANGuard, TUF Components, over |
| Cables Included | 2 x Serial ATA cable |
| Depth | 24.4 cm |
| Included Accessories | 2 x M.2 rubber package, M.2 screw package, TUF certification card |
| Software Included | ASUS AI Suite III, PC Cleaner, WinRAR, ASUS TUF GAMING CPU-Z, Norton AntiVirus (Trial), ASUS AURA Creator, MyAsus, Armoury Crate, ASUS Fan Xpert 2+ |
| Width | 24.4 cm |
| Service & Support | Limited warranty - 1 year |
