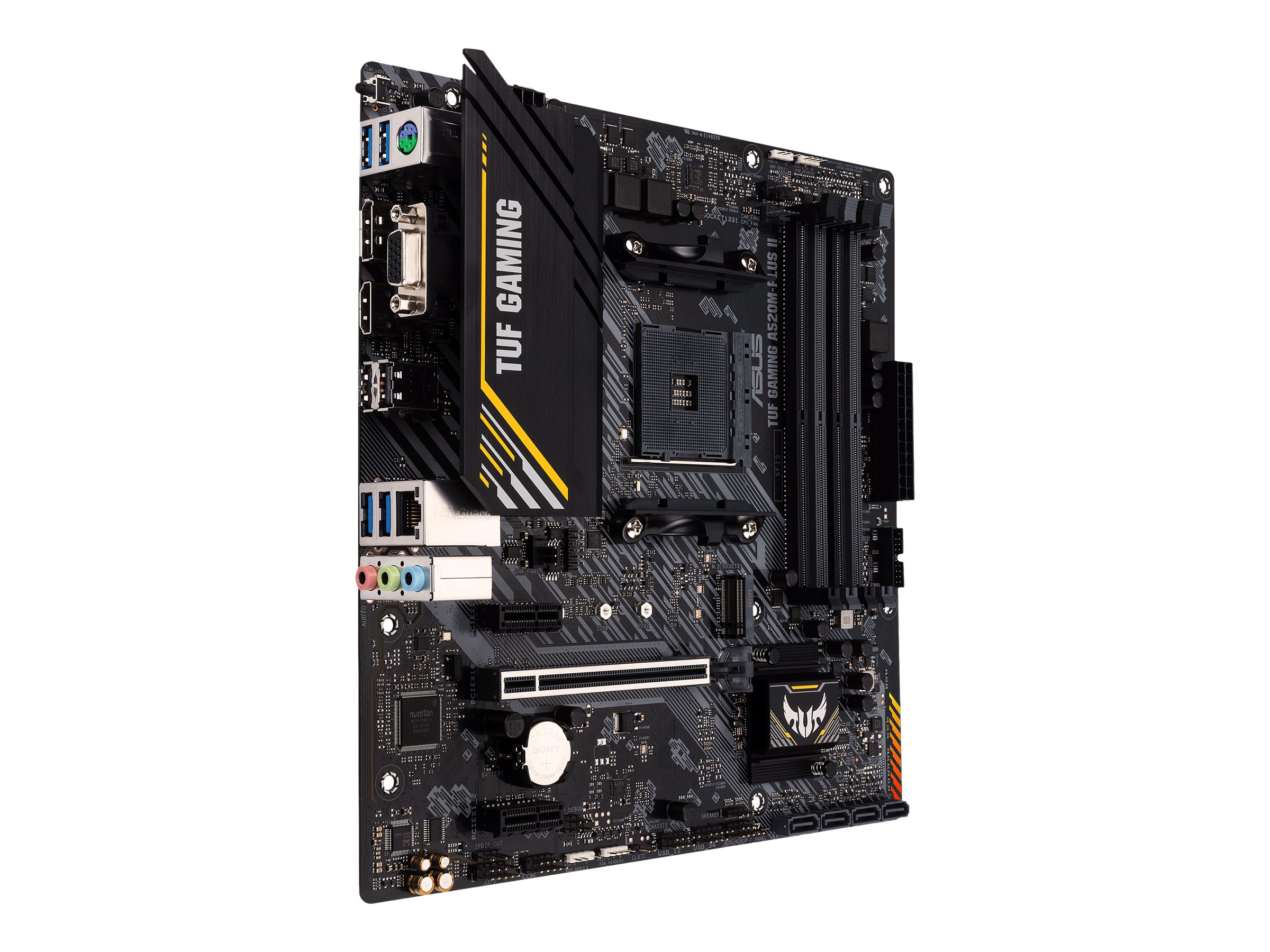

ASUS TUF GAMING A520M-PLUS II Micro-ATX AM4 AMD A520
€72,80
ASUS TUF GAMING A520M-PLUS II - Bundkort - micro ATX - Socket AM4 - AMD A520 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Availability: In stock
Secure payment · Fast delivery
EAN:4711081154457Categories:, , Brand:
ASUS TUF GAMING A520M-PLUS II - Bundkort - micro ATX - Socket AM4 - AMD A520 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Specifications
Specifications
| Produktbeskrivelse | ASUS TUF GAMING A520M-PLUS II - bundkort - micro ATX - Socket AM4 - AMD A520 |
| Produkttype | Bundkort - micro ATX |
| Chipsættype | AMD A520 |
| Processor-socket | 1 x Socket AM4 |
| Kompatible processorer | Ryzen (understøtter Ryzen 3000 Series/ 4000 G-Series/ 5000 Series) |
| Max RAM-størrelse | 128 GB |
| RAM understøttet | 4 DIMM slots - DDR4, non-ECC, ECC, not buffered |
| Lagringsporte | 4 x SATA-600 (RAID), 1 x M.2 |
| USB / FireWire porte | 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser) |
| Audio | HD Audio (8-kanaler) |
| LAN | Gigabit Ethernet |
| Chipset Type | AMD A520 |
| Compatible Processors | Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM4 |
| Product Type | Motherboard - micro ATX |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 446 |
| Features | Dual channel memory architecture |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Technology | DDR4 |
| Audio Codec | Realtek ALC887/ALC897 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 3.0 x16 | 2 x PCIe 3.0 x1 |
| Interfaces | 1 x VGA | 1 x DisplayPort | 4 x USB 3.2 Gen 1 | 1 x HDMI | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x audio line-in - mini-jack | 1 x PS/2 keyboard / mouse | 2 x USB 2.0 | 1 x LAN (Gigabit Ethernet) |
| Internal Interfaces | 4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x SPDIF out - header | 1 x serial - header | 1 x audio - header | 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
| BIOS Type | AMI |
| Hardware Features | Jack retasking, ASUS Q-Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Cables Included | 2 x Serial ATA cable |
| Depth | 24.4 cm |
| Included Accessories | 1 x M.2 screw, I/O back cover, TUF stickers, ASUS Wi-Fi moving antenna |
| Software Included | Drivers & utilities, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Update, PC Cleaner, ASUS EZ Flash 3, DAEMON Tools, WinRAR, ASUS TUF GAMING CPU-Z, Norton AntiVirus (Trial) |
| Width | 24.4 cm |
