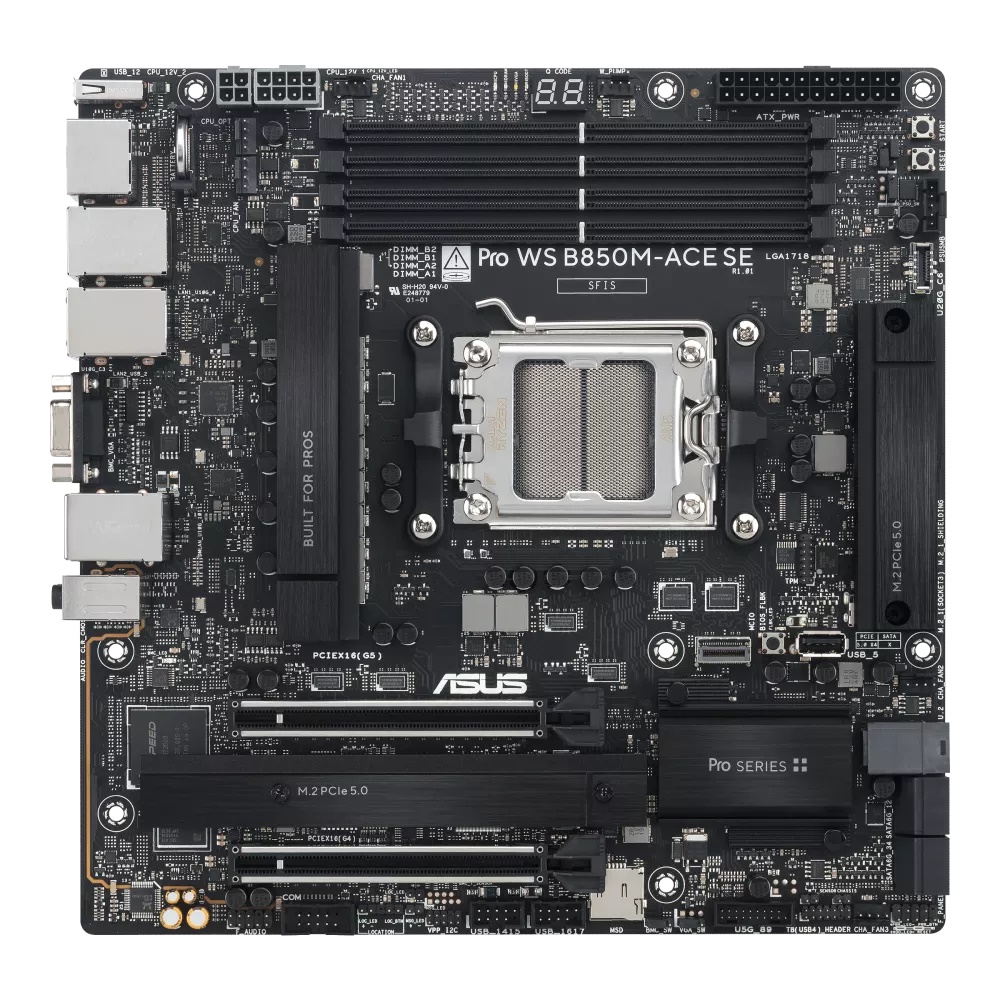

ASUS Pro WS B850M-ACE SE mATX AM5
€333,33
ASUS Pro WS B850M-ACE SE - bundkort - micro ATX - Socket AM5 - AMD B850 Chipset - USB 3.2 Gen 2x2 USB 3.2 Gen 2 - 2x Ethernet 10Gbps, 2.5Gb - IPMI 1Gb - HD Audio (8-kanaler)
Availability: In stock
Secure payment · Fast delivery
EAN:4711636258753Categories:, , Brand:
ASUS Pro WS B850M-ACE SE - bundkort - micro ATX - Socket AM5 - AMD B850 Chipset - USB 3.2 Gen 2x2 USB 3.2 Gen 2 - 2x Ethernet 10Gbps, 2.5Gb - IPMI 1Gb - HD Audio (8-kanaler)
Specifications
Specifications
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors and AMD EPYC™ 4005 Series Processors |
| Chipset | AMD B850 Chipset |
| Memory | 4x DIMM slots, max. 256GB, DDR5 (Dual channel) |
| Graphics | 1x DisplayPort 1.4, 1x VGA port from AST2600, 1x HDMI 2.1, 1x USB 10Gbps port (USB Type-C®) supports DisplayPort video output |
| Expansion Slots | 1x PCIe 5.0 x16 slot (supports x16 mode), 1x PCIe 4.0 x16 slot (supports x8/x4 mode), 1x PCIe 4.0 x16 slot (supports x4 mode) |
| Storage | 2x M.2 slots, 1x MCIO connector, 1x U.2 connector and 4x SATA 6Gb/s ports |
| Ethernet | 1x Realtek 10Gb Ethernet, 1x Intel® 2.5Gb Ethernet, 1x Realtek 1Gb Ethernet |
| USB Rear | 5x USB 10Gbps port(s) (3 x Type-A + 2 x USB Type-C®), 2x USB 2.0 port(s) (2 x Type-A) |
| USB Front | 1x USB 20Gbps (supports USB Type-C®), 1x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports, 2x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports, 1x USB 2.0 port (1 x Type-A) for BIOS FlashBack |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Back Panel I/O Ports | 3x USB 10Gbps port(s) (3 x Type-A), 1x USB 10Gbps port(s) (USB Type-C®), 1x USB 10Gbps port(s) (USB Type-C®) supports DisplayPort video output, 2x USB 2.0 port(s) (2 x Type-A), 1x DisplayPort, 1x VGA port, 1x HDMI™ port, 1x Realtek 10Gb Ethernet port, 1x Intel® 2.5Gb Ethernet ports, 1x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600), 2x Audio jacks |
| BIOS | 512 Mb Flash ROM, UEFI AMI BIOS(text-based) |
| Accessories | 2x SATA 6Gb/s cables, 1x I/O shield, 1x Q-connector, 1x M.2 rubber package(s), 1x ACC Express activation key card, 1x Quick start guide |
| Form Factor | micro-ATX Form Factor (24.4 cm x 24.4 cm) |
| IPMI | Yes - BMC AST2600 |
