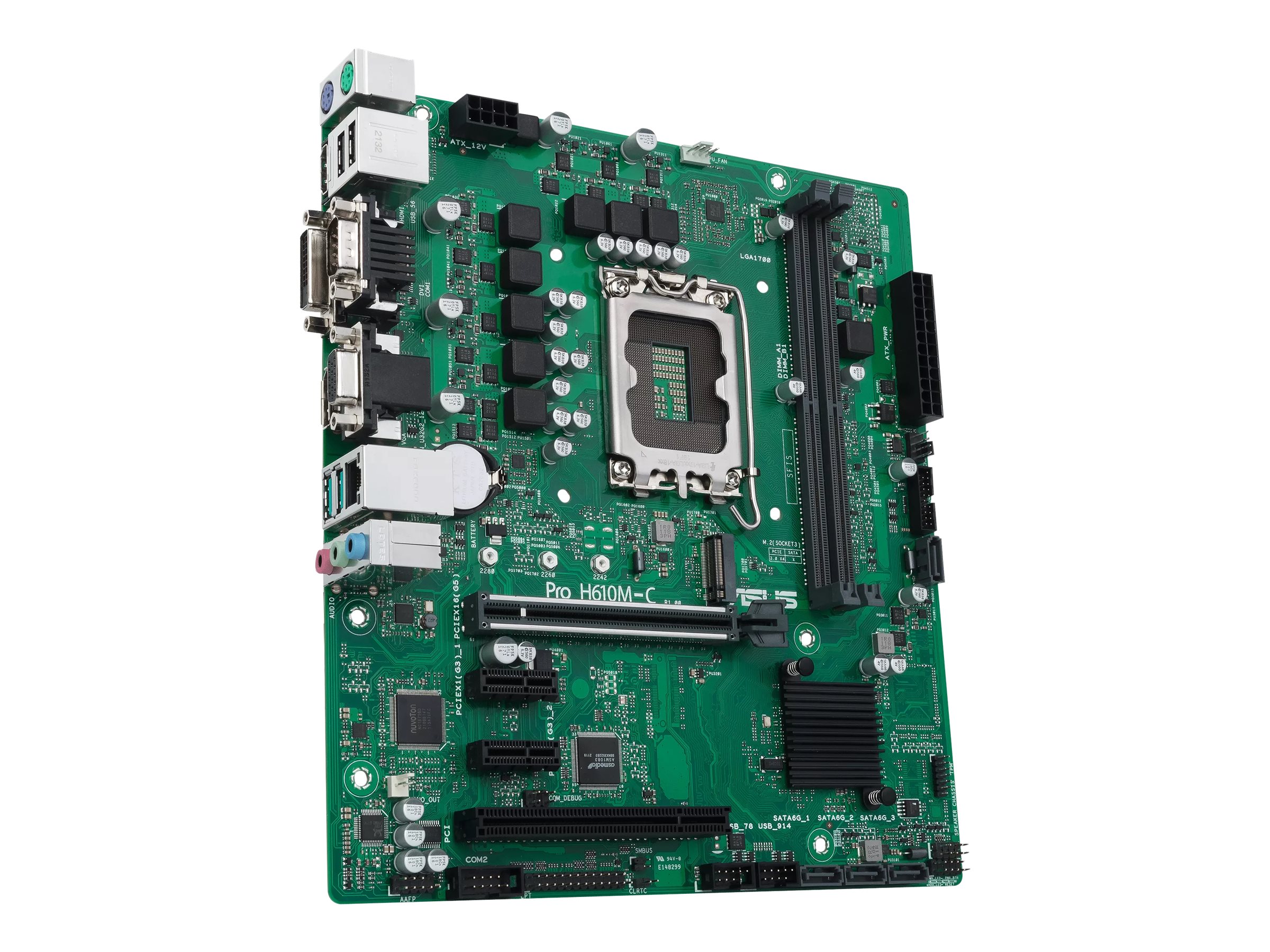

ASUS Pro H610M-C-CSM Micro-ATX LGA1700 Intel H610
€96,60
ASUS Pro H610M-C-CSM - Bundkort - micro ATX - LGA1700 sokkel - H610 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Availability: In stock
Secure payment · Fast delivery
EAN:4711081655152Categories:, , Brand:
ASUS Pro H610M-C-CSM - Bundkort - micro ATX - LGA1700 sokkel - H610 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Specifications
Specifications
| Produktbeskrivelse | ASUS Pro H610M-C-CSM - bundkort - micro ATX - LGA1700 sokkel - H610 |
| Produkttype | Bundkort - micro ATX |
| Chipsættype | Intel H610 |
| Processor-socket | 1 x LGA1700 sokkel |
| Kompatible processorer | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM-størrelse | 64 GB |
| RAM understøttet | 2 DIMM slots - DDR5, ikke-ECC, ikke bufferet |
| Lagringsporte | 4 x SATA-600, 1 x M.2 |
| USB / FireWire porte | 2 x USB 3.2 Gen 2 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser) |
| Audio | HD Audio (8-kanaler) |
| LAN | Gigabit Ethernet |
| Chipset Type | Intel H610 |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1700 Socket |
| Product Type | Motherboard - micro ATX |
| Bus Clock | 4800 MHz |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Max Size | 64 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR5 |
| Compliant Standards | FCC, RoHS, NIST SP800-147 |
| Type | HD Audio (8-channel) |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU | 2 x DIMM 288-pin | 1 x PCIe 5.0 x16 | 2 x PCIe 3.0 x1 | 1 x PCI |
| Interfaces | 1 x HDMI | 1 x VGA | 2 x USB 3.2 Gen 2 | 2 x USB 2.0 | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x audio line-in - mini-jack | 1 x PS/2 keyboard | 1 x DisplayPort | 1 x PS/2 mouse | 1 x LAN (Gigabit Ethernet) | 1 x DVI-D | 1 x s |
| Internal Interfaces | 4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 2 x audio - header | 1 x serial - header | 1 x speaker - header | 1 x parallel - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA | PCIe 3.0 -connectors: 1 x M.2 |
| Hardware Features | Jack retasking, ASUS EZ DIY, audio jack detect technology, Intel Turbo Boost Technology 2.0, Preboot eXecution Environment (PXE), overcurrent protection, LANGuard, Moistureproof PCB, Intel Turbo Boost Max Technology 3.0, ASUS Self Recovering BIOS, AS |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Cables Included | 2 x Serial ATA cable |
| Depth | 22 cm |
| Included Accessories | 1 x M.2 screw, IO shield, ACC Express Activation Key Card |
| Software Included | Drivers & utilities, ASUS Control Center Express |
| Width | 24.4 cm |
