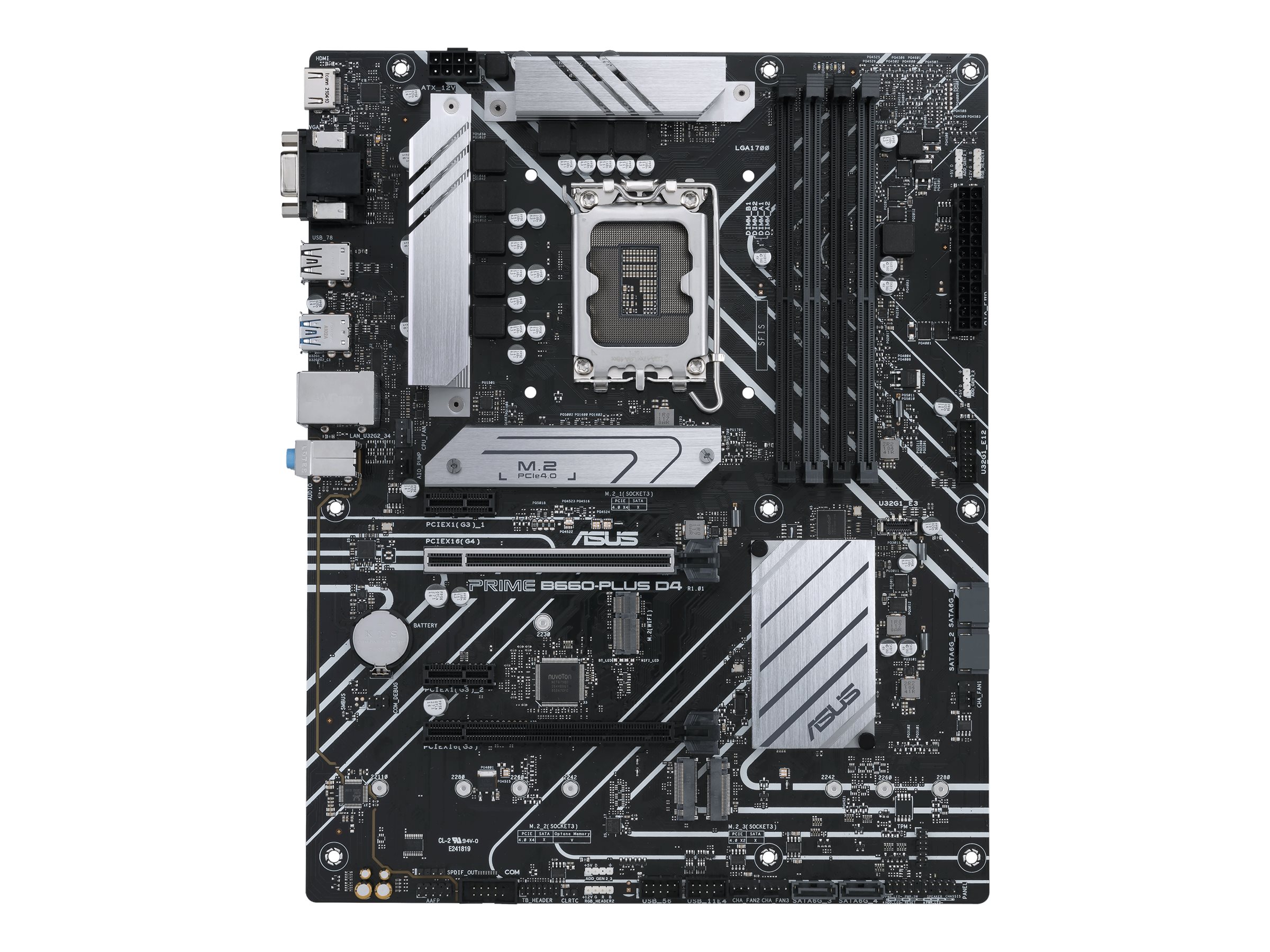

ASUS PRIME B660-PLUS D4 ATX LGA1700 Intel B660
€104,04
ASUS PRIME B660-PLUS D4 - Bundkort - ATX - LGA1700 sokkel - B660 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Availability: In stock
Secure payment · Fast delivery
EAN:4711081523017Categories:, , Brand:
ASUS PRIME B660-PLUS D4 - Bundkort - ATX - LGA1700 sokkel - B660 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Specifications
Specifications
| Produktbeskrivelse | ASUS PRIME B660-PLUS D4 - bundkort - ATX - LGA1700 sokkel - B660 |
| Produkttype | Bundkort - ATX |
| Chipsættype | Intel B660 |
| Processor-socket | 1 x LGA1700 sokkel |
| Kompatible processorer | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM-størrelse | 128 GB |
| RAM understøttet | 4 DIMM slots - DDR4, non-ECC, not buffered |
| Lagringsporte | 4 x SATA-600 (RAID), 3 x M.2 |
| USB / FireWire porte | 1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser) |
| Audio | HD Audio (8-kanaler) |
| LAN | 2.5 Gigabit Ethernet |
| Chipset Type | Intel B660 |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1700 Socket |
| Product Type | Motherboard - ATX |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5000 MHz ( |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR4 |
| Compliant Standards | VCCI Class B ITE, JATE, WEEE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, EU REACH |
| Type | HD Audio (8-channel) |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion Slots | 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 1 x PCIe 3.0 x16 (x4 mode) | 2 x PCIe 3.0 x1 | 1 x M.2 socket (Key E) | 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) | 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) |
| Interfaces | 1 x HDMI | 1 x DisplayPort | 1 x VGA | 1 x LAN (2.5Gigabit Ethernet) | 1 x USB-C 3.2 Gen2x2 | 2 x USB 2.0 | 2 x USB 3.2 Gen 2 | 1 x USB 3.2 Gen 1 | 1 x microphone - mini-jack | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack |
| Internal Interfaces | 4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x USB-C 3.2 Gen 1 - header | 1 x audio - header | 1 x serial - header | 1 x Thunderbolt - header | 1 x SPDIF out - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| RAID Features | Intel Rapid Storage Technology |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 4.0 -connectors: 3 x M.2 |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
| BIOS Type | AMI |
| Hardware Features | Jack retasking, ASUS Q-Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurre |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Cables Included | 2 x Serial ATA cable |
| Depth | 24.4 cm |
| Included Accessories | I/O back plate, 3 x M.2 screws, 1 x M.2 rubber package |
| Software Included | ASUS CPU-Z, ASUS AI Suite III, WinRAR, Norton AntiVirus (Trial), ASUS AURA Creator, ASUS Fan Xpert 2+ |
| Width | 30.5 cm |
