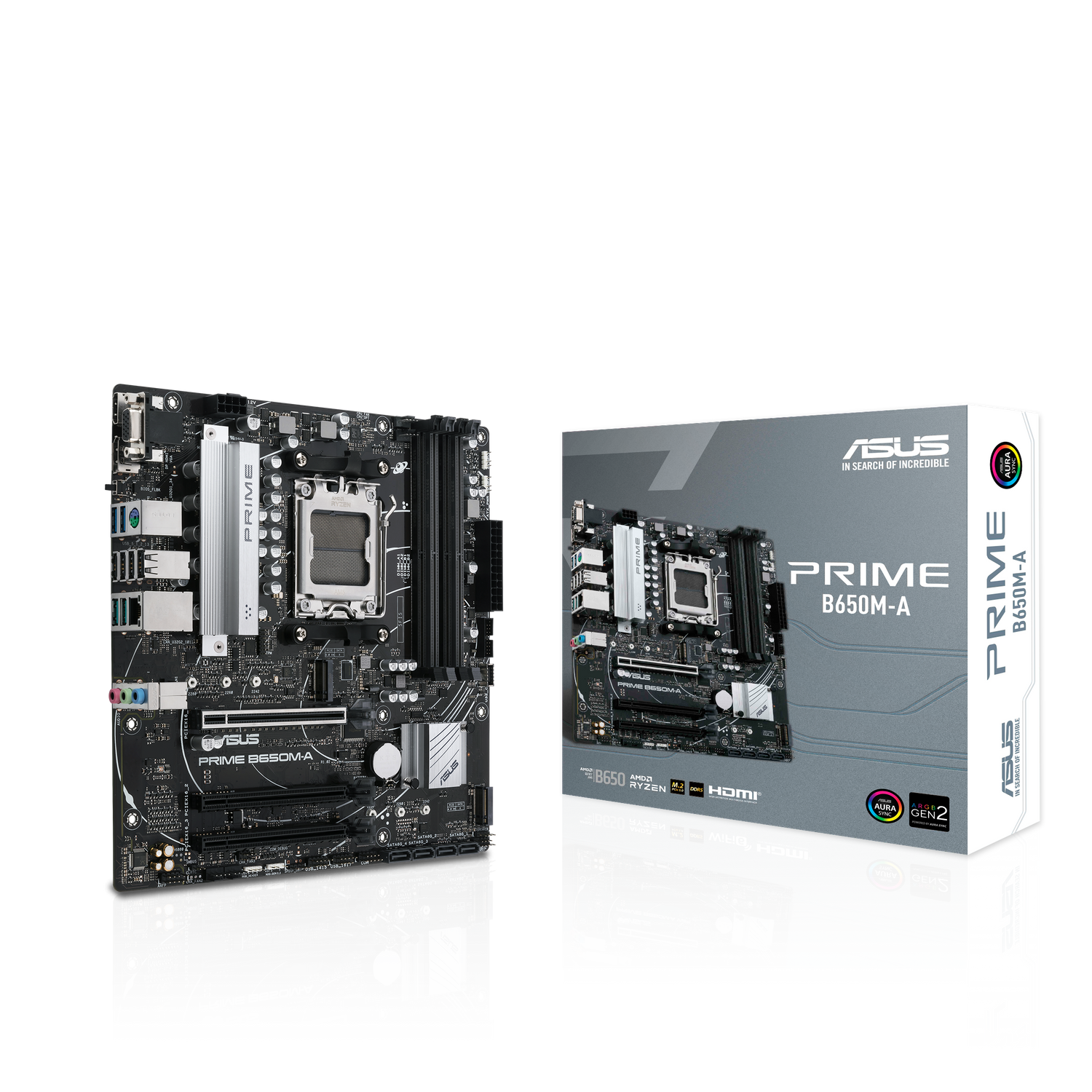

Asus Prime B650M-A, AM5 MicroATX DDR5
€182,84
Asus Prime B650M-A, AM5 MicroATX DDR5
Availability: In stock
Secure payment · Fast delivery
EAN:4711081936305Categories:, , Brand:
Asus Prime B650M-A, AM5 MicroATX DDR5
Specifications
Specifications
| Formfaktor | MicroATX |
| Socket | AM5 |
| Chipsæt | AMD B650 |
| RAM | 4 slots, DDR5, 5600MHz, Maks. 128GB |
| Lyd | ALC892, 24-Bit/192 kHz playback |
| I/O Porte | 2x USB 3.2 Gen 2 ports (2x Type-A), 2x USB 3.2 Gen 1 ports (2x Type-A), 4x USB 2.0 ports (4x Type-A), 1x DisplayPort, 1x VGA port, 1x HDMI® port, 1x Realtek 2.5Gb Ethernet port, 3x Audio jacks, 1x BIOS FlashBack™ button, 1x PS/2 Keyboard/Mouse combo port |
| OS | Windows 10/11 64-bit |
| Chipset Type | AMD B650 |
| Compatible Processors | Ryzen (supports Ryzen 7000 Series) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM5 |
| Product Type | Motherboard - micro ATX |
| Bus Clock | 5400 MHz (O.C.), 5600 MHz (O.C.), 4800 MHz, 5200 MHz, 5000 MHz |
| Features | Dual channel memory architecture, AMD EXPO technology |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, on-die ECC |
| Technology | DDR5 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion Slots | 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 2 x PCIe 4.0 x16 (x1 mode) | 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Interfaces | 1 x HDMI | 1 x DisplayPort | 1 x VGA | 2 x USB 3.2 Gen 2 | 2 x USB 3.2 Gen 1 | 4 x USB 2.0 | 1 x LAN (2.5Gigabit Ethernet) | 1 x audio line-out - mini-jack | 1 x audio line-in - mini-jack | 1 x microphone - mini-jack | 1 x PS/2 keyboard / mouse |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header | 2 x USB 3.2 Gen 1 - header | 4 x USB 2.0 - header | 1 x serial - header | 1 x audio - header | 1 x SPDIF out - header | 1 x speaker - header | 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| RAID Features | AMD RAID Xpert2 Technology |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 | PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
| BIOS Type | AMI |
| Hardware Features | Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS DIGI+ VRM, ASUS Stainless Steel Back I/O, LANGuard, overvoltage protection, ASUS 5X Protection III, ASUS Aura Sync, ASUS OptiMem II, ASUS |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Depth | 24.4 cm |
| Software Included | Armoury Crate, ASUS Fan Xpert 2+ |
| Width | 24.4 cm |
