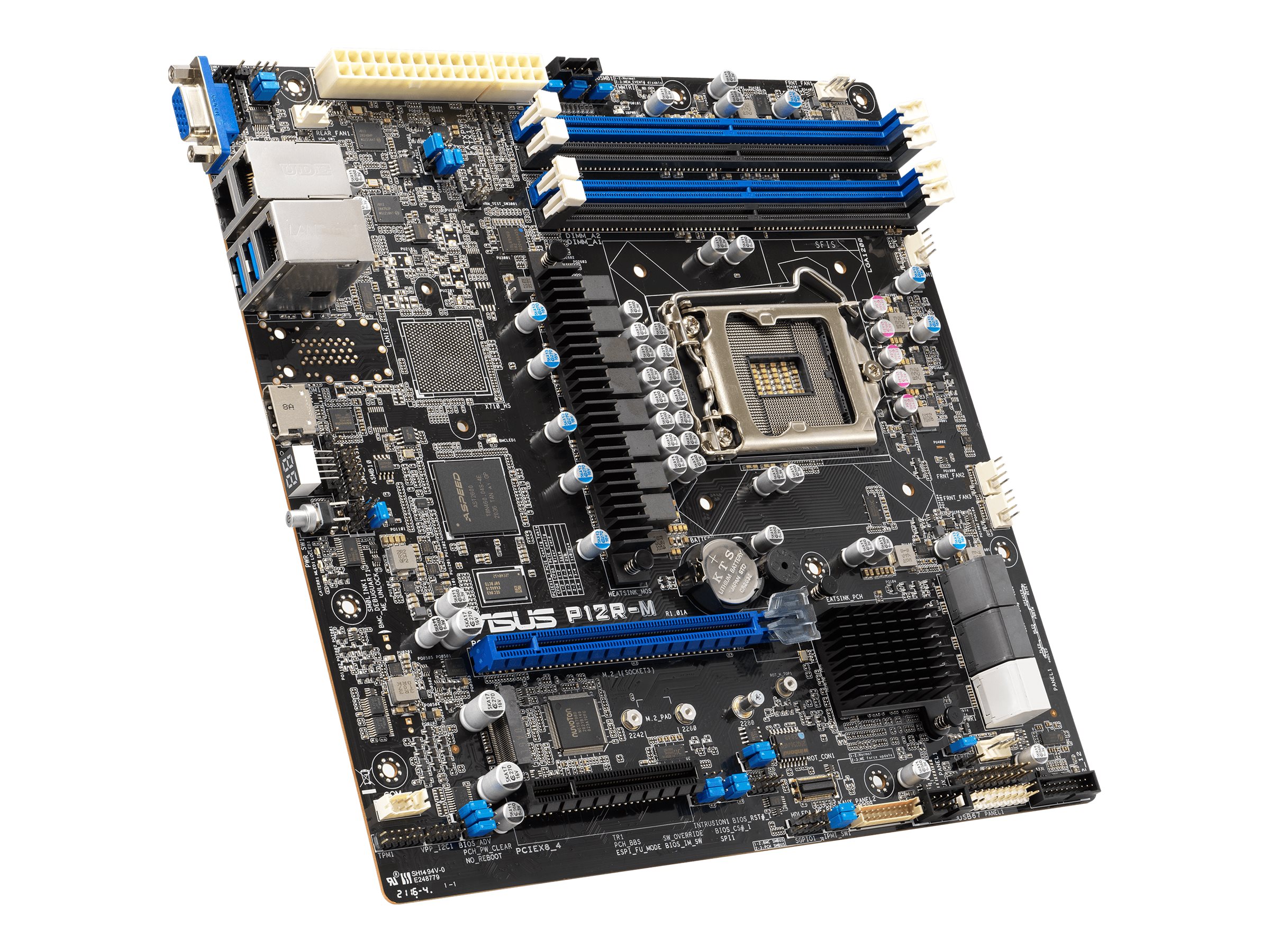

ASUS P12R-M Micro-ATX LGA1200 Intel C252
€283,36
ASUS P12R-M - Bundkort - micro ATX - LGA1200 sokkel - C252 Chipset - USB 3.2 Gen 2 - 2 x Gigabit LAN - onboard grafik
Availability: In stock
Secure payment · Fast delivery
EAN:4711081684749Categories:, , Brand:
ASUS P12R-M - Bundkort - micro ATX - LGA1200 sokkel - C252 Chipset - USB 3.2 Gen 2 - 2 x Gigabit LAN - onboard grafik
Specifications
Specifications
| Produktbeskrivelse | ASUS P12R-M - bundkort - micro ATX - LGA1200 sokkel - C252 |
| Produkttype | Bundkort - micro ATX |
| Chipsættype | Intel C252 |
| Processor-socket | 1 x LGA1200 sokkel |
| Kompatible processorer | Pentium, Xeon E |
| Max RAM-størrelse | 128 GB |
| RAM understøttet | 4 DIMM slots - DDR4 not buffered |
| Lagringsporte | 6 x SATA-600 (RAID), 1 x M.2 |
| USB / FireWire porte | 2 x USB 3.2 Gen 2 + (2 x USB 3.2 Gen 2 + 2 x USB 2.0 via samlekasser) |
| Grafik | ASPEED AST2600 |
| Dedikeret videohukommelse | 64 MB |
| LAN | 2 x Gigabit Ethernet |
| Chipset Type | Intel C252 |
| Compatible Processors | Pentium, Xeon E |
| Max Processors Qty | 1 |
| Processor Socket | LGA1200 Socket |
| Product Type | Motherboard - micro ATX |
| Bus Clock | 2666 MHz, 2933 MHz, 3200 MHz |
| Features | Dual channel memory architecture |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Technology | DDR4 |
| Dedicated Video Memory | 64 MB |
| Graphics Controller | ASPEED AST2600 |
| Network Controller | 2 x Intel I210AT |
| Network Interfaces | 2 x Gigabit Ethernet |
| Expansion Slots | 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 1 x PCIe 4.0 x8 (x4 mode) |
| Interfaces | 2 x LAN (Gigabit Ethernet) | 1 x VGA | 1 x HDMI | 2 x USB 3.2 Gen 2 |
| Internal Interfaces | 2 x USB 2.0 - header | 1 x serial - header | 2 x USB 3.2 Gen 2 - header | 1 x VGA - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe -connectors: 1 x M.2 |
| Hardware Features | Platform Firmware Resilience (PFR) |
| Hardware Monitoring | CPU core temperature, CPU fan tachometer, chassis fan tachometer |
| Depth | 24.4 cm |
| Included Accessories | I/O back cover |
| Software Included | Drivers & utilities |
| Width | 24.4 cm |
