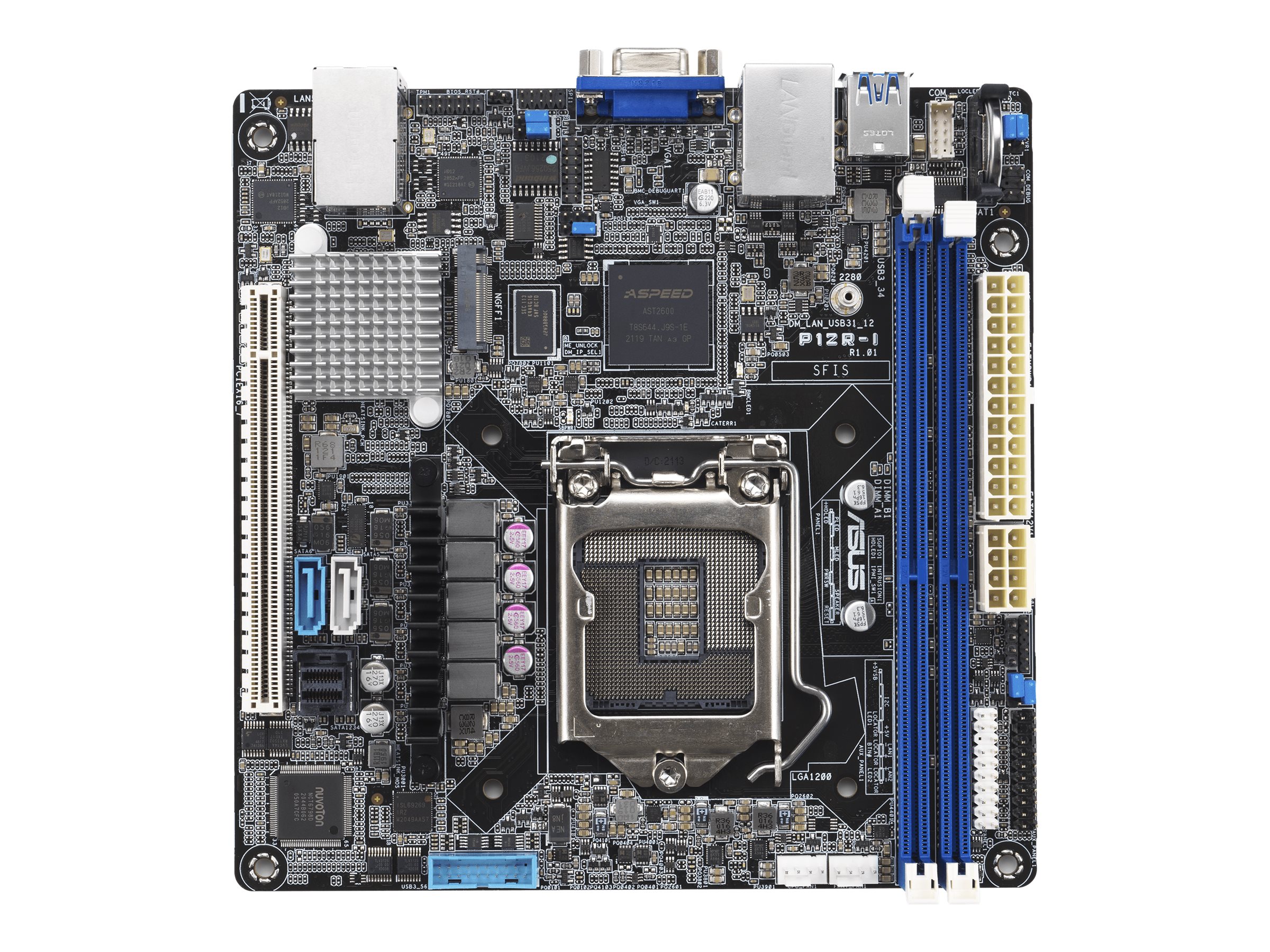

ASUS P12R-I Mini ITX LGA1200 Intel C252
€241,88
ASUS P12R-I - Bundkort - mini ITX - LGA1200 sokkel - C252 Chipset - USB 3.2 Gen 1 - 2 x Gigabit LAN - onboard grafik
Availability: In stock
Secure payment · Fast delivery
EAN:4711081507604Categories:, , Brand:
ASUS P12R-I - Bundkort - mini ITX - LGA1200 sokkel - C252 Chipset - USB 3.2 Gen 1 - 2 x Gigabit LAN - onboard grafik
Specifications
Specifications
| Produktbeskrivelse | ASUS P12R-I - bundkort - mini ITX - LGA1200 sokkel - C252 |
| Produkttype | Bundkort - mini ITX |
| Chipsættype | Intel C252 |
| Processor-socket | 1 x LGA1200 sokkel |
| Kompatible processorer | Pentium, Xeon E |
| Max RAM-størrelse | 64 GB |
| RAM understøttet | 2 DIMM slots - DDR4, ECC, ikke bufferet |
| Lagringsporte | 1 x Mini-SAS HD, 2 x SATA-600, 1 x M.2 |
| USB / FireWire porte | 4 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 via samlekasser) |
| Grafik | ASPEED AST2600 |
| Dedikeret videohukommelse | 64 MB |
| LAN | 2 x Gigabit Ethernet |
| Chipset Type | Intel C252 |
| Compatible Processors | Pentium, Xeon E |
| Max Processors Qty | 1 |
| Processor Socket | LGA1200 Socket |
| Product Type | Motherboard - mini ITX |
| Bus Clock | 2666 MHz, 2933 MHz, 3200 MHz |
| Features | Dual channel memory architecture |
| Max Size | 64 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | ECC |
| Technology | DDR4 |
| Dedicated Video Memory | 64 MB |
| Graphics Controller | ASPEED AST2600 |
| Network Controller | 2 x Intel I210AT |
| Network Interfaces | 2 x Gigabit Ethernet |
| Expansion Slots | 1 x CPU | 2 x DIMM 288-pin | 1 x PCIe 4.0 x16 |
| Interfaces | 2 x LAN (Gigabit Ethernet) | 1 x management | 1 x VGA | 4 x USB 3.2 Gen 1 |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header | 1 x VGA - header | 1 x serial - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 2 x 7pin SATA, 1 x mini-SAS HD - 6 devices | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 |
| Hardware Monitoring | CPU core temperature, fan control |
| Depth | 16.5 cm |
| Included Accessories | I/O back cover, ASUS ASMB10-IKVM management card |
| Width | 16.5 cm |
