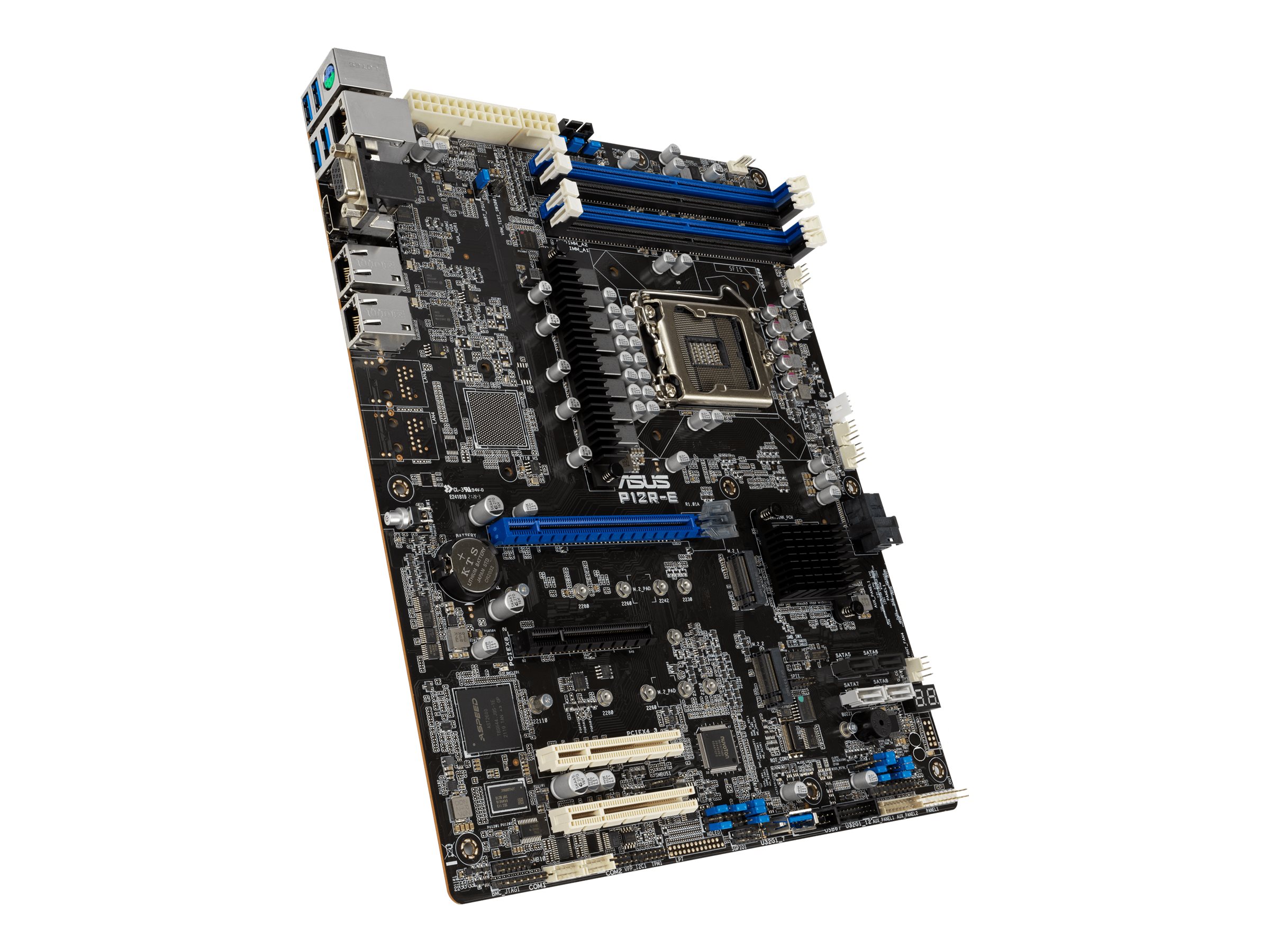

ASUS P12R-E ATX LGA1200 Intel C256
€318,84
ASUS P12R-E - Bundkort - ATX - LGA1200 sokkel - C256 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - 2 x 10 Gigabit LAN - onboard grafik
Availability: In stock
Secure payment · Fast delivery
EAN:4711081420217Categories:, , Brand:
ASUS P12R-E - Bundkort - ATX - LGA1200 sokkel - C256 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - 2 x 10 Gigabit LAN - onboard grafik
Specifications
Specifications
| Produktbeskrivelse | ASUS P12R-E - bundkort - ATX - LGA1200 sokkel - C256 |
| Produkttype | Bundkort - ATX |
| Chipsættype | Intel C256 |
| Processor-socket | 1 x LGA1200 sokkel |
| Kompatible processorer | Pentium, Xeon E |
| Max RAM-størrelse | 128 GB |
| RAM understøttet | 4 DIMM slots - DDR4 not buffered |
| Lagringsporte | 1 x Mini-SAS HD, 4 x SATA-600, 1 x M.2 |
| USB / FireWire porte | 2 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 via samlekasser) |
| Grafik | ASPEED AST2600 |
| Dedikeret videohukommelse | 64 MB |
| LAN | 2 x 10 Gigabit Ethernet |
| Chipset Type | Intel C256 |
| Compatible Processors | Pentium, Xeon E |
| Max Processors Qty | 1 |
| Processor Socket | LGA1200 Socket |
| Product Type | Motherboard - ATX |
| Bus Clock | 2666 MHz, 2933 MHz, 3200 MHz |
| Features | Dual channel memory architecture |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Technology | DDR4 |
| Dedicated Video Memory | 64 MB |
| Graphics Controller | ASPEED AST2600 |
| Network Controller | 2 x Intel I210AT |
| Network Interfaces | 2 x 10 Gigabit Ethernet |
| Expansion Slots | 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 (x16 mode (x8 mode if PCI Express 4.0 x8 slot is occupied)) | 1 x PCIe 4.0 x8 | 2 x PCIe 3.0 x8 (x4 mode) |
| Interfaces | 2 x LAN (Gigabit Ethernet) | 1 x management | 1 x HDMI | 1 x VGA | 1 x PS/2 keyboard / mouse | 2 x USB 3.2 Gen 1 | 2 x USB 3.1 Gen 2 |
| Internal Interfaces | 1 x serial - header | 2 x USB 3.2 Gen 1 - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin SATA, 1 x mini-SAS HD - 8 devices | SATA-600 / PCIe 4.0 -connectors: 2 x M.2 |
| Depth | 24.4 cm |
| Included Accessories | I/O back cover |
| Weight | 760 g |
| Width | 30.5 cm |
| Shipping Weight | 1.3 kg |
