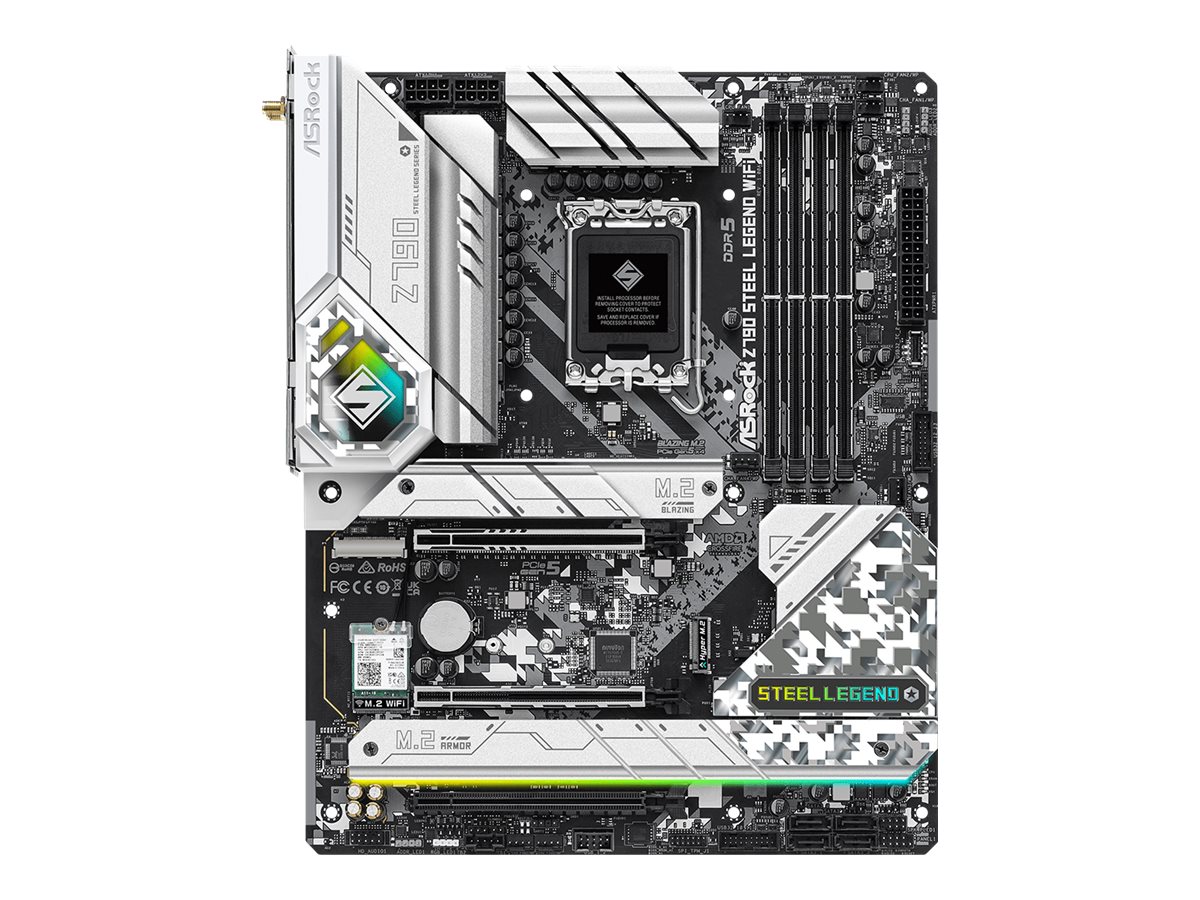

ASRock Z790 Steel Legend WiFi ATX LGA1700 Intel Z790
€221,87
ASRock Z790 Steel Legend WiFi - Bundkort - ATX - LGA1700 sokkel - Z790 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi 6E - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Availability: In stock
Secure payment · Fast delivery
EAN:4710483940859Categories:, , Brand:
ASRock Z790 Steel Legend WiFi - Bundkort - ATX - LGA1700 sokkel - Z790 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi 6E - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Specifications
Specifications
| Produktbeskrivelse | ASRock Z790 Steel Legend WiFi - bundkort - ATX - LGA1700 sokkel - Z790 |
| Produkttype | Bundkort - ATX |
| Chipsættype | Intel Z790 |
| Processor-socket | 1 x LGA1700 sokkel |
| Kompatible processorer | (supports 12th and 13th Generation Intel Core) |
| Max RAM-størrelse | 128 GB |
| RAM understøttet | 4 DIMM slots - DDR5, non-ECC, not buffered |
| Lagringsporte | 8 x SATA-600 (RAID), 4 x Hyper M.2, 1 x Blazing M.2 |
| USB / FireWire porte | 1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 2 + 8 x USB 3.2 Gen 1 + (1 x USB-C 3.2 Gen 2x2 + 8 x USB 3.2 Gen 1 + 3 x USB 2.0 via samlekasser) |
| Audio | HD Audio (8-kanaler) |
| LAN | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Chipset Type | Intel Z790 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1700 Socket |
| Product Type | Motherboard - ATX |
| Bus Clock | 4800 MHz (O.C.), 5600 MHz (O.C.), 6000 MHz (O.C.), 4000 MHz, 4800 MHz, 3600 MHz, 4400 MHz, 7200 MHz (O.C.) |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR5 |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | FCC, EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3, CEC Tier II |
| Type | HD Audio (8-channel) |
| Network Controller | Dragon RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion Slots | 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 5.0 x16 (slot converts to x8 mode when SSD is installed in 2nd M.2 slot) | 1 x PCIe 4.0 x16 (x4 mode) | 1 x PCIe 3.0 x16 (x2 mode) | 1 x M.2 socket (2230 M.2 Key E slot) | 3 x M.2 socket (2260/2280 M.2 Key M slot |
| Interfaces | 1 x HDMI | 1 x DisplayPort | 1 x USB-C 3.2 Gen 2 | 1 x USB 3.2 Gen 2 | 8 x USB 3.2 Gen 1 | 2 x antenna | 1 x audio line-out (back surround) - mini-jack | 1 x microphone - mini-jack | 1 x audio line-in - mini-jack | 1 x audio line-out (front surround) |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2x2 - header | 4 x USB 3.2 Gen 1 - header | 3 x USB 2.0 - header | 1 x audio - header | 1 x Thunderbolt - header | 1 x SPI - header | 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Storage Interfaces | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 | PCIe 4.0 -connectors: 4 x M.2 - RAID 0 / RAID 1 / RAID 5 |
| BIOS Features | UEFI BIOS |
| BIOS Type | AMI |
| Hardware Features | ASRock Instant Flash, 15µ Gold Contact, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, 6 Layer PCB, ASRock EZ Mode, Nichicon 12K Black Caps, 2oz Copper PCB, Water Pump Header, pre-mounted I/O shield, Intel Turbo Boost M |
| Cables Included | 2 x Serial ATA cable |
| Depth | 24.4 cm |
| Included Accessories | 4 x M.2 screws, ASRock graphics card holder., ASRock WiFi 2.4/5/6 GHz antenna |
| Software Included | ASRock A-Tuning, ASRock Dragon 2.5G LAN Software |
| Width | 30.5 cm |
