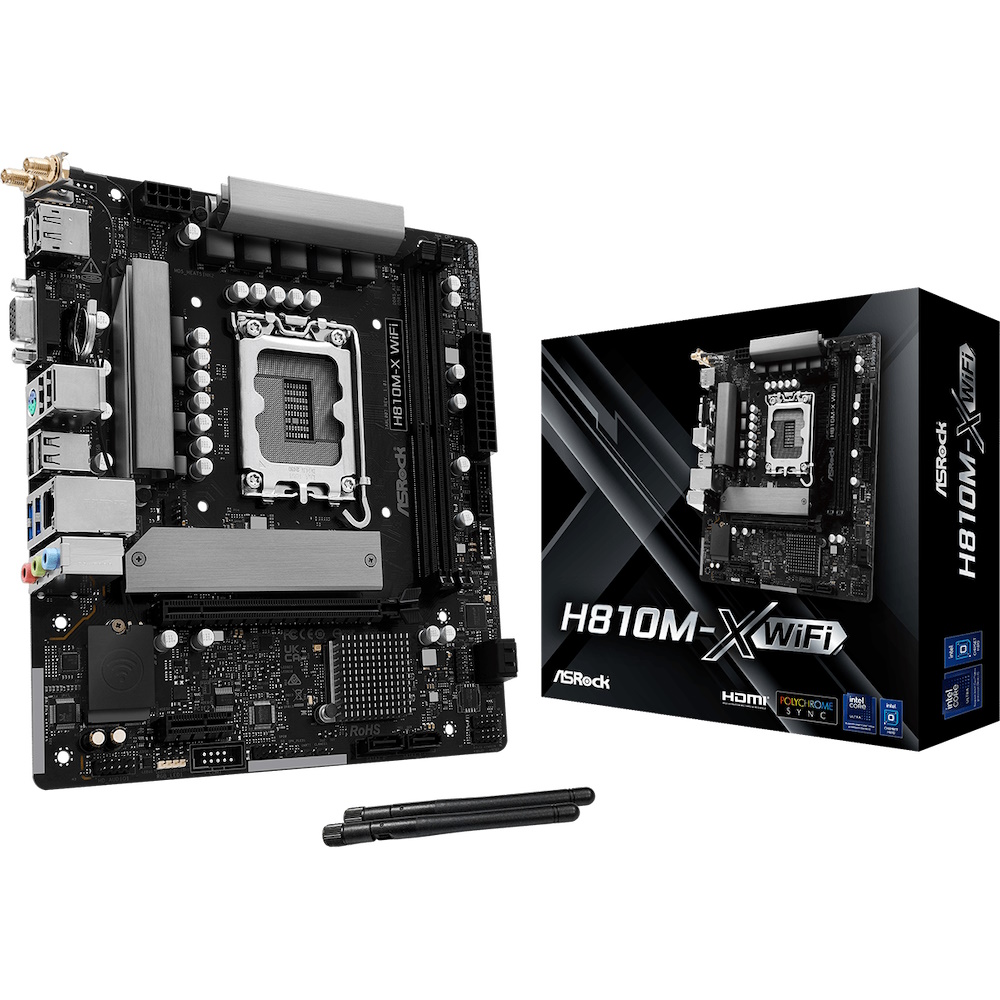

ASRock H810M-X WiFi Micro-ATX LGA1851
€77,71
ASRock H810M-X WiFi - bundkort - micro ATX - LGA1851 sokkel - H810 Chipset - USB 3.2 Gen 1 - Gigabit LAN - Wi-Fi 6 - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Availability: In stock
Secure payment · Fast delivery
EAN:4711581490659Categories:, , Brand:
ASRock H810M-X WiFi - bundkort - micro ATX - LGA1851 sokkel - H810 Chipset - USB 3.2 Gen 1 - Gigabit LAN - Wi-Fi 6 - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Specifications
Specifications
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851) |
| Chipset | Intel H810 |
| Memory | 2x DDR5 DIMM Slots, up to 6400, 128GB maks |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | 1x HDMI 2.1, 1x DisplayPort 1.4 with DSC, 1x D-Sub |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | 2.5 Dragon RTL8125BG Gigabit LAN 10/100/1000/2500 Mb/s |
| Wireless LAN | 802.11ac Wi-Fi Module, Bluetooth 5.0 |
| Slots | 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode, 1 x PCIe 4.0 x1 Slot (PCIE2), 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Storage | 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, 4 x SATA3 6.0 Gb/s Connectors |
| USB | 1 x USB 3.2 Gen1 Type-C (Front), 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front), 6 x USB 2.0 (4 Rear, 2 Front) |
| Rear Panel I/O | 2 x Antenna Ports, 1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port, 1 x HDMI Port, 1 x DisplayPort 1.4, 2 x USB 3.2 Gen1 Ports, 4 x USB 2.0 Ports, 1 x RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone |
| Accessories | 1 x I/O Shield, 2 x SATA Data Cables, 2 x ASRock WiFi 2.4/5 GHz Antennas |
| Form Factor | Micro ATX Form Factor, 22.0 cm x 19.3 cm |
| Power Phase | 6+1+1+1+1 |
| Certifications | FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required) |
