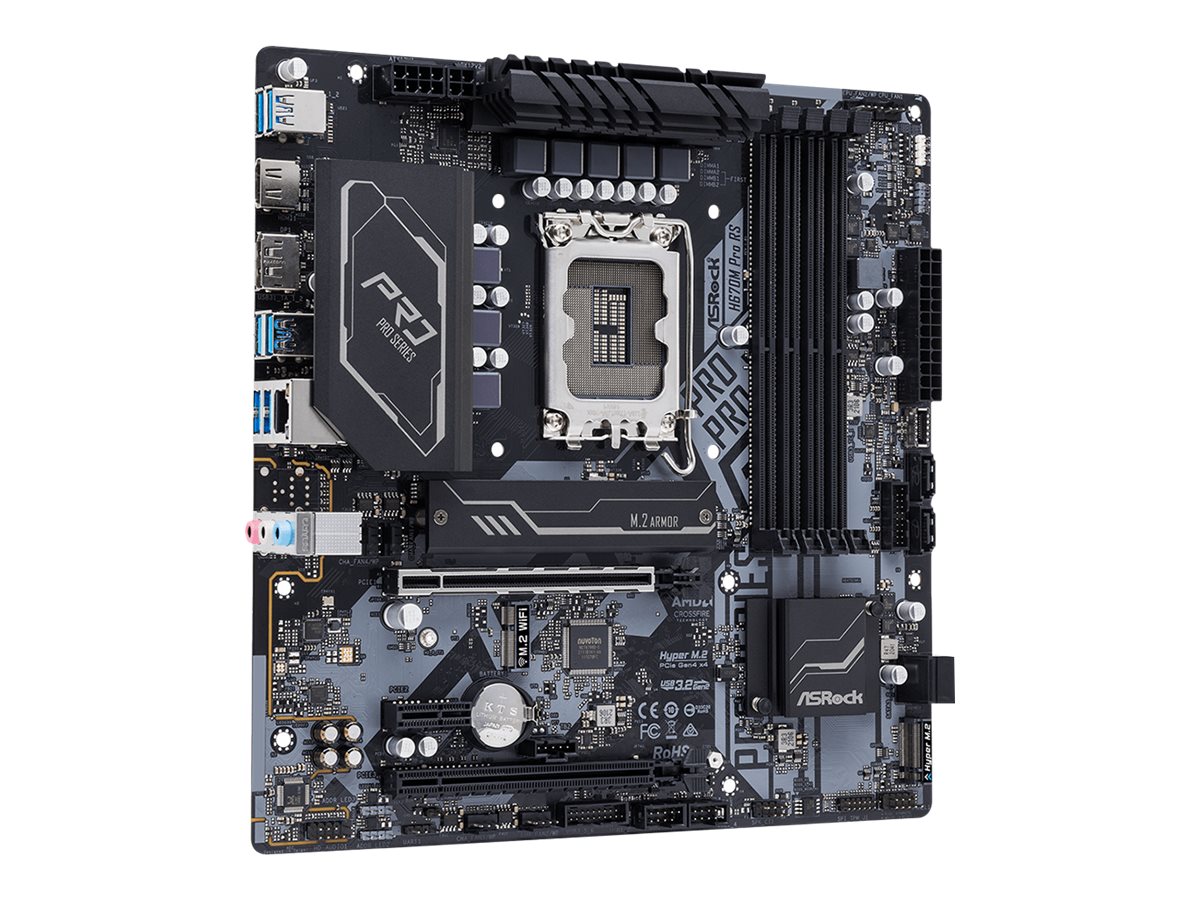

ASRock H670M Pro RS Micro-ATX LGA1700 Intel H670
€79,32
ASRock H670M Pro RS - Bundkort - micro ATX - LGA1700 sokkel - H670 Chipset - USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Availability: In stock
Secure payment · Fast delivery
EAN:4710483936555Categories:, , Brand:
ASRock H670M Pro RS - Bundkort - micro ATX - LGA1700 sokkel - H670 Chipset - USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Specifications
Specifications
| Produktbeskrivelse | ASRock H670M Pro RS - bundkort - micro ATX - LGA1700 sokkel - H670 |
| Produkttype | Bundkort - micro ATX |
| Chipsættype | Intel H670 |
| Processor-socket | 1 x LGA1700 sokkel |
| Kompatible processorer | (supports 12th Generation Intel Core) |
| Max RAM-størrelse | 128 GB |
| RAM understøttet | 4 DIMM slots - DDR4, non-ECC, ECC (operation in non-ECC mode), not buffered |
| Lagringsporte | 4 x SATA-600 (RAID), 2 x Hyper M.2 |
| USB / FireWire porte | 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (1 x USB-C Gen 1 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser) |
| Audio | HD Audio (8-kanaler) |
| LAN | Gigabit Ethernet |
| Chipset Type | Intel H670 |
| Compatible Processors | (supports 12th Generation Intel Core) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1700 Socket |
| Product Type | Motherboard - micro ATX |
| Bus Clock | 4800 MHz (O.C.) |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Technology | DDR4 |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | FCC, EuP Ready, ErP Ready |
| Type | HD Audio (8-channel) |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 1 x PCIe 3.0 x1 | 1 x M.2 socket (Key E) | 1 x PCIe 3.0 x16 (x4 mode) |
| Interfaces | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x HDMI | 1 x LAN (Gigabit Ethernet) | 1 x DisplayPort | 2 x USB 3.2 Gen 2 | 4 x USB 3.2 Gen 1 |
| Internal Interfaces | 4 x USB 3.2 Gen 1 - header | 1 x audio - header | 1 x Thunderbolt - header | 1 x USB-C Gen 1 - header | 4 x USB 2.0 - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 | PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| BIOS Features | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
| BIOS Type | AMI |
| Hardware Features | ASRock Instant Flash, 7 Phase Power Design, AMD CrossFireX technology support, ASRock Internet Flash, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock A-Tuning, ASRock Full Spike Protection, ASRock APP Sh |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, opened case detection |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Cables Included | 2 x Serial ATA cable |
| Depth | 24.4 cm |
| Included Accessories | I/O back plate, 3 x M.2 screws, standoff for M.2 socket |
| Software Included | Drivers & utilities, ASRock A-Tuning, Antivirus (Trial version), ASRock XFast LAN, ASRock Polychrome SYNC |
| Width | 24.4 cm |
