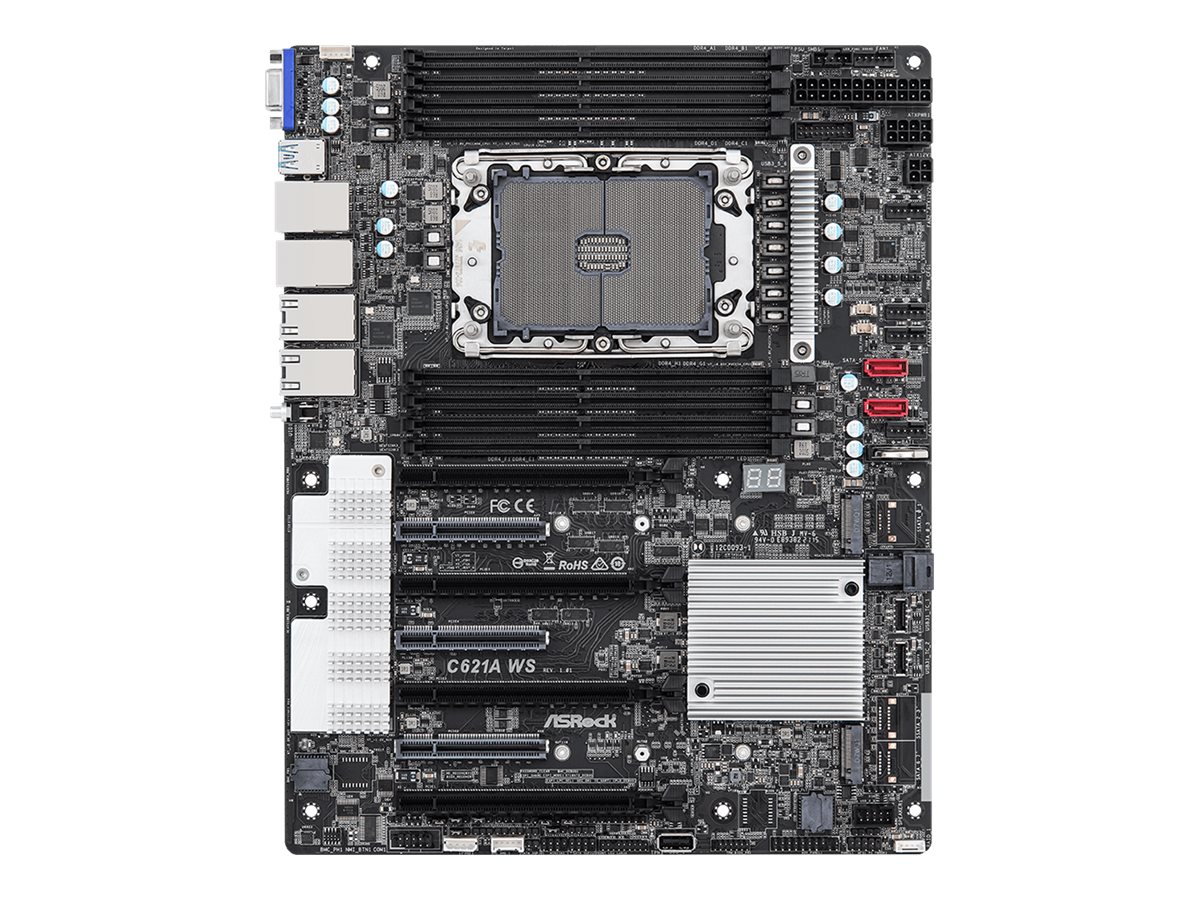

ASRock C621A WS ATX P+ Intel C621A
€411,56
ASRock C621A WS - Bundkort - ATX - Socket P+ - C621A Chipset - USB-C Gen2, USB 3.2 Gen 1 - 2 x 10 Gigabit LAN, 2 x Gigabit LAN - onboard grafik
Availability: In stock
Secure payment · Fast delivery
EAN:4710483936685Categories:, , Brand:
ASRock C621A WS - Bundkort - ATX - Socket P+ - C621A Chipset - USB-C Gen2, USB 3.2 Gen 1 - 2 x 10 Gigabit LAN, 2 x Gigabit LAN - onboard grafik
Specifications
Specifications
| Produktbeskrivelse | ASRock C621A WS - bundkort - ATX - Socket P+ - C621A |
| Produkttype | Bundkort - ATX |
| Chipsættype | Intel C621A |
| Processor-socket | 1 x Socket P+ |
| Kompatible processorer | Xeon |
| Max RAM-størrelse | 256 GB |
| RAM understøttet | 8 DIMM åbninger - DDR4, ECC, registreret, Load-Reduced, 3DS Load-Reduced, 3DS-registreret, Optane DC Persistent |
| Lagringsporte | 1 x Mini-SAS HD, 2 x SATA-600, 2 x M.2 |
| USB / FireWire porte | 4 x USB 3.2 Gen 1 + 1 x USB 2.0 + (2 x USB-C Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 via samlekasser) |
| Grafik | ASPEED AST2500 |
| LAN | 2 x 10 Gigabit Ethernet, 2 x Gigabit Ethernet |
| Chipset Type | Intel C621A |
| Compatible Processors | Xeon |
| Max Processors Qty | 1 |
| Processor Socket | Socket P+ |
| Product Type | Motherboard - ATX |
| Bus Clock | 2400 MHz, 1866 MHz, 2133 MHz, 2666 MHz, 2933 MHz, 3200 MHz |
| Features | 8-channel memory architecture, supports Intel Optane DC Persistent Memory (DCPMM) |
| Max Size | 256 GB |
| Registered or Buffered | Registered, Load-Reduced, 3DS Load-Reduced, 3DS registered, Optane DC Persistent |
| Supported RAM Integrity Check | ECC |
| Technology | DDR4 |
| Graphics Controller | ASPEED AST2500 |
| Network Controller | Intel I210 / Intel X710-AT2 |
| Network Interfaces | 2 x 10 Gigabit Ethernet, 2 x Gigabit Ethernet |
| Expansion Slots | 1 x CPU | 8 x DIMM 288-pin | 3 x PCIe 4.0 x16 (x16 mode (x8 mode if PCI Express 4.0 x8 slot is occupied)) | 1 x PCIe 4.0 x16 | 3 x PCIe 4.0 x8 |
| Interfaces | 1 x VGA | 2 x LAN (10Gigabit Ethernet) | 2 x LAN (Gigabit Ethernet) | 1 x management | 4 x USB 3.2 Gen 1 |
| Internal Interfaces | 1 x serial - header | 2 x USB-C Gen2 - header | 1 x USB 2.0 - Type A | 2 x USB 3.2 Gen 1 - header | 2 x USB 2.0 - header | 2 x SGPIO - header | 1 x serial - header | 1 x LPC - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 1 x mini-SAS HD - RAID 0 / RAID 1 / RAID 10 / RAID 5 | SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | SATA-600 / PCIe 3.0 -connectors: 2 x M.2 |
| BIOS Features | SMBIOS 2.3 support, UEFI BIOS, ACPI 5.0 support |
| BIOS Type | AMI |
| Hardware Features | ASRock Instant Flash, 7 Phase Power Design, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), 2oz Copper PCB, 12 Layer PCB |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Cables Included | 1 x mini SAS HD to 4 x SATA HDD cable | 1 x Serial ATA cable |
| Compliant Standards | FCC, EuP Ready, ErP Ready |
| Depth | 24.4 cm |
| Included Accessories | I/O back plate, 2 x M.2 screws, non-fabric CPU carrier |
| Software Included | Drivers & utilities, Antivirus |
| Width | 30.5 cm |
