ASRock B860M Pro-A mATX DDR5 LGA1851
€96,35
ASRock B860M Pro-A - Bundkort - micro-ATX - LGA1851 sokkel - B860 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (7.1-kanaler)
Availability: In stock
Secure payment · Fast delivery
EAN:4711581490291Categories:, , Brand:
ASRock B860M Pro-A - Bundkort - micro-ATX - LGA1851 sokkel - B860 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (7.1-kanaler)
Specifications
Specifications
| Socket | Intel LGA 1851 |
| CPU | Intel® Core™ Ultra Processors (Series 2) |
| Chipset | Intel® B860 |
| Memory slots | 4x DDR5 DIMM (Dual Channel) |
| Memory support | DDR5 non-ECC, un-buffered memory up to 8666+(OC), Max. capacity: 256GB |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Intel Xe LPG Graphics Architecture |
| Display output | 1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz, 1x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | Dragon RTL8125BG 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Slots | 1x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, 1x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode, 1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Storage | 1x (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode, 1x (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode, 1x (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, 4x SATA3 6.0 Gb/s Connectors |
| USB | 1x USB 3.2 Gen2x2 Type-C (Rear), 1x USB 3.2 Gen1 Type-C (Front), 5x USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6x USB 2.0 (2 Rear, 4 Front) |

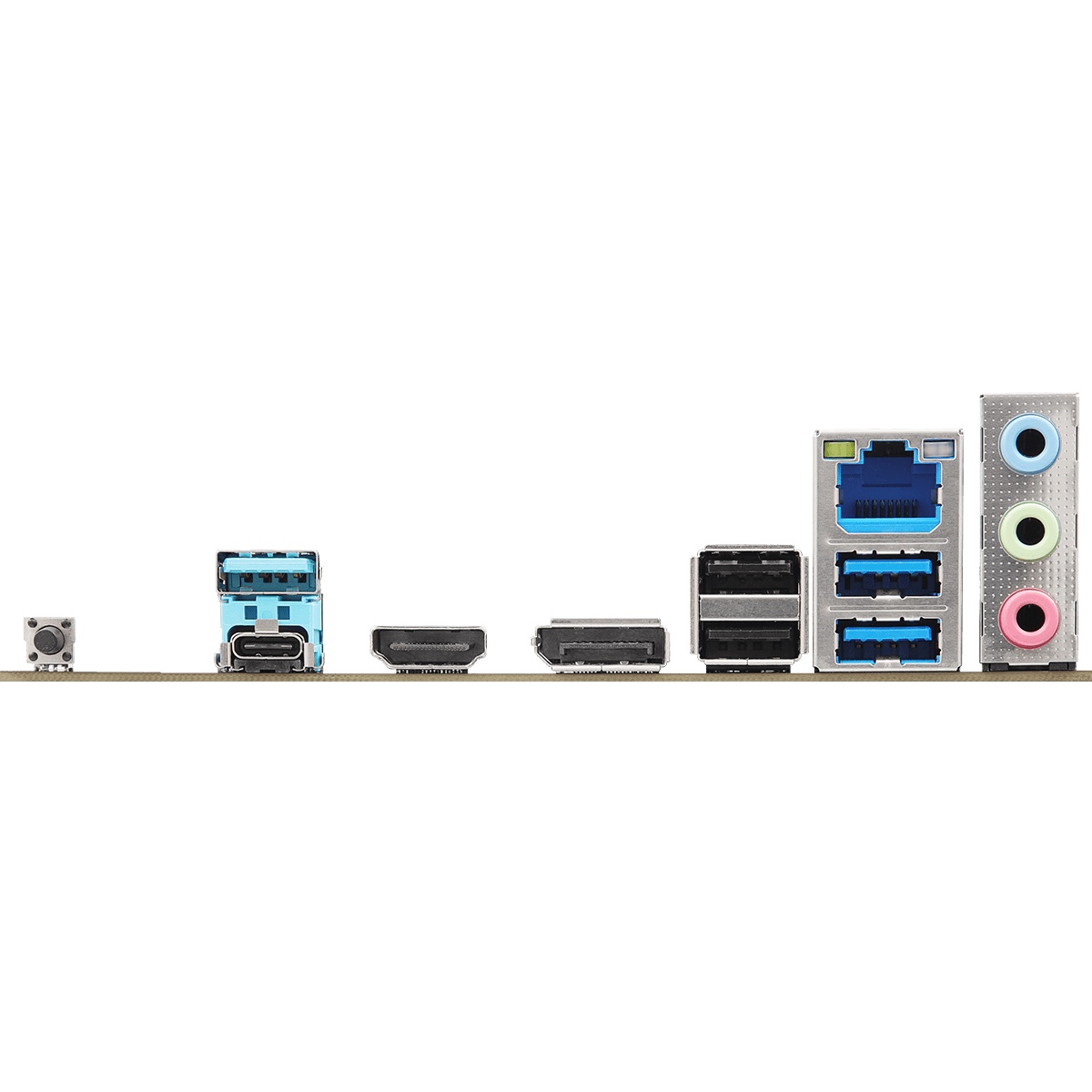

| Rear Panel I/O | 2x Antenna Mounting Points, 1x HDMI Port, 1x DisplayPort 1.4, 1x USB 3.2 Gen2x2 Type-C Port (20 Gb/s), 3x USB 3.2 Gen1 Ports, 2x USB 2.0 Ports, 1x RJ-45 LAN Port, 1x BIOS Flashback Button, HD Audio Jacks: Line in / Front Speaker / Microphone |
| Accessories | 1x I/O Shield, 2x SATA Data Cables, 1x Screw for M.2 Socket |
| Form Factor | Micro ATX Form Factor: 24.4 cm x 24.4 cm |
| Certifications | FCC, CE, ErP/EuP ready |
