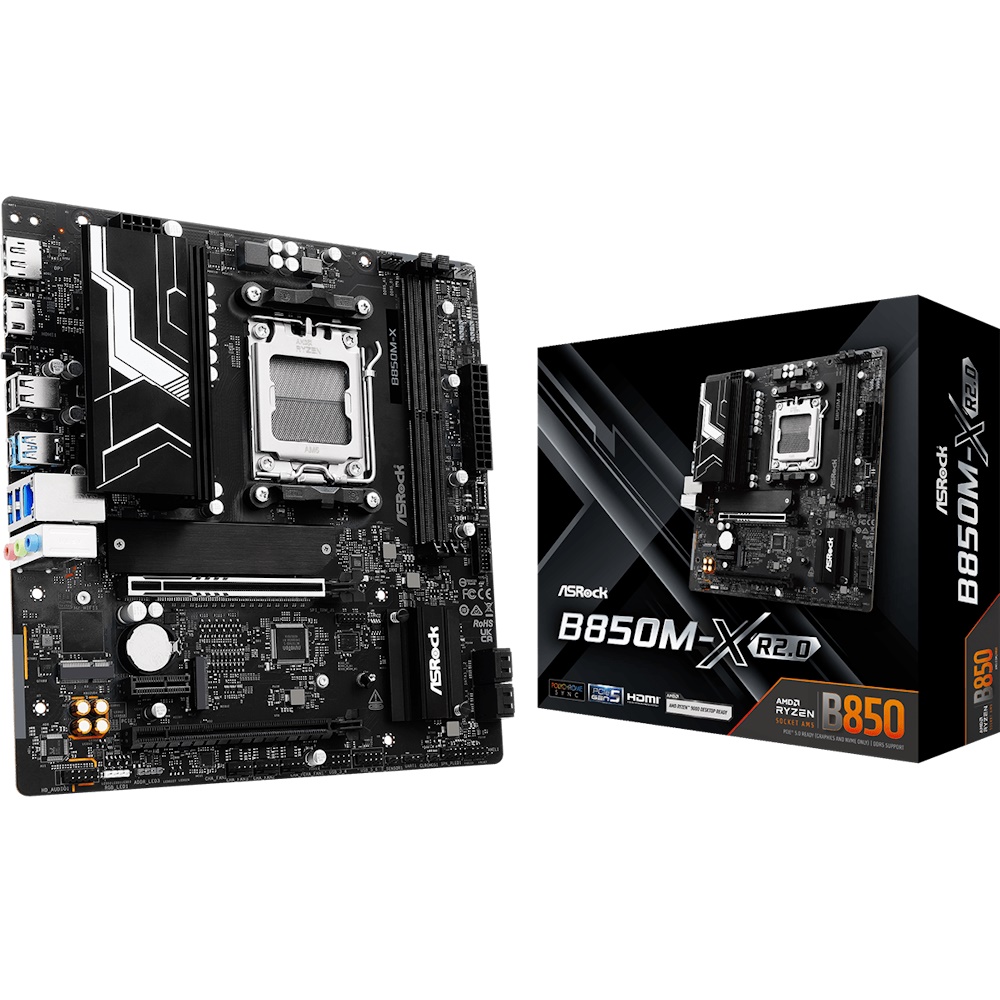

Asrock B850M-X R2.0 Micro-ATX AM5 Socket
€81,59
Asrock B850M-X R2.0 - Bundkort - Micro ATX - Socket AM5 - AMD B850 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Availability: In stock
Secure payment · Fast delivery
EAN:4711581490758Categories:, , Brand:
Asrock B850M-X R2.0 - Bundkort - Micro ATX - Socket AM5 - AMD B850 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Specifications
Specifications
| Power Phase | 6+1+1 |
| CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Chipset | AMD B850 |
| Memory | 2x DDR5 DIMM Slots (Dual Channe) - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+, Max 128GB |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) |
| Video output | 1x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz, 1x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | 2.5 Gigabit - Dragon RTL8125BG |
| Slots | 1x PCIe 5.0 x16 Slot (supports x16 mode), 1x PCIe 4.0 x1 Slot, 1x PCIe 4.0 x16 Slot (supports x4 mode), 1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Storage | 1x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode, 1x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode, 4x SATA3 6.0 Gb/s Connectors |
| USB | 3x USB 3.2 Gen1 Type-A (Rear), 2x USB 2.0 (Rear (USB_2), 2x USB 3.2 Gen1 Type-C (1 Rear, 1 Front), 2x USB 3.2 Gen1 Type-A (Front), 5x USB 2.0 (1 Rear (USB_1), 4 Front) |
| Rear Panel I/O | 2x Antenna Mounting Points, 1x HDMI Port, 1x DisplayPort 1.4, 1x USB 3.2 Gen1 Type-C Port, 3x USB 3.2 Gen1 Type-A Ports, 2x USB 2.0 Ports, 1x RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone |
| Accessories | 1x I/O Shield, 2x SATA Data Cables, 1x Screw for M.2 Socket |
| Form Factor | Micro ATX (24.4 cm x 22.6 cm) |
| Certifications | FCC, CE, ErP/EuP ready |
