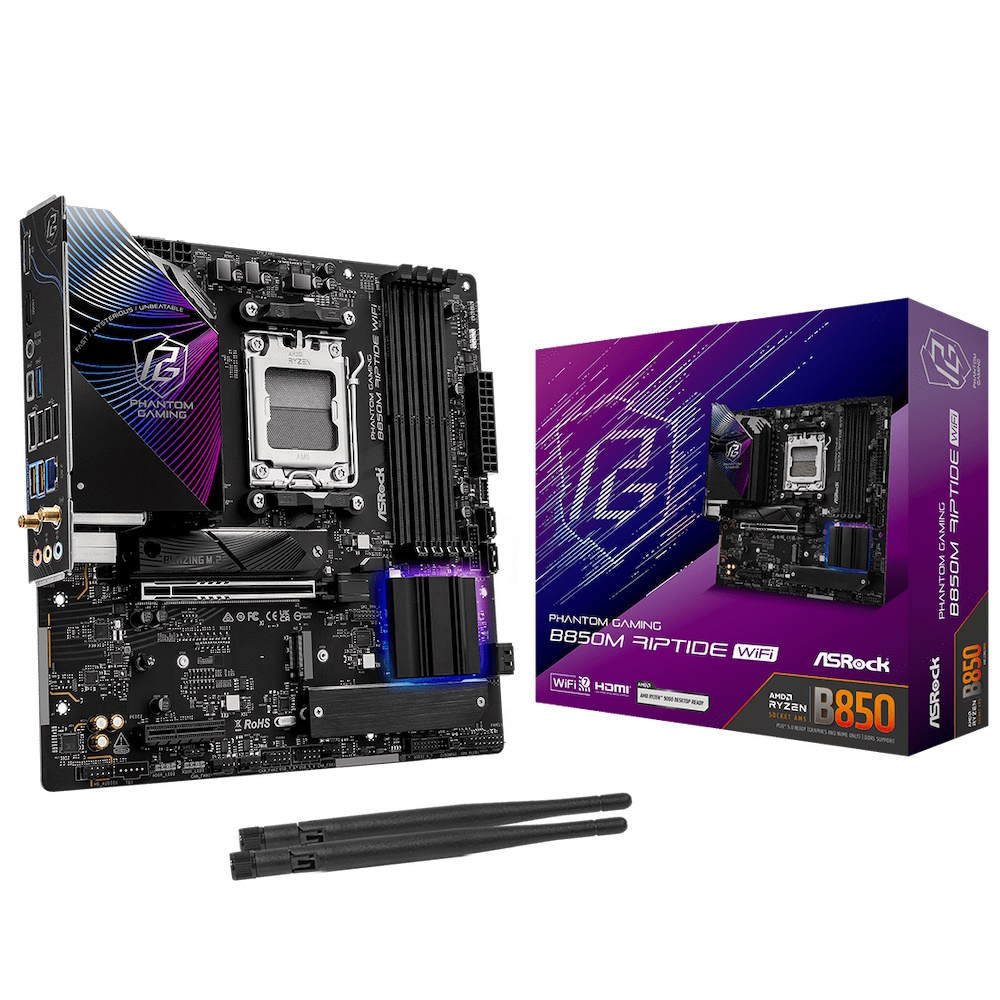

ASRock B850M Riptide WiFi mATX AM5
€131,26
ASRock B850M Riptide WiFi - mATX - Socket AM5 - WiFi 7 - 4x DDR5 slots - HDMI 2.1 - DisplayPort 1.4 - Dragon RTL8125BG
Availability: In stock
Secure payment · Fast delivery
EAN:4711581490482Categories:, , Brand:
ASRock B850M Riptide WiFi - mATX - Socket AM5 - WiFi 7 - 4x DDR5 slots - HDMI 2.1 - DisplayPort 1.4 - Dragon RTL8125BG
Specifications
Specifications
| CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Chipset | AMD B850 |
| Memory | 4x DDR5 DIMM Slots, Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) Max: 256GB |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3, 1x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 |
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) |
| LAN | Dragon RTL8125BG - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Wireless LAN | 802.11be 2x2 Wi-Fi 7 Module, Bluetooth 5.4 |
| Slots | 1x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, 1x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode, 1x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Storage | 1x Blazing M.2 Socket, supports type 2280 PCIe Gen5x4 (128 Gb/s) mode, 1x M.2 Socket, supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode, 1x Hyper M.2 Socket, supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode, 4x SATA3 6.0 Gb/s Connectors |
| USB | 1x USB 3.2 Gen2 Type-C (Rear), 1x USB 3.2 Gen2 Type-A (Rear), 1x USB 3.2 Gen1 Type-C (Front), 6x USB 3.2 Gen1 Type-A (2 Rear , 4 Front), 8x USB 2.0 (4 Rear, 4 Front) |
| Rear Panel I/O | 2x Antenna Ports, 1x HDMI Port, 1x DisplayPort 1.4, 1x USB 3.2 Gen2 Type-C Port (10 Gb/s), 1x USB 3.2 Gen2 Type-A Port (10 Gb/s), 2x USB 3.2 Gen1 Ports, 4x USB 2.0 Ports, 1x RJ-45 LAN Port, 1x BIOS Flashback Button, HD Audio Jacks: Line in / Front Speaker / Microphone |
| Accessories | 2x SATA Data Cables, 2x ASRock WiFi 2.4/5/6 GHz Antennas, 1x Thermistor Cable, 2x Screws for M.2 Sockets, 1x Standoff for M.2 Socket |
| Form Factor | Micro ATX Form Factor: 24.4 cm x 24.4 cm |
| Certifications | FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required) |
