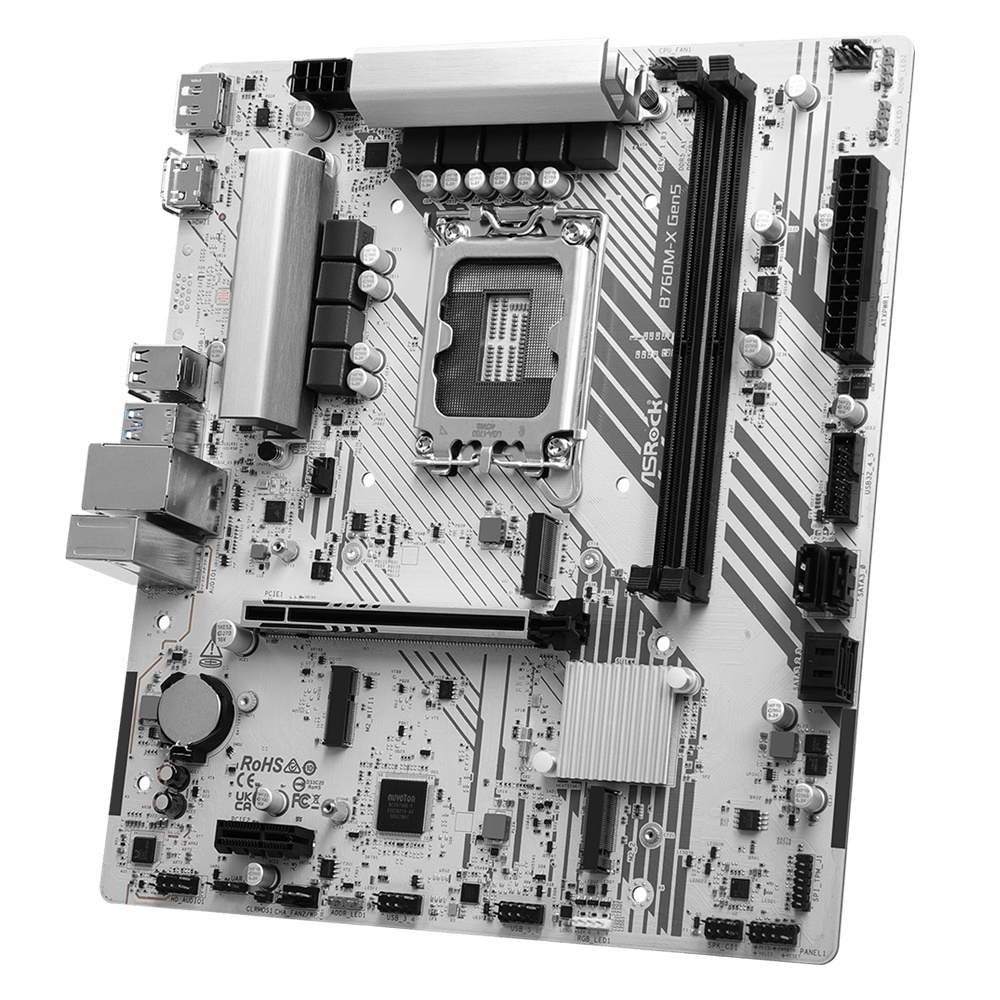

Asrock B760M-X Gen5 Micro-ATX LGA1700
€77,05
Asrock B760M-X Gen5 - Bundkort - micro ATX - LGA1700 sokkel - B760 Chipset - USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Availability: In stock
Secure payment · Fast delivery
EAN:4711581492356Categories:, , Brand:
Asrock B760M-X Gen5 - Bundkort - micro ATX - LGA1700 sokkel - B760 Chipset - USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Specifications
Specifications
| CPU | Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) |
| Chipset | Intel® B760 |
| Memory | 2x DDR5 DIMM Slots - Up to 7200+ - Max 128GB |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Graphics output | 1x HDMI 2.1, 1x DisplayPort 1.4 |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | Dragon RTL8125BG 2.5 Gigabit LAN |
| Slots | 1x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, 1x PCIe 3.0 x1 Slots (PCIE2), 1x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Storage | 1x Hyper M.2 2260/2280 PCIe Gen4x4, 1x Ultra M.2 2280 PCIe Gen3x4, 4x SATA3 6.0 Gb/s |
| USB | 1x USB 3.2 Gen1 Type-C (Rear), 5x USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6x USB 2.0 (2 Rear, 4 Front) |
| Rear Panel I/O | 2x Antenna Mounting Points, 1x HDMI Port, 1x DisplayPort 1.4, 1x USB 3.2 Gen1 Type-C Port, 3x USB 3.2 Gen1 Type-A Ports, 2x USB 2.0 Ports, 1x RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone |
| Accessories | 1x I/O Shield, 2x SATA Data Cables, 3x Screws for M.2 Sockets |
| Form Factor | Micro ATX Form Factor: 9.6-in x 8.7-in, 24.4 cm x 22.1 cm |
