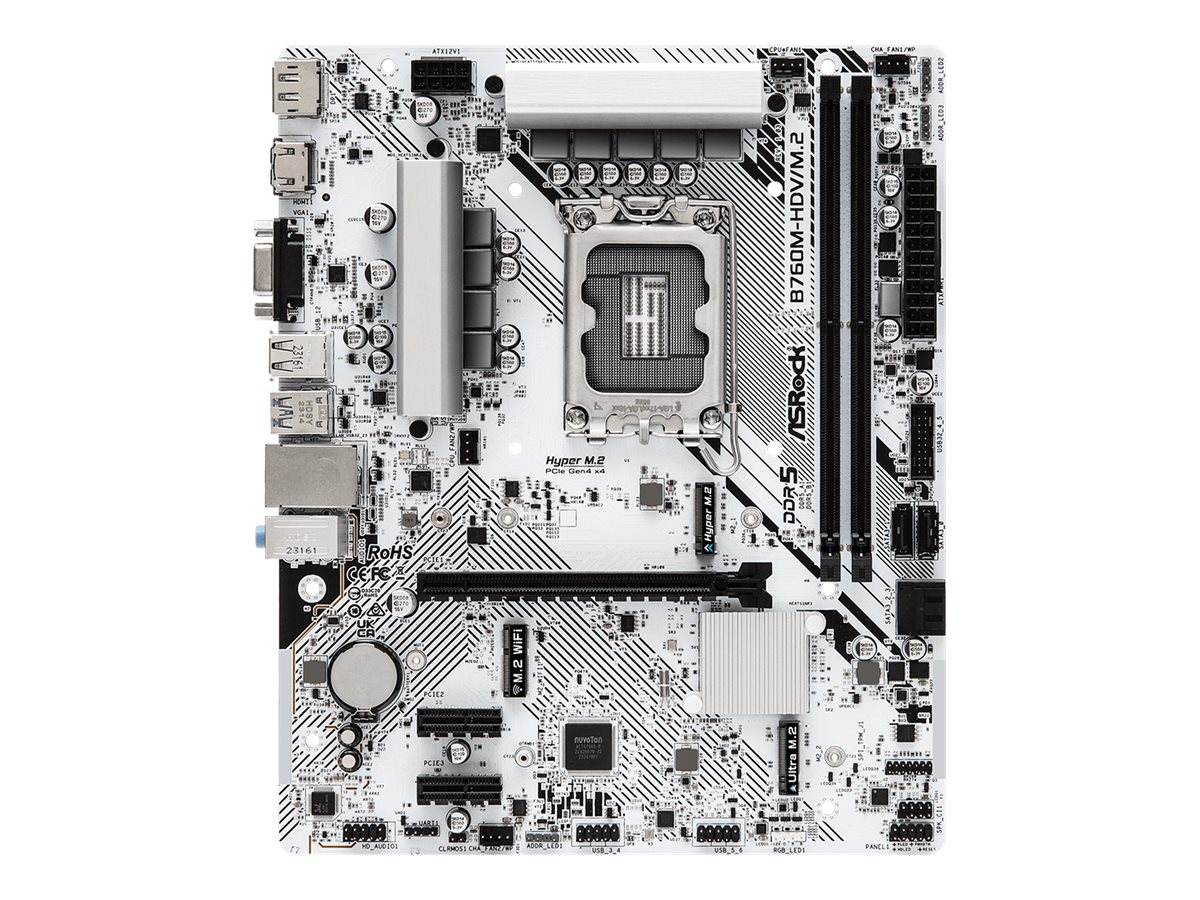

Asrock B760M-HDV/M.2 - mATX DDR5 LGA1700
€65,13
ASRock B760M-HDV/M.2 - Bundkort - micro-ATX - LGA1700 sokkel - B760 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Availability: In stock
Secure payment · Fast delivery
EAN:4710483943485Categories:, , Brand:
ASRock B760M-HDV/M.2 - Bundkort - micro-ATX - LGA1700 sokkel - B760 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Specifications
Specifications
| Produktbeskrivelse | ASRock B760M-HDV/M.2 - bundkort - micro-ATX - LGA1700 sokkel - B760 |
| Produkttype | Bundkort - micro-ATX |
| Chipsættype | Intel B760 |
| Processor-socket | LGA1700 sokkel |
| Kompatible processorer | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM-størrelse | 96 GB |
| RAM understøttet | 2 DIMM slots - DDR5, ikke-ECC, ECC (drift i ikke-ECC tilstand), ikke bufferet |
| Lagringsporte | 4 x SATA-600 (RAID), 1 x Hyper M.2, 1 x Ultra M.2 |
| USB / FireWire porte | 1 x USB-C 3.2 Gen 1 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser) |
| Audio | HD Audio (8-kanaler) |
| LAN | 2.5 Gigabit Ethernet |
| Chipsættype | Intel B760 |
| Max antal processorer | 1 |
| Maks. størrelse | 96 GB |
| Teknologi | DDR5 |
| Bus Clock | 7200 MHz (O.C.) |
| Understøttet RAM-integritetskon | Ikke-ECC, ECC (drift i ikke-ECC tilstand) |
| Registreret eller buffer | Ikke bufferet |
| Egenskaber | Dobbelt kanal hukommelses arkitektur, understøttede ECC-moduler fungerer i ikke-ECC-tilstand, Intel Extreme Memory Profiles (XMP) 3.0 |
| Type | HD Audio (8-kanaler) |
| Audio codec | Realtek ALC897 |
| Overensstemmelsesstandarder | FCC, RoHS, EuP Ready, ErP Ready, HDCP 2.3, UKCA |
| Netværk controller | Realtek RTL8125BG |
| Netværks interfaces | 2.5 Gigabit Ethernet |
| Ekspansionsåbninger | 1 x CPU 2 x DIMM 288-pins 1 x PCIe 4.0 x16 2 x PCIe 3.0 x1 1 x M.2 socket (2230 M.2 Key E-åbning) 1 x M.2 socket (2260/2280 M.2 Key M-åbning) 1 x M.2 socket (2280 M.2 Key M-åbning) |
| Grænseflade (lagring) | SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -stikforbindelser: 1 x Hyper M.2 PCIe 3.0 -stikforbindelser: 1 x Ultra M.2 |
| Interface | 1 x VGA 1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen 1 3 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x mikrofon - mini-jack 1 x audio linje-ind - mini-jack 1 x audio linje-ud - mini-jack |
| Interne interfaces | 2 x USB 3.2 Gen 1 - internal stik 4 x USB 2.0 - internal stik 1 x SPI - internal stik 1 x højttaler - internal stik 1 x audio - internal stik |
| Strømkontakter | 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
| BIOS-type (Basic Input/Output System) | AMI |
| BIOS-egenskaber | UEFI BIOS |
| Hardware egenskaber | ASRock Instant Flash, ESD Protection, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, ASRock EZ Mode, ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology, Intel Turbo Boost Max Technology 3.0, Intel Hybrid Technology, ASRock Auto Driver Installer, 7+1+1 Phase Power Design, Intel Adaptive Boost Technology (ABT), Intel Thermal Velocity Boost (TVB), ASRock Polychrome RGB |
| Udstyr inkluderet | 3 x M.2 skruer, IO-skjold |
| Medfølgende ledninger | 2 x Seriel ATA kabel |
| Med software | ASRock A-Tuning, ASRock Polychrome SYNC, ASRock Dragon 2.5G LAN Software |
| Bredde | 24.4 cm |
| Dybde | 20.1 cm |
