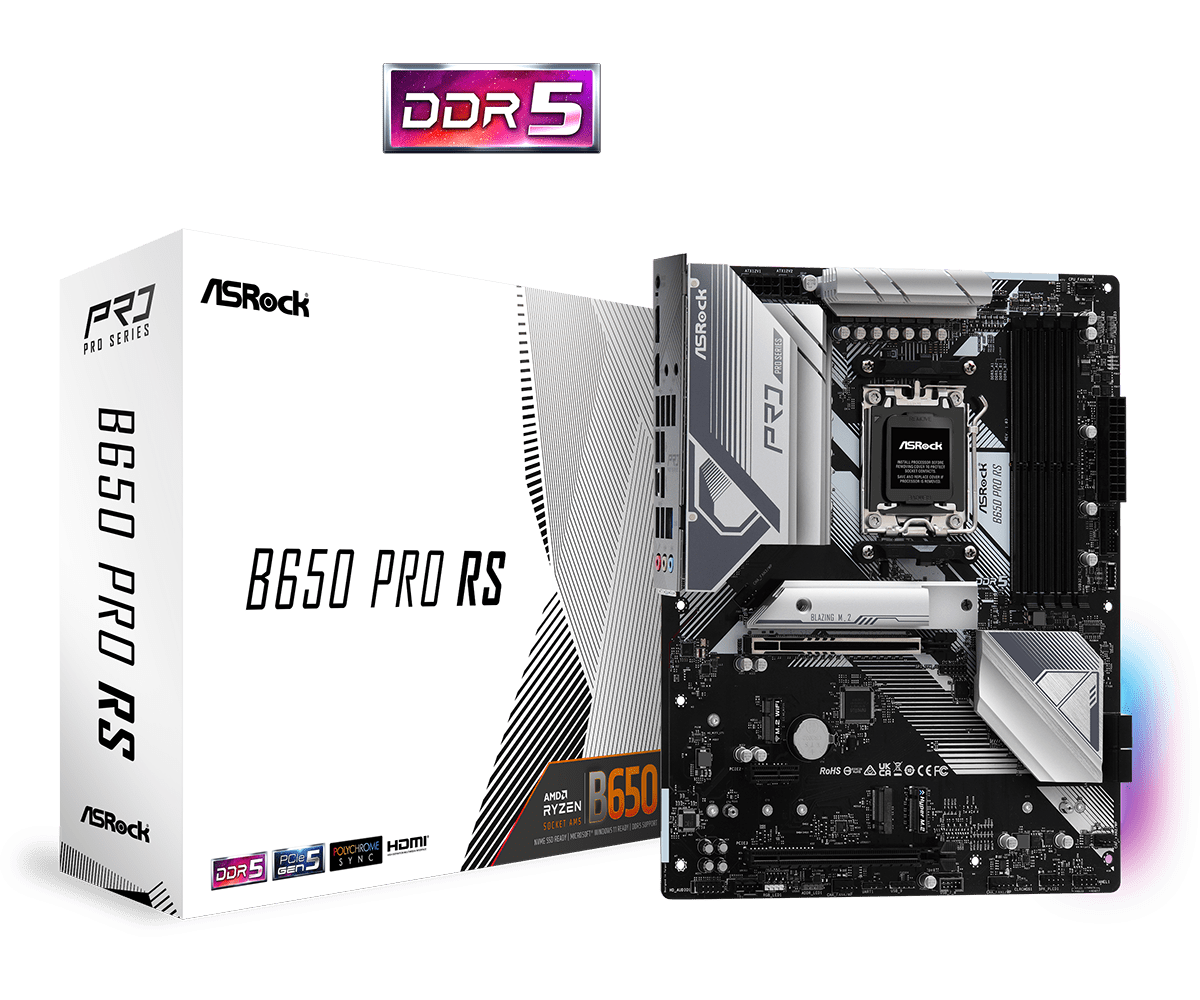

ASRock B650 Pro RS ATX AM5 AMD B650
€114,80
ASRock B650 Pro RS - Bundkort - ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - High Definition Audio (7.1-kanal)
Availability: In stock
Secure payment · Fast delivery
EAN:4710483940750Categories:, , Brand:
ASRock B650 Pro RS - Bundkort - ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - High Definition Audio (7.1-kanal)
Specifications
Specifications
| Produktbeskrivelse | ASRock B650 Pro RS - bundkort - ATX - Socket AM5 - AMD B650 |
| Produkttype | Bundkort - ATX |
| Chipsættype | AMD B650 |
| Processor-socket | 1 x Socket AM5 |
| Kompatible processorer | Ryzen (understøtter Ryzen 7000 Series) |
| Max RAM-størrelse | 128 GB |
| RAM understøttet | 4 DIMM slots - DDR5, non-ECC, not buffered |
| Lagringsporte | 4 x SATA-600 (RAID), 1 x M.2, 1 x Hyper M.2, 1 x Blazing M.2 |
| USB / FireWire porte | 1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 6 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 3 x USB 2.0 via samlekasser) |
| Audio | High Definition Audio (7.1-kanal) |
| LAN | 2.5 Gigabit Ethernet |
| Chipset Type | AMD B650 |
| Compatible Processors | Ryzen (supports Ryzen 7000 Series) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM5 |
| Product Type | Motherboard - ATX |
| Bus Clock | 6200 MHz (O.C.) |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR5 |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | EuP Ready, ErP Ready, RoHS 2011/65/EU, EMC 2014/30/EU, DisplayPort 1.4, HDCP 2.3, UKCA, FCC Part 15 Subpart B |
| Type | High Definition Audio (7.1-channel) |
| Network Controller | Dragon RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion Slots | 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 1 x PCIe 3.0 x16 (x4 mode) | PCIe 4.0 x1 | 1 x M.2 socket (2230 M.2 Key E slot) | 1 x M.2 socket (2280 M.2 Key M slot) | 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) | 1 x M.2 socket (2260/2280 M.2 Ke |
| Interfaces | 1 x USB 3.2 Gen 2 | 1 x USB-C 3.2 Gen 2 | 2 x USB 3.2 Gen 1 | 6 x USB 2.0 | 2 x antenna | 1 x HDMI | 1 x DisplayPort | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2x2 - header | 2 x USB 3.2 Gen 1 - header | 3 x USB 2.0 - header | 1 x SPI - header | 1 x audio - header | 1 x Thunderbolt - header | 1 x speaker - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 | PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 | PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| BIOS Features | UEFI BIOS |
| BIOS Type | AMI |
| Hardware Features | ASRock Instant Flash, 15µ Gold Contact, 8 Layer PCB, ASRock Full HD UEFI, ASRock Steel Slots, M.2 heatsink, Water Pump Header, pre-mounted I/O shield, ASRock POST Status Checker (PSC), ASRock Auto Driver Installer, 60A Smart Power Stage, Enlarged Hea |
| Cables Included | 2 x Serial ATA cable |
| Depth | 24.4 cm |
| Included Accessories | 3 x M.2 screws |
| Software Included | ASRock A-Tuning, ASRock Dragon 2.5G LAN Software |
| Width | 30.5 cm |
