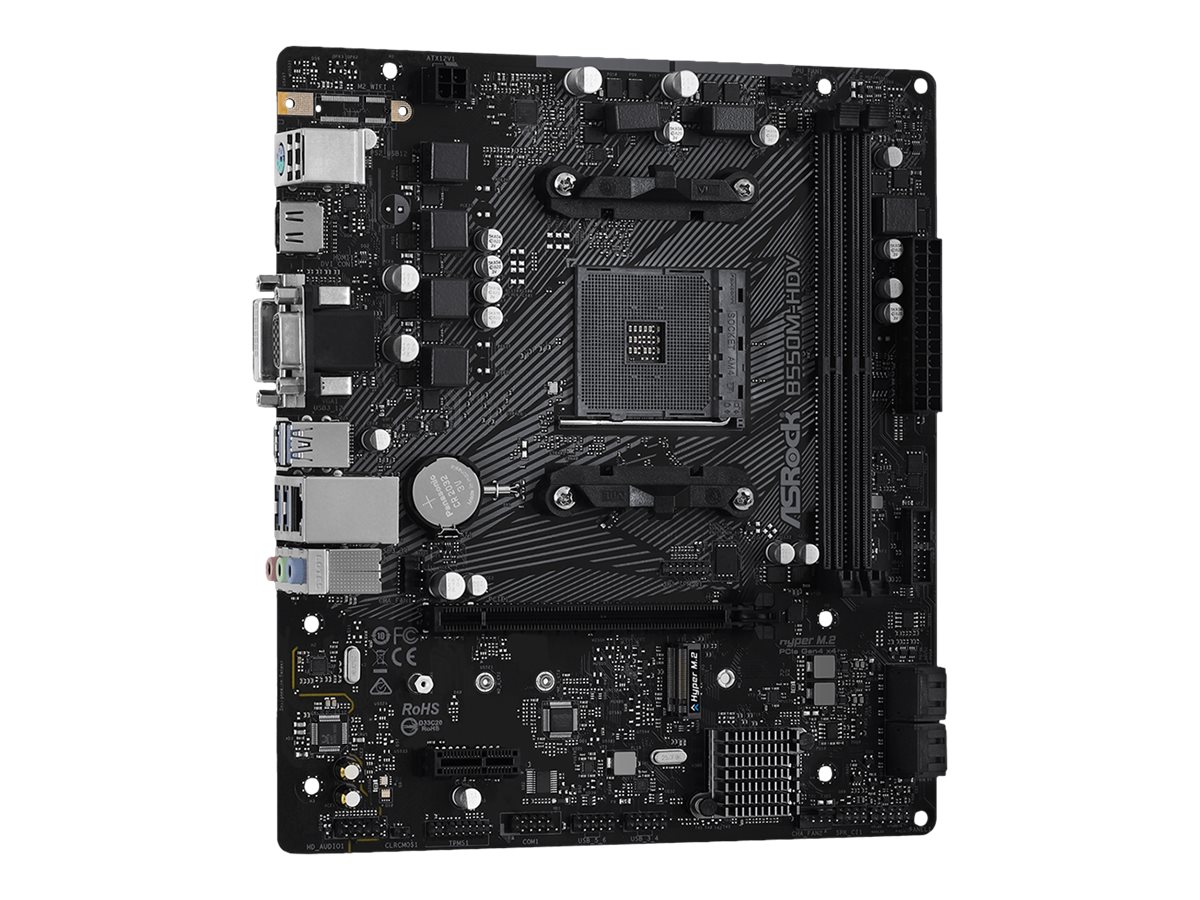

ASRock B550M-HDV Micro-ATX AM4 AMD B550
€54,72
ASRock B550M-HDV - Bundkort - micro ATX - Socket AM4 - AMD B550 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Availability: In stock
Secure payment · Fast delivery
EAN:4710483931635Categories:, , Brand:
ASRock B550M-HDV - Bundkort - micro ATX - Socket AM4 - AMD B550 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Specifications
Specifications
| Produktbeskrivelse | ASRock B550M-HDV - bundkort - micro ATX - Socket AM4 - AMD B550 |
| Produkttype | Bundkort - micro ATX |
| Chipsættype | AMD B550 |
| Processor-socket | 1 x Socket AM4 |
| Kompatible processorer | Ryzen (understøtter 3. Generation Ryzen and New Generation Ryzen med Radeon Graphics) |
| Max RAM-størrelse | 64 GB |
| RAM understøttet | 2 DIMM slots - DDR4, ikke-ECC, ECC (drift i ikke-ECC tilstand), ikke bufferet |
| Lagringsporte | 4 x SATA-600 (RAID), 1 x M.2 |
| USB / FireWire porte | 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser) |
| Maks. allokeret RAM-størrelse | 2 GB |
| Audio | HD Audio (8-kanaler) |
| LAN | Gigabit Ethernet |
| Chipset Type | AMD B550 |
| Compatible Processors | Ryzen (supports 3rd Generation Ryzen and New Generation Ryzen with Radeon Graphics) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM4 |
| Product Type | Motherboard - micro ATX |
| Bus Clock | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4533 M |
| Features | Dual channel memory architecture, AMD Memory Profile (AMP), supported ECC modules operate in non-ECC mode |
| Max Size | 64 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Technology | DDR4 |
| Max Allocated RAM Size | 2 GB |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | Plug and Play, FCC, EuP Ready, ErP Ready, HDCP 2.3 |
| Type | HD Audio (8-channel) |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU | 2 x DIMM 288-pin | 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen series CPUs Matisse); PCIe 3.0 x16 mode (Ryzen series APUs)) | 1 x PCIe 3.0 x1 |
| Interfaces | 1 x PS/2 keyboard / mouse | 1 x LAN (Gigabit Ethernet) | 1 x VGA | 1 x DVI-D | 1 x HDMI | 2 x USB 2.0 | 4 x USB 3.2 Gen 1 | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack |
| Internal Interfaces | 4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x serial - header | 1 x audio - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 |
| BIOS Features | JumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support |
| BIOS Type | AMI |
| Hardware Features | ASRock Instant Flash, HDCP compliant, 15µ Gold Contact, 6 Phase Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glas |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Cables Included | 2 x Serial ATA cable |
| Depth | 20.1 cm |
| Included Accessories | I/O back plate, 1 x M.2 screw |
| Software Included | Drivers & utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN |
| Width | 23 cm |
