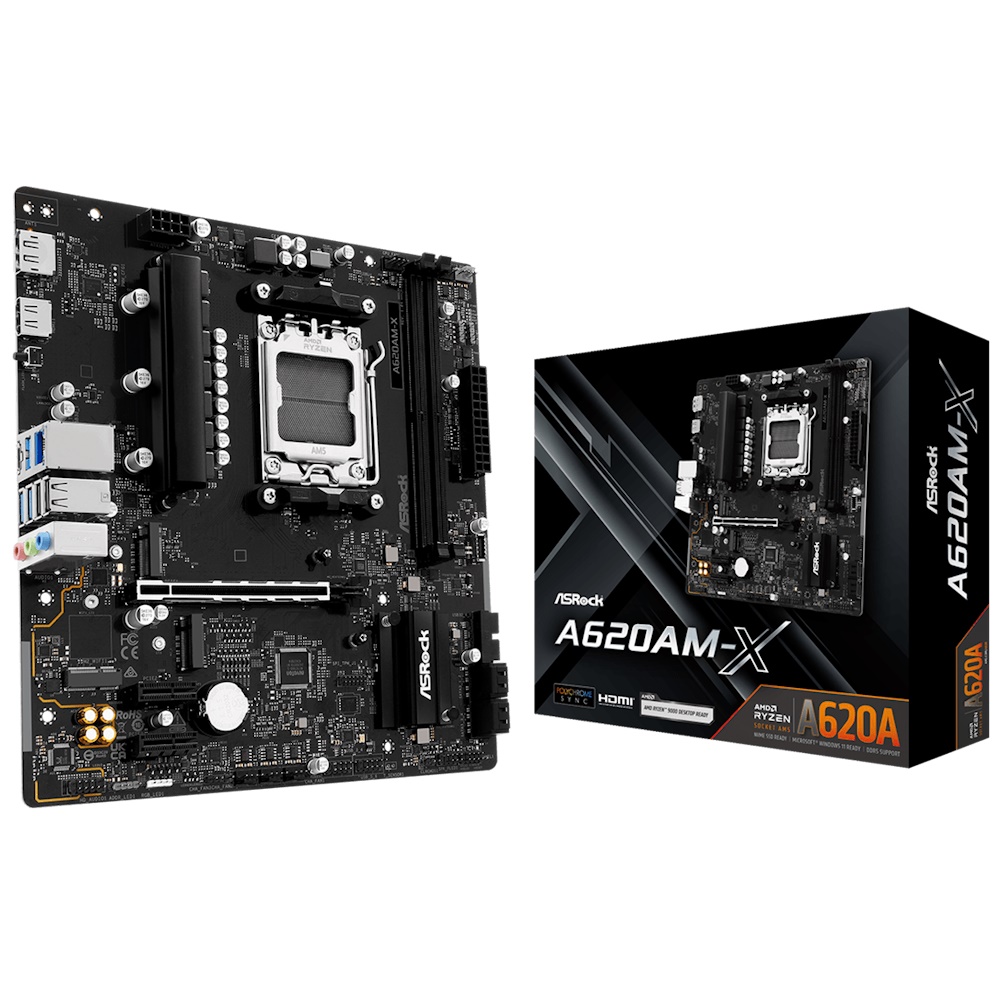

Asrock A620AM-X Micro ATX AM5 Socket
€59,88
Asrock A620AM-X - ATX - Socket AM5 - 2x DDR5 slots - HDMI 2.1, DP 1,4 - USB 3.2 - Realtek RTL8125BG
Availability: In stock
Secure payment · Fast delivery
EAN:4711581490819Categories:, , Brand:
Asrock A620AM-X - ATX - Socket AM5 - 2x DDR5 slots - HDMI 2.1, DP 1,4 - USB 3.2 - Realtek RTL8125BG
Specifications
Specifications
| Power Phase | 6+1+1 |
| CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Chipset | AMD A620A |
| Memory | 2x DDR5 DIMM Slots, Dual Channel DDR5 |
| Memory Support | Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC), Max 128GB |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Display output | 1x HDMI 2.1, 1x DisplayPort 1.4 with DSC |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | Dragon RTL8125BG, 2.5 Gigabit LAN |
| Slots | 1x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode, 2x PCIe 3.0 x1 Slot, 1x M.2 Socket (Key E) for WiFi module |
| Storage | 2x Hyper M.2 Socket (1x 2280, 1x 2260/2280) PCIe Gen4x4 (64 Gb/s), 4x SATA3 6.0 Gb/s |
| USB | 3x USB 3.2 Gen1 Type-A (Rear), 2x USB 3.2 Gen1 Type-C (1 Rear, 1 Front), 2x USB 3.2 Gen1 Type-A (Front), 6x USB 2.0 (2 Rear, 4 Front) |
| Rear Panel I/O | 2x Antenna Mounting Points, 1x HDMI Port, 1x DisplayPort 1.4, 1x USB 3.2 Gen1 Type-C Port, 3x USB 3.2 Gen1 Type-A Ports, 2x USB 2.0 Ports, 1x RJ-45 LAN Port, 1x BIOS Flashback Button, HD Audio Jacks: Line in / Front Speaker / Microphone |
| Accessories | User Manual, I/O Shield, 2x SATA Data Cables, 3x Screws for M.2 Sockets |
| Form Factor | Micro ATX Form Factor (24.4 cm x 22.6 cm) |
