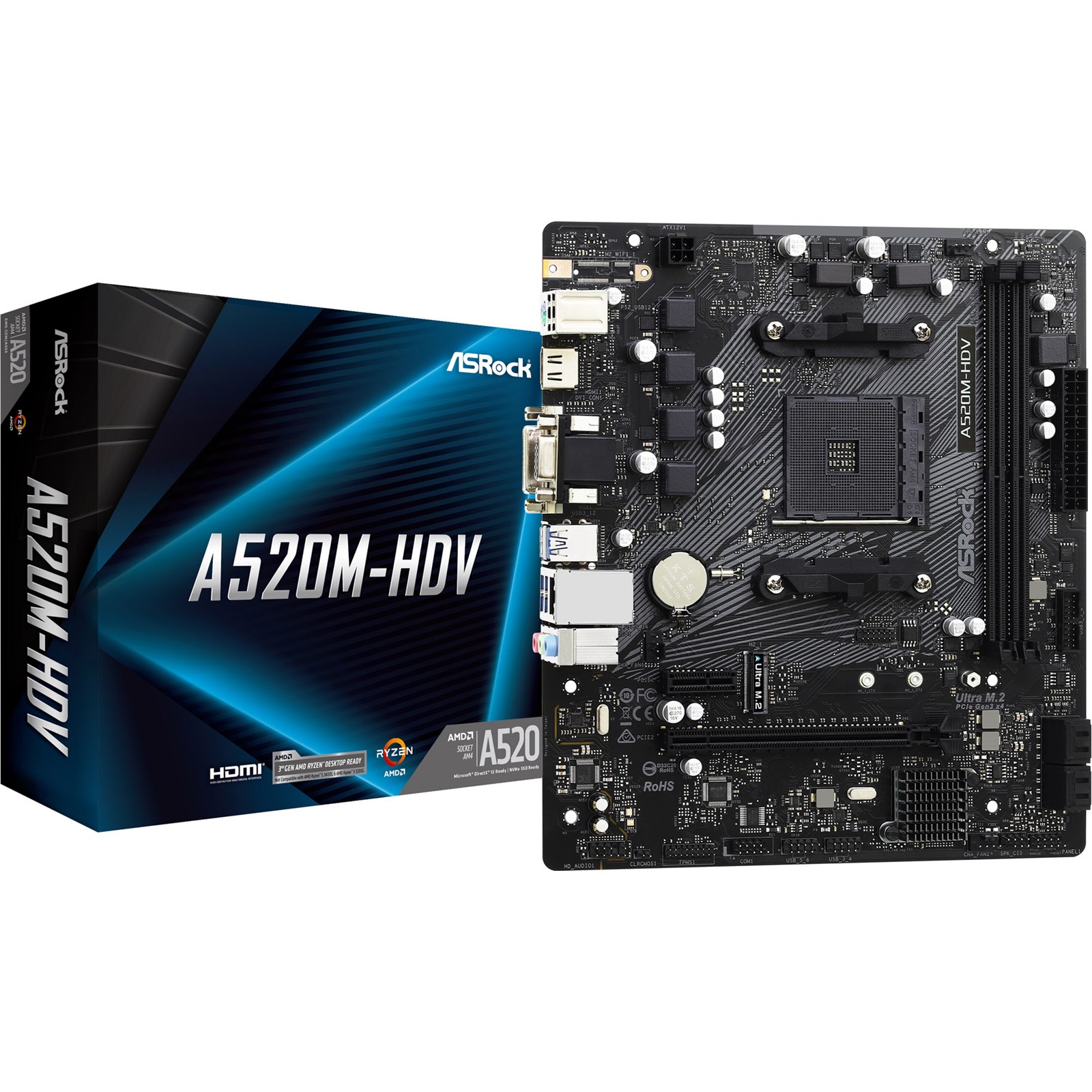

ASRock A520M-HDV Micro-ATX AM4 AMD A520
€43,85
ASRock A520M-HDV - Bundkort - micro ATX - Socket AM4 - AMD A520 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Availability: In stock
Secure payment · Fast delivery
EAN:4710483932267Categories:, , Brand:
ASRock A520M-HDV - Bundkort - micro ATX - Socket AM4 - AMD A520 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Specifications
Specifications
| Produktbeskrivelse | ASRock A520M-HDV - bundkort - micro-ATX - Socket AM4 - AMD A520 |
| Produkttype | Bundkort - micro-ATX |
| Chipsættype | AMD A520 |
| Processor-socket | 1 x Socket AM4 |
| Kompatible processorer | Ryzen (understøtter 3. Generation Ryzen) |
| Max RAM-størrelse | 64 GB |
| RAM understøttet | 2 DIMM slots - DDR4, ikke-ECC, ECC, ikke bufferet |
| Lagringsporte | 4 x SATA-600 (RAID), 1 x Ultra M.2 |
| USB / FireWire porte | USB 3.2 Gen 1 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser) |
| Maks. allokeret RAM-størrelse | 16 GB |
| Audio | HD Audio (8-kanaler) |
| LAN | Gigabit Ethernet |
| Producentgaranti | 3 year warranty |
| Chipset Type | AMD A520 |
| Compatible Processors | Ryzen (supports 3rd Generation Ryzen) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM4 |
| Product Type | Motherboard - micro ATX |
| Bus Clock | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4533 M |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Max Size | 64 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Technology | DDR4 |
| Max Allocated RAM Size | 16 GB |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | FCC, EuP Ready, ErP Ready |
| Type | HD Audio (8-channel) |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU | 2 x DIMM 288-pin | 1 x PCIe 3.0 x16 | 1 x PCIe 3.0 x1 |
| Interfaces | 1 x VGA | 1 x DVI-D | 4 x USB 3.2 Gen 1 | 1 x HDMI | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x audio line-in - mini-jack | 1 x PS/2 keyboard / mouse | 2 x USB 2.0 | 1 x LAN (Gigabit Ethernet) |
| Internal Interfaces | 4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x serial - header | 1 x audio - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2 |
| BIOS Features | JumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support |
| BIOS Type | AMI |
| Hardware Features | ASRock Instant Flash, All-Solid Capacitor motherboard Design, 15µ Gold Contact, 6 Phase Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Triple Monitor, ASRock Full Spike Protection, ASRock APP Sho |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, opened case detection |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Cables Included | 2 x Serial ATA cable |
| Depth | 20.1 cm |
| Included Accessories | I/O back plate, 1 x M.2 screw |
| Software Included | Drivers & utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN |
| Width | 23 cm |
| Service & Support | Limited warranty - 3 years |
| Chipsættype | AMD A520 |
| Max RAM-størrelse | 64 GB |
| RAM understøttet | 2 DIMM slots - DDR4, ikke-ECC, ECC, ikke bufferet |
| Maks. allokeret RAM-størrelse | 16 GB |
