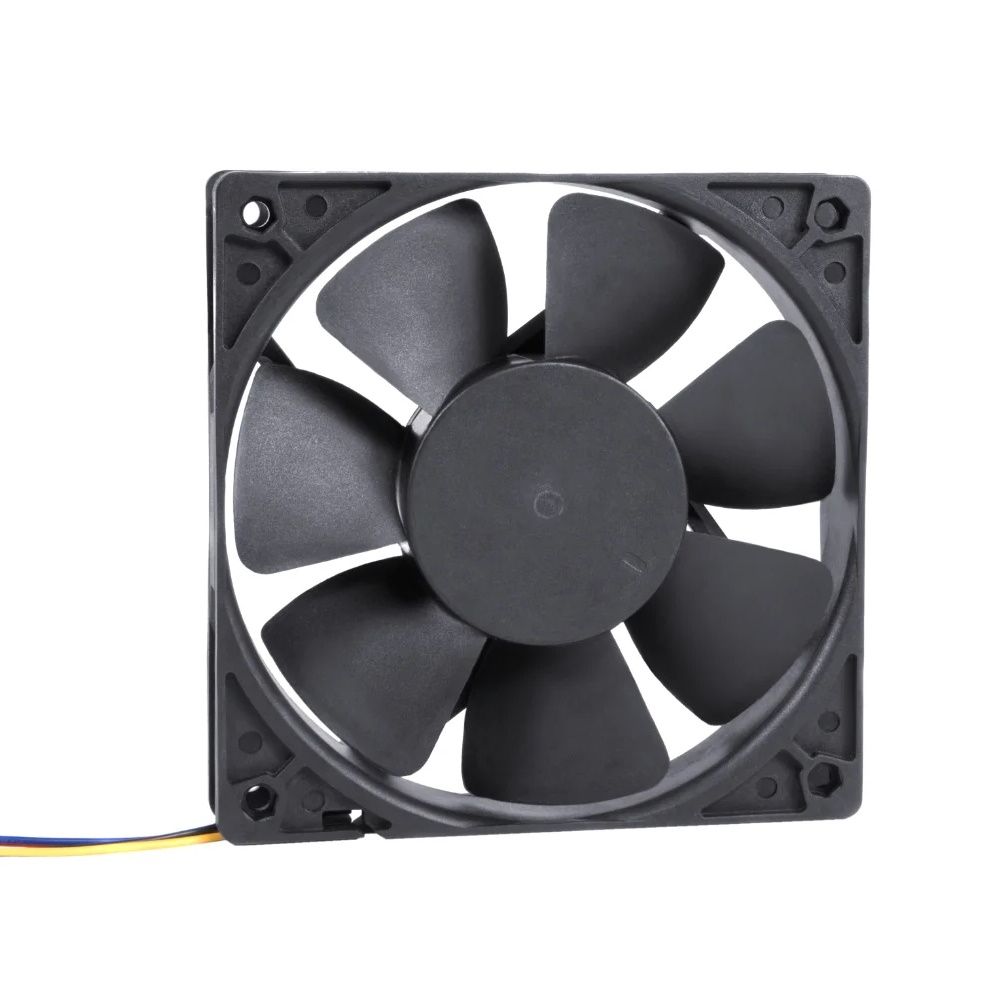

Alphacool Core 120mm PWM 4000 U/min Sort
€15,85
Alphacool 24845. Type: Ventilator, Ventilator diameter: 12 cm, Omdrejningshastighed (maks.): 4000 rpm, Maksimalt lufttryk: 12,67 mmH2O, Lejetype: Dobbelt kugleleje. Spænding: 12 V. Bredde: 120 mm, Dybde: 25 mm, Højde: 120 mm. Produktfarve: Sort
Availability: In stock
Secure payment · Fast delivery
EAN:4250197248457Categories:, , Brand:
Alphacool 24845. Type: Ventilator, Ventilator diameter: 12 cm, Omdrejningshastighed (maks.): 4000 rpm, Maksimalt lufttryk: 12,67 mmH2O, Lejetype: Dobbelt kugleleje. Spænding: 12 V. Bredde: 120 mm, Dybde: 25 mm, Højde: 120 mm. Produktfarve: Sort
Specifications
Specifications
| Dimension (L x W x H) | 120 x 120 x 25mm |
| Material | Synthetic material (PBT UL94V-0) |
| Bearing Type | Two Ball Bearing |
| Rated Voltage | DC 12V |
| Operating Voltage | DC 7-14V |
| Rated Current | 0.53 (Max: 0.67) A |
| Rated Power | 6.36 (Max: 8.04) W |
| Rated Speed | 0 - 4000 rpm ±10% |
| Max. Air Flow | 119.8 CFM |
| Max. Static Pressure | 12.67 mm/H2O |
| Noise level | 49.5 (Max: 51.5) dBA |
| Life Expectance | 70000 h at 40 degrees celcius |
| Connection | 4-Pin PWM |
| Other Features | Tachometer Output, Auto Start, Soft Start, Waterproof Level IP22 |
| Antal pr. pakke | 1 stk |
| Driftstemperatur (T-T) | -10 - 70 °C |
| Lejetype | Dobbelt kugleleje |
| Maksimal luftstrøm | 119,8 kubikfod/min. |
| Maksimalt lufttryk | 12,67 mmH2O |
| Omdrejningshastighed (maks.) | 4000 rpm |
| Passende til rumtype | Computerkabinet |
| Støjniveau (høj hastighed) | 51,5 dB |
| Støjniveau (lav hastighed) | 30 dB |
| Type | Ventilator |
| Understøttelse af puls-bredde modulering (PWM) | Ja |
| Ventilator diameter | 12 cm |
| Antal blæsere | 1 fan(s) |
| Belysning LED | Ingen |
| Produktfarve | Sort |
| Ventilatorstik | 4-polet |
| Nominel spænding | 7 V |
| Nominel strøm | 0,53 A |
| Spænding | 12 V |
| Strøm (maks.) | 0,67 A |
| Strømforbrug (typisk) | 6,36 W |
| Bredde | 120 mm |
| Dybde | 25 mm |
| Højde | 120 mm |
| Vægt | 200 g |
| Compliance-certifikater | CE, RoHS |
