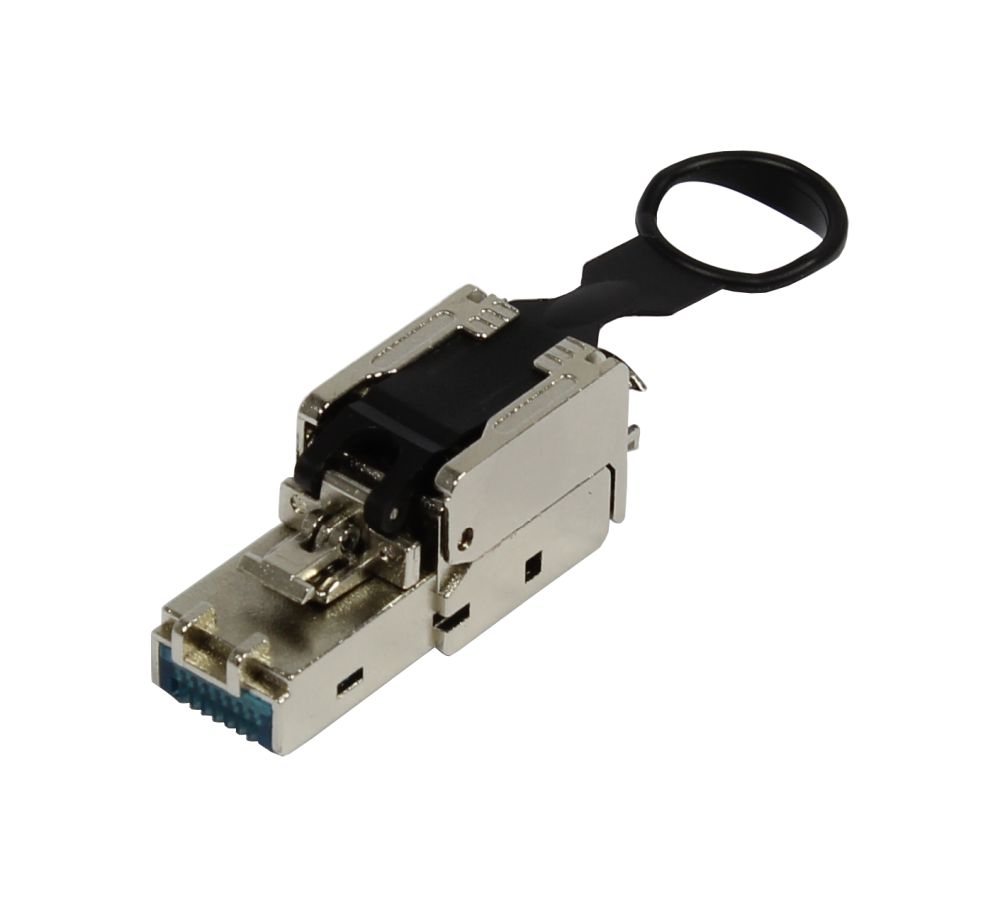

TP connector TP, field assembly, CAT6A, RJ45, tool-free, Synergy 21
In addition to excellent transmission values, the Synergy 21 field-assembly connector offers the advantage of quick and easy assembly in the field
Availability: In stock
["In addition to excellent transmission values, the Synergy 21 field-assembly connector offers the advantage of quick and easy assembly in the field", "without special tools. The sturdy zinc die-cast housing ensures the best EMC properties, especially in industrial environments. Insulation displacement technology and low contact resistance ensure the most secure contacting of connecting cables up to 8.5mm thick with cross-sections AWG22", "AWG26. Fully shielded housing made of die-cast zinc with release tab (push/pull) Compact cable pre-sorter for star cables: 1/22AWG (0.65mm", "1/26AWG(0.4mm) ID:1.1-1.6mm Flexible Cable: 7/24AWG(7/0.2mm)", "7/26AWG(7/0.16mm) ID:1.1mm Pair management according to TIA/EIA 568 A/B color codes Suitable for cable diameters from 5.0 .. 8.5mm Strain relief using cable ties"]
Specifications
| Feature 1 | In addition to excellent transmission values, the Synergy 21 field-assembly connector offers the advantage of quick and easy assembly in the field |
| Feature 2 | without special tools. The sturdy zinc die-cast housing ensures the best EMC properties, especially in industrial environments. Insulation displacement technology and low contact resistance ensure the most secure contacting of connecting cables up to 8.5mm thick with cross-sections AWG22 |
| Feature 3 | AWG26. Fully shielded housing made of die-cast zinc with release tab (push/pull) Compact cable pre-sorter for star cables: 1/22AWG (0.65mm |
| Feature 4 | 1/26AWG(0,4mm) ID: 1,1-1,6mm Flexibles Kabel: 7/24AWG(7/0,2mm) |
| Feature 5 | 7/26AWG(7/0.16mm) ID: 1.1mm pair management according to TIA/EIA 568 A/B color codes Suitable for cable diameters from 5.0 .. 8.5mm Strain relief using cable ties |
