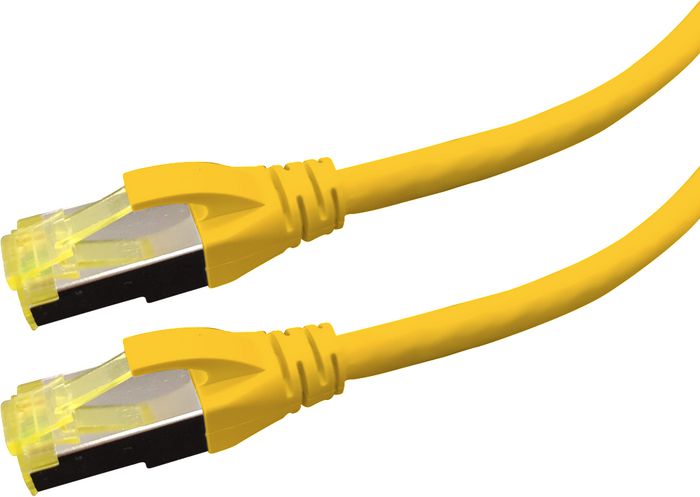

LOGON PREMIUM CAT6A S/FTP LSOH 2M Yellow
Model: Logon Premium APR6A020Y CAT6A S/FTP 26AWG 4PAIR LSOH Patch Cable 2m Yellow Specifications CONSTRUCTION Conductor Material: Stranded AWG 26 bare copper Cable AWG: 7/0.16 mm Shield Overlap: Aluminum/polyester ‰¥25% Braid Shield Coverage: Aluminum Magnesium Alloy wire ‰¥40% Insulations Materials: SKIN-FOAM- SKIN Insulations Nom. Thickness: 0.26 Insulations Diameter: 1.02 (±0.05mm) Outer Jacket: LSZH Jacket Nom. Thickness: 0.5 Jacket Diameter: 6.2 (±0.30mm) Lenght: 2 meter Color: Yellow ELECTRONIC PERMORMANCE Max. Conductor: DC Resistance: 148 (Ω/km) Min. Insulation Resistance: 5000 (Ω/km) Dielectric Strength: DC-1KV/1 Min 1.0-250MHZ Characteristic Impedance 100±15 (ohms) 1.0-500MHZ Delay Skew ‰¤45 (ns/100m) Pair to Ground Capacitance Unbalance ‰¤330 (Pf/100m) Resistance Unbalance between pairs ‰¤4 (%) Max Mutual Capacitance 5.6 (nF/100m) Before Aging Tensile Strength ‰¥9 (Mpa) Before Elongation ‰¥100(%) After Aging 100°C*24h*7d Tensile Strength ‰¥75% After Aging 100°C*24
Availability: In stock
Model: Logon Premium APR6A020Y CAT6A S/FTP 26AWG 4PAIR LSOH Patch Cable 2m Yellow Specifications CONSTRUCTION Conductor Material: Stranded AWG 26 bare copper Cable AWG: 7/0.16 mm Shield Overlap: Aluminum/polyester ‰¥25% Braid Shield Coverage: Aluminum Magnesium Alloy wire ‰¥40% Insulations Materials: SKIN-FOAM- SKIN Insulations Nom. Thickness: 0.26 Insulations Diameter: 1.02 (±0.05mm) Outer Jacket: LSZH Jacket Nom. Thickness: 0.5 Jacket Diameter: 6.2 (±0.30mm) Lenght: 2 meter Color: Yellow ELECTRONIC PERMORMANCE Max. Conductor: DC Resistance: 148 (Ω/km) Min. Insulation Resistance: 5000 (Ω/km) Dielectric Strength: DC-1KV/1 Min 1.0-250MHZ Characteristic Impedance 100±15 (ohms) 1.0-500MHZ Delay Skew ‰¤45 (ns/100m) Pair to Ground Capacitance Unbalance ‰¤330 (Pf/100m) Resistance Unbalance between pairs ‰¤4 (%) Max Mutual Capacitance 5.6 (nF/100m) Before Aging Tensile Strength ‰¥9 (Mpa) Before Elongation ‰¥100(%) After Aging 100°C*24h*7d Tensile Strength ‰¥75% After Aging 100°C*24h*7d Before Elongation ‰¥50 Velocity of Propagation NVP 78%
Specifications
| AWG wire size | 26/7 |
| Cable length | 2 m |
| Cable shielding | S/FTP (S-STP) |
| Cable standard | Cat6a |
| Conductor material | Copper |
| Connector 1 | RJ45 |
| Connector 1 gender | Male |
| Connector 2 | RJ45 |
| Connector 2 gender | Male |
| Halogen-free | Yes |
| Product colour | Yellow |
| Brand Name | LOGON PREMIUM |
| Warranty | 2 years |
