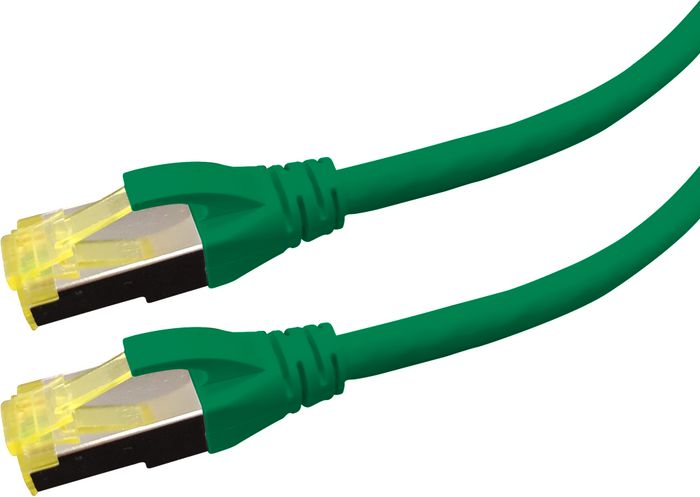

LOGON PREMIUM CAT6 S/FTP LSOH 3M Green
Model: Logon Premium APR6030G CAT6 S/FTP 26AWG 4PAIR LSOH Patch Cable 5m Green Specifications CONSTRUCTION Conductor Material: Stranded AWG 26 bare copper Cable AWG: 7/0.16 mm Shield Overlap: Aluminum/polyester ‰¥25% Braid Shield Coverage: Aluminum Magnesium Alloy wire ‰¥40% Insulations Materials: SKIN-FOAM- SKIN Insulations Nom. Thickness: 0.26 Insulations Diameter: 1.02 (±0.05mm) Outer Jacket: LSZH Jacket Nom. Thickness: 0.5 Jacket Diameter: 6.2 (±0.30mm) Lenght: 3 meter Color: Green ELECTRONIC PERMORMANCE Max. Conductor DC Resistance: 148 (Ω/km) Min. Insulation Resistance: 5000 (Ω/km) Dielectric Strength: DC-1KV/1 Min 1.0-250MHZ Characteristic Impedance: 100±15 (ohms) 1.0-500MHZ Delay Skew: ‰¤45 (ns/100m) Pair to Ground Capacitance Unbalance: ‰¤330 (Pf/100m) Resistance Unbalance between pairs: ‰¤4 (%) Max Mutual Capacitance: 5.6 (nF/100m) Before Aging Tensile Strength: ‰¥9 (Mpa) Before Elongation: ‰¥100(%) After Aging 100°C*24h*7d Tensile Strength: ‰¥75% After Aging 100°C
Availability: In stock
Model: Logon Premium APR6030G CAT6 S/FTP 26AWG 4PAIR LSOH Patch Cable 5m Green Specifications CONSTRUCTION Conductor Material: Stranded AWG 26 bare copper Cable AWG: 7/0.16 mm Shield Overlap: Aluminum/polyester ‰¥25% Braid Shield Coverage: Aluminum Magnesium Alloy wire ‰¥40% Insulations Materials: SKIN-FOAM- SKIN Insulations Nom. Thickness: 0.26 Insulations Diameter: 1.02 (±0.05mm) Outer Jacket: LSZH Jacket Nom. Thickness: 0.5 Jacket Diameter: 6.2 (±0.30mm) Lenght: 3 meter Color: Green ELECTRONIC PERMORMANCE Max. Conductor DC Resistance: 148 (Ω/km) Min. Insulation Resistance: 5000 (Ω/km) Dielectric Strength: DC-1KV/1 Min 1.0-250MHZ Characteristic Impedance: 100±15 (ohms) 1.0-500MHZ Delay Skew: ‰¤45 (ns/100m) Pair to Ground Capacitance Unbalance: ‰¤330 (Pf/100m) Resistance Unbalance between pairs: ‰¤4 (%) Max Mutual Capacitance: 5.6 (nF/100m) Before Aging Tensile Strength: ‰¥9 (Mpa) Before Elongation: ‰¥100(%) After Aging 100°C*24h*7d Tensile Strength: ‰¥75% After Aging 100°C*24h*7d Before Elongation: ‰¥50 Velocity of Propagation NVP: 78%
Specifications
| AWG wire size | 26/7 |
| Cable length | 3 m |
| Cable shielding | S/FTP (S-STP) |
| Cable standard | Cat6 |
| Conductor material | Copper |
| Connector 1 | RJ45 |
| Connector 1 gender | Male |
| Connector 2 | RJ45 |
| Connector 2 gender | Male |
| Halogen-free | Yes |
| Product colour | Green |
| Brand Name | LOGON PREMIUM |
| Warranty | 2 years |
