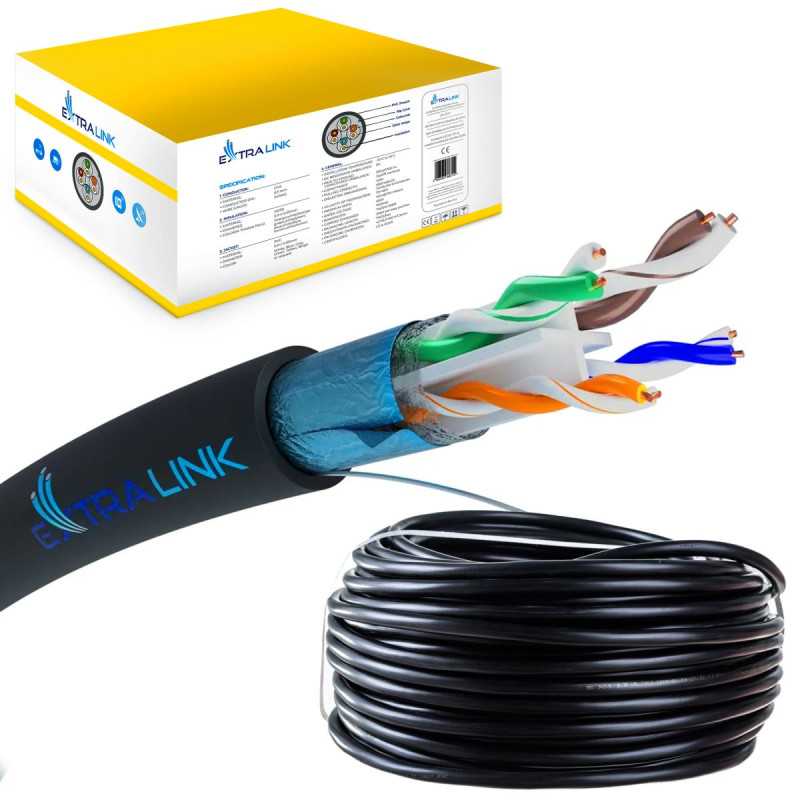

Extralink Cat. 6 FTP/UTP Waterproof Cat. 6 F/UTP copper twisted pair by Extralink is intended for outdoor applications. It is made of four pairs of twisted copper wires, which are color-coded and secured with waterproof tape. The cable is shielded with aluminum-polymer foil. The outer PE coating is 0.6 mm thick. The cable complies with numerous standards and meets the cabling requirements of ISO/IEC 11801-1, EN 50173-1, ANSI/TIA-568-C.2 and IEC 61156-5, EN 50288-6-1. Application of cat. 6 F/UTP 4PR 23/1 AWG PE cable Cables in this category are protected against moisture and are ideal for use in outdoor installations, e.g. in telephone ducts, collectors, as well as on building walls in conditions of increased electromagnetic influence. The construction of the cable and the use of water-blocking tape provide protection against moisture in outdoor environments. The cable operates at frequencies up to 250 MHz. Compatible with PBX, V.11, X.21, ISDN, Ethernet (10Base-T), ATM-25/52/155 Mbit/s, 100VG-AnyLAN, Fast Ethernet (100BASE-TX), Token Ring 16/100 Mbit/s, Firewire 100 Mbit/s, 1000BASE-T, 2.5GBASE-T, 5GBASE-T, 10GBASE-T, HDBaseT, PoE, PoE+, PoE++. The cable has good mechanical properties and electrical characteristics and has a wide operating temperature range. During installation - bending radius ≥10 diameters, temperature from -15°C to 60°C After installation - bending radius ≥4 cable diameters, temperature from -50°C to 60°C Tensile stress ≤85 N Layered F/UTP cable construction for full protection The nominal cable diameter is 7.8 mm. Thanks to its complex structure, the cable meets the standards of Cat. 6 F/UTP: Conductor - conductors made of soft copper wire with a diameter of 0.54 mm/23 AWG. HDPE insulation with a cross-section of 1.07 mm. A pair consists of two insulated conductors twisted together in standard identification colors: white-blue and blue, white-orange and orange, white-green and green, white-brown and brown HDPE layer 4×4 mm Core protection layer - waterproof tape Tinned copper contact wire, 0.4 mm thick Core cover - aluminum-polymer foil screen (metal on the outside) 0.6 mm thick PE layer jacket The cable allows for a wide range of applications and ensures high resistance to water when its ends are properly insulated.
