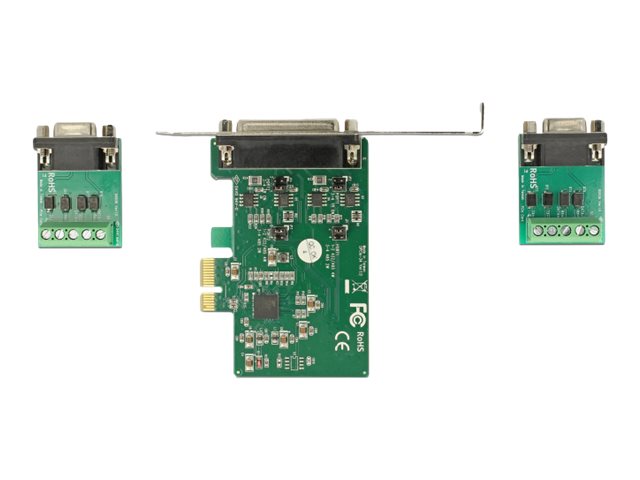

DeLock PCI Express Card > 2 x Serial RS-422/485 Seriel adapter PCI Express 2.0 x1 1Mbps
€96,11
Delock PCI Express Card > 2 x Serial RS-422/485 - Seriel adapter - PCIe 2.0 - RS-422/485
Availability: In stock
Secure payment · Fast delivery
EAN:4043619658411Categories:, , Brand:
Delock PCI Express Card > 2 x Serial RS-422/485 - Seriel adapter - PCIe 2.0 - RS-422/485
Specifications
Specifications
| Produktbeskrivelse | Delock PCI Express Card > 2 x Serial RS-422/485 - seriel adapter - PCIe 2.0 - RS-422/485 |
| Enhedstype | Seriel adapter |
| Model | Indstikskort |
| Grænseflade (bus) type | PCI Express 2.0 x1 |
| PCI-specifikationsrevision | PCIe 2.0 |
| Porte | RS-422/485 |
| Dimensioner (B x D x H) | 1.2 cm x 9.1 cm x 6.4 cm |
| Dataforbindelsesprotokol | RS-422, RS-485 |
| Dataoverførselshastighed | 1 Mbps |
| Processor | 1 x Exar XR17V352 |
| Systemkrav | Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits) |
| Device Type | Serial adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 2.0 x1 |
| PCI Specification Revision | PCIe 2.0 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-422, RS-485 |
| Data Transfer Rate | 1 Mbps |
| Features | Flow control, 15 KV Electrostatic Discharge Protection, 256-byte FIFO |
| Ports | RS-422/485 |
| Interfaces | 1 x RS-422/485 - 25 pin D-Sub (DB-25) | 2 x RS-422/485 - 9 pin D-Sub (DB-9) (on cable) |
| Cables Included | 1 x serial cable (external) - 30 cm |
| Included Accessories | Low-profile bracket, 4 x jumpers, 2 x DB9 to 5 pin terminal blocks |
| OS Required | Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits) |
| Software Included | Drivers & Utilities |
| Depth | 9.1 cm |
| Height | 6.4 cm |
| Width | 1.2 cm |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -30 °C |
