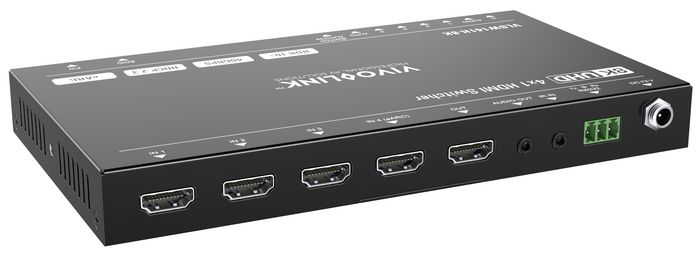

Vivolink HDMI switcher 4x1 (8K@60Hz)
The VLSW141H-8K is a high-performance 4x1 HDMI switch, designed to manage multiple HDMI sources with ease. It supports HDMI 40Gbps bandwidth, enabling resolutions up to 8K@60Hz with 4:2:0 chroma subsampling and HDR+, ensuring exceptional video quality. The device is HDCP 2.3 compliant, ensuring compatibility with the latest content protection standards. Key features include smart EDID management for seamless integration with various display devices, support for Audio Return Channel (eARC), and audio de-embedding capabilities, allowing extraction of audio signals for separate processing. The switcher offers both automatic and manual switching modes, providing flexibility in source selection. Its ultra-slim design facilitates easy installation in diverse environments.
Availability: In stock
The VLSW141H-8K is a high-performance 4x1 HDMI switch, designed to manage multiple HDMI sources with ease. It supports HDMI 40Gbps bandwidth, enabling resolutions up to 8K@60Hz with 4:2:0 chroma subsampling and HDR+, ensuring exceptional video quality. The device is HDCP 2.3 compliant, ensuring compatibility with the latest content protection standards. Key features include smart EDID management for seamless integration with various display devices, support for Audio Return Channel (eARC), and audio de-embedding capabilities, allowing extraction of audio signals for separate processing. The switcher offers both automatic and manual switching modes, providing flexibility in source selection. Its ultra-slim design facilitates easy installation in diverse environments.
Specifications
| Audio formats supported | PCM |
| Audio output channels | 2.0 channels |
| Bandwidth | 40 Gbit/s |
| Consumer Electronics Control (CEC) support | Yes |
| Extended display identification data (EDID) | Yes |
| HD type | 8K Ultra HD |
| HDCP | Yes |
| HDCP version | 2.3 |
| High Dynamic Range (HDR) supported | Yes |
| LED indicators | Yes |
| Maximum frame rate | 60 fps |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 7680 x 4320 pixels |
| Plug and Play | Yes |
| Product colour | Black |
| Remote control type | IR + RS232 |
| Operating temperature (T-T) | -5 - 55 °C |
| AC adapter included | Yes |
| Manual | Yes |
| Mounting brackets included | Yes |
| Packaging content | 1x 8K UHD 4x1 HDMI Switcher, 1x IR Receiver, 1x IR Remote, 1x Power Adapter (12V DC 1A), 1x RS232 Cable (3-pin terminal block to DB9), 1x User Manual, 2x Mounting Ears with 2x Screws, 4x Rubber feet |
| Remote control included | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Audio (L/R) out | 1 |
| HDMI in | 4 |
| HDMI ports quantity | 5 |
| HDMI version | 2.1 |
| Number of HDMI outputs | 1 |
| RS-232 ports | 1 |
| S/PDIF out port | No |
| Video port type | HDMI |
| AC input voltage | 100 - 240 V |
| Audio support | Yes |
| Brand Name | Vivolink |
| Warranty | 5 years |
| Dimensions (WxDxH) | 188mm x 105mm x 21 mm |
| Empty weight | 415 g |
