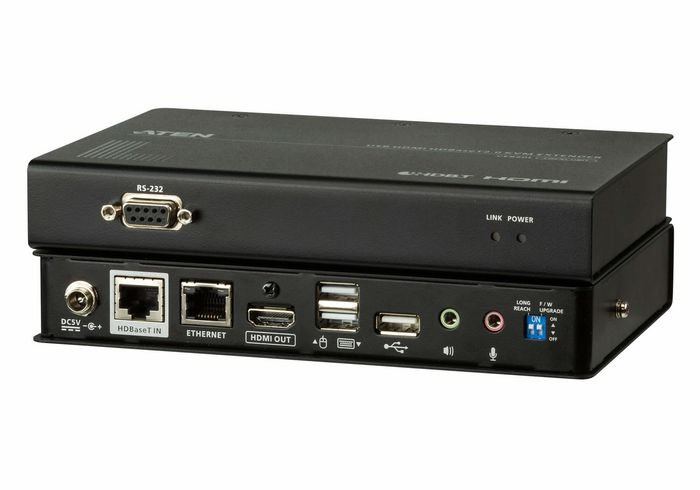

Aten USB, HDMI HDBaseT2.0 KVM Extender, Ethernet Port
The ATEN CE820 USB HDMI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE820 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations. 1x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit) 1x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit) 1x LIN5-28V1-V11G HDMI KVM Cable Set (HDMI, USB, Audio; 1.8m/6ft) 2x 0AD6-1F05-26EG Power Adapters 2x Mounting Kits 1x User Instructions
Availability: In stock
The ATEN CE820 USB HDMI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE820 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations. 1x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit) 1x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit) 1x LIN5-28V1-V11G HDMI KVM Cable Set (HDMI, USB, Audio; 1.8m/6ft) 2x 0AD6-1F05-26EG Power Adapters 2x Mounting Kits 1x User Instructions
Specifications
| Cable types supported | Cat5e, Cat6, Cat6a |
| Connectivity technology | Wired |
| LED indicators | Link, Power, Video |
| Material | Metal |
| Maximum digital resolution | 4096 x 2160 pixels |
| Maximum transfer distance | 150 m |
| Product colour | Black |
| Rack mounting | Yes |
| Type | Transmitter & receiver |
| Operating relative humidity (H-H) | 0 - 80 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| PC Audio in | Yes |
| PC Audio out | Yes |
| USB 2.0 ports quantity | 4 |
| AC adapter output voltage | 5 V |
| Power consumption (receiver) (max) | 5,37 W |
| Power consumption (transmitter) (max) | 2,87 W |
| Receiver local keyboard/mouse port type | USB |
| Receiver local video port type | HDMI |
| RJ-45 ports quantity (receiver) | 1 |
| RJ-45 ports quantity (transmitter) | 1 |
| Transmitter local keyboard/mouse port type | USB |
| Transmitter local video port | Yes |
| Transmitter local video port type | HDMI |
| Transmitter video port type | HDMI |
| Brand Name | Aten |
| Warranty | 2 years |
| Receiver depth | 12,19 cm |
| Receiver height | 2,87 cm |
| Receiver weight | 650 g |
| Receiver width | 18,2 cm |
| Transmitter depth | 12,19 cm |
| Transmitter height | 2,87 cm |
| Transmitter weight | 630 g |
| Transmitter width | 18,2 cm |
