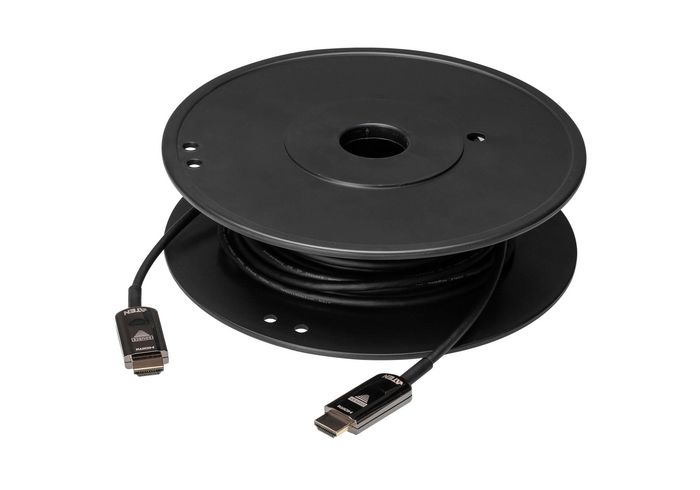

Aten HDMI-A/HDMI-A, 10m, 4096 x 2160, 60Hz, Black
ATEN VE781010 True 4K HDMI 2.0 Active Optical Cable utilizes AOC technology that enables conversion between input signals and optical signals for optimum high bandwidth data transmissions. The EMI-resistant optical cables come in 10m with full support of True 4K resolutions. It is fully compliant with HDCP 2.2 standards and meets HDMI 2.0 specifications including 3D, deep color, and data rates up to 18 Gbps. Supported Dolby True HD and DTS-HD Master Audio, the optical cables guarantee lossless audio signal transmissions. The VE781010 optical cable is an ideal solution for extending the reach of your digital signage in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.
Availability: In stock
ATEN VE781010 True 4K HDMI 2.0 Active Optical Cable utilizes AOC technology that enables conversion between input signals and optical signals for optimum high bandwidth data transmissions. The EMI-resistant optical cables come in 10m with full support of True 4K resolutions. It is fully compliant with HDCP 2.2 standards and meets HDMI 2.0 specifications including 3D, deep color, and data rates up to 18 Gbps. Supported Dolby True HD and DTS-HD Master Audio, the optical cables guarantee lossless audio signal transmissions. The VE781010 optical cable is an ideal solution for extending the reach of your digital signage in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.
Specifications
| 3D | Yes |
| Audio Return Channel (ARC) | Yes |
| Bandwidth | 600 MHz |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable length | 10 m |
| Certification | CE / FCC/ REACH / UL VW-1/ EMC Class-A / Class-B |
| Connector 1 | HDMI Type A (Standard) |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 | HDMI Type A (Standard) |
| Connector 2 form factor | Straight |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Data transfer rate | 18 Gbit/s |
| Dolby technologies | Dolby TrueHD, DTS-HD Master Audio |
| HDCP | Yes |
| HDCP version | 2.2 |
| HDMI version | 2.0 |
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
| Quantity per pack | 1 pc(s) |
| RoHS compliance | Yes |
| Supported graphics resolutions | 3840 x 2160 |
| Master (outer) case gross weight | 3850 g |
| Master (outer) case height | 26,3 cm |
| Master (outer) case length | 39 cm |
| Master (outer) case net weight | 3450 g |
| Master (outer) case width | 24 cm |
| Products per master (outer) case | 5 pc(s) |
| Operating relative humidity (H-H) | 0 - 85 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Compliance certificates | RoHS |
| Sustainability certificates | RoHS |
| Brand Name | Aten |
| Warranty | 2 years |
| Cable diameter | 4,5 mm |
