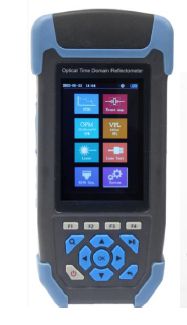

Lanview the new fiber tester Ideal for troubleshooting on fiber network
Mini-Pro OTDR is apply to FTTx and access network construction and maintenance, to test fiber breakpoint , length, loss and input light automatic detection, automatic test by one key. The tester is compact with 3.5inch colorful LCD screen, new plastic shell design, shock-proof and drop-proof. The tester also combine 8 functions with highly integrated OTDR, Event maps, Stable Light source , Optical power meter, Visual fault locator , RJ45cable sequence , IL and lighting functions. It could quick detection of breakpoint, universal connector, .600 internal storage, TF card, USB data storage and built-in 4000mAh lithium battery, USB charging .It is a good choice for long term field work .
Availability: In stock
Mini-Pro OTDR is apply to FTTx and access network construction and maintenance, to test fiber breakpoint , length, loss and input light automatic detection, automatic test by one key. The tester is compact with 3.5inch colorful LCD screen, new plastic shell design, shock-proof and drop-proof. The tester also combine 8 functions with highly integrated OTDR, Event maps, Stable Light source , Optical power meter, Visual fault locator , RJ45cable sequence , IL and lighting functions. It could quick detection of breakpoint, universal connector, .600 internal storage, TF card, USB data storage and built-in 4000mAh lithium battery, USB charging .It is a good choice for long term field work .
Specifications
| Products per master (outer) case | 18 pc(s) |
| Quantity per pack | 1 pc(s) |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -40 -70 °C |
| AC adapter included | Yes |
| Batteries included | Yes |
| Standby time | 20 h |
| Built-in display | Yes |
| Calibrated wavelengths | 1300, 1310, 1490, 1550, 1625, 850 |
| Display type | LCD |
| Easy to use | Yes |
| Fiber mode structure | Multi-mode, Single-mode |
| Maximum cable length | 60000 m |
| RoHS compliance | Yes |
| Supported connectors | SC, ST |
| Test type | Transmission testing |
| USB port | Yes |
| Wavelength range | 800-1700 nm |
| Brand Name | Lanview |
| Warranty | 3 years |
| Dimensions (WxDxH) | 175x82x42 mm |
