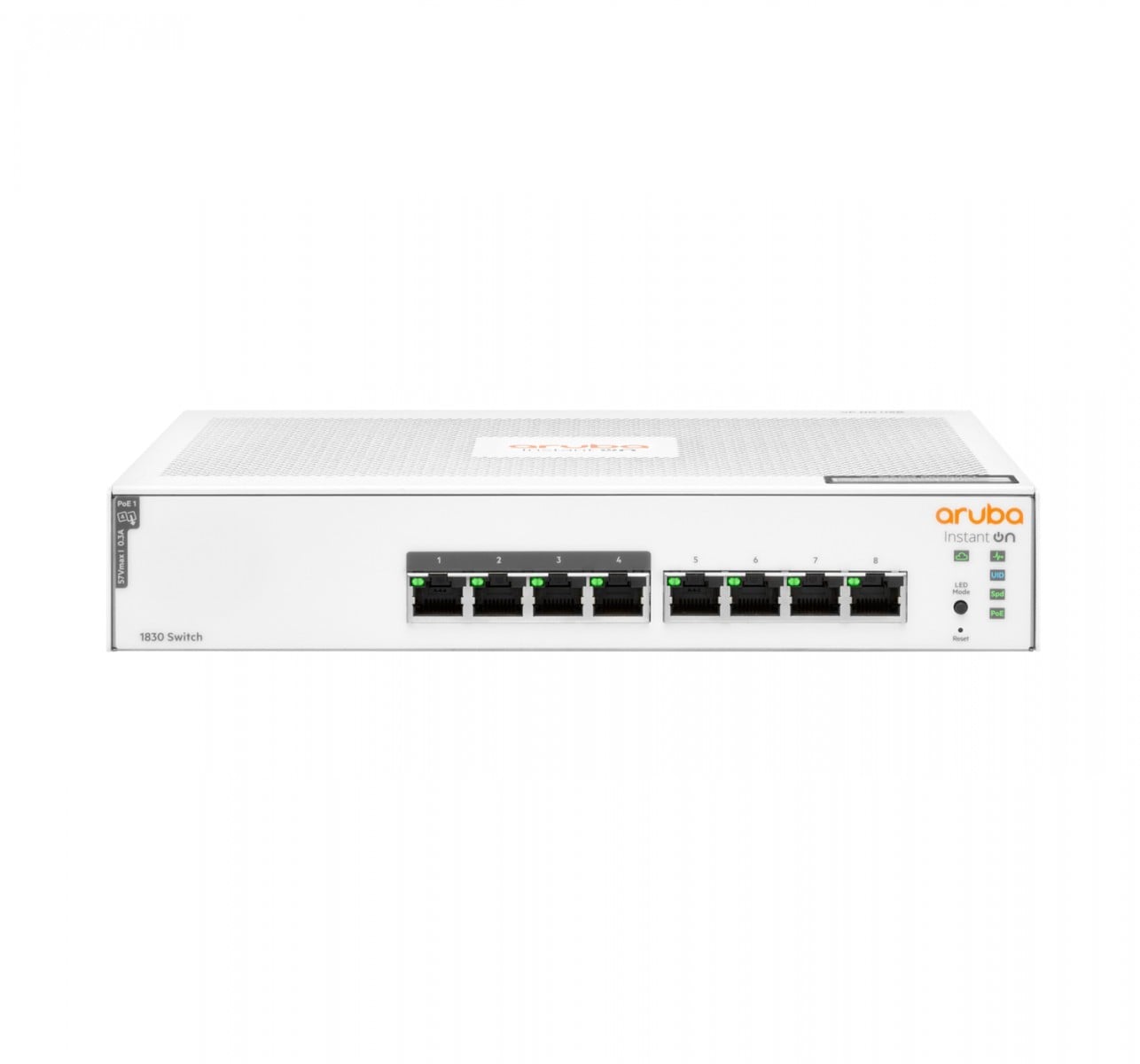

HPE Aruba Instant On 1830 8G 4p Class4 65W Switch 8-port Gigabit PoE+
- HPE Networking Instant On 1830 8G 4p Class4 PoE 65W Switch Switch smart 4 x 10/100/1000 + 4 x 10/100/1000 (PoE+) desktop, rack-mountable PoE+ (65 W)
Availability: In stock
Product description: HPE Networking Instant On 1830 8G 4p Class4 PoE 65W Switch - switch - 8 ports - smart - rack mountable Device type: Switch - 8 ports - smart Package type: Mountable on rack 1U Subtype: Gigabit Ethernet Ports: 4 x 10/100/1000 + 4 x 10/100/1000 (PoE+) Power Over Ethernet (PoE): PoE+ PoE budget: 65 W Performance: Latency (100 Mbps): 5.2 µs Latency (1 Gbps): 2.8 µs Capacity: 11.9 Mpps Switching capacity: 16 Gbps MAC address table size: 8000 entries Jumbo frame support: 9216 bytes Routing protocol: IGMP, IGMPv2 Remote management protocol: HTTP, HTTPS, ICMP, SNMP 1, SNMP 2c, SCP, TFTP Features: Auto-sensing per device, 1.5 MB packet buffer, fanless, for wall mounting, Cable Diagnostics Function, result register, Syslog supported, dual image support, EEE, SCP, Global Storm Control, BPDU Filter, DoS protection, data transport, IGMP snooping, Link Aggregation, LLDP support, loop protection, port mirroring, STP support, TPM, VLAN supported, Port Scheduling, auto-negotiation, auto-uplink (auto MDI/MDI-X), CoS, cloud managed, DHCP client, firmware upgradeable, QoS, SNTP supported Compliance Standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1w, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3az, IEEE 802.3at Power: AC 100-240 V (50/60 Hz) Dimensions (W x D x H): 24.51 cm x 19.51 cm x 4.39 cm Weight: 1.54 kg Manufacturer's Warranty: Limited Lifetime Warranty
Specifications
| Characteristics | Auto-sensing per device, 1.5 MB packet buffer, fanless, for wall mounting, Cable Diagnostics Function, result register, Syslog supported, dual image support, EEE, SCP, Global Storm Control, BPDU Filter, DoS protection, data transport, IGMP snooping, Link Aggregation, LLDP support, loop protection, port mirroring, STP support, TPM, VLAN supported, Port Scheduling, auto-negotiation, auto-uplink (auto MDI/MDI-X), CoS, cloud-managed, DHCP client, firmware upgradeable, QoS, SNTP-unders |
| Device type | Switch - 8 ports - smart |
| Flash memory | 256MB |
| Jumbo frame support | 9216 bytes |
| Encryption algorithm | SSL |
| MAC address table size | 8000 entries |
| Compliance Standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1w, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3az, IEEE 802.3at |
| Packing type | Desktop, mountable on stand 1U |
| PoE budget | 65W |
| Gates | 4 x 10/100/1000 + 4 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| Performance | Latency (100 Mbps): 5.2 µs | Latency (1 Gbps): 2.8 µs | Capacity: 11.9 Mpps | Switching capacity: 16 Gbps |
| Processor | 1 x ARM: 800 MHz |
| Protocol for remote administration | HTTP, HTTPS, ICMP, SNMP 1, SNMP 2c, SCP, TFTP |
| RAM | 512 MB SDRAM |
| Routing protocol | IGMP, IGMPv2 |
| Status indicators | Port status, link/activity, speed, port duplex mode |
| Subtype | Gigabit Ethernet |
| Interface | 4 x 1000Base-T RJ-45 | 4 x 1000Base-T RJ-45 PoE+ |
| Necessary tension | AC 100-240 V (50/60 Hz) |
| Power unit | Internal power supply |
| Power consumption during operation | 86.07 watts |
| MTBF (expected time between failures) | 105.9 years |
| Compliance Standards | AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 62368-1 Second Edition, CAN/CSA-C22.2 No. 62368-1 Third Edition, CISPR 32 Class A, CISPR 35, CNS 13438 Class A, EN 55032:2015, EN 55035, FCC CFR47 Part 15 B Class A 2018, ICES-003 Class A, IEC 61000-3-2, IEC 61000-3-3, IEC 62368-1 Second Edition, IEC 62368-1 Third Edition, IEC/EN 60825-1:2014 Class 1, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, KN32 Class A, KN35, UL 62368-1 Second Edition, UL 62368-1 Third Edition, IEC/EN 61000-4-11, IEC |
| Width | 24.51 cm |
| Depth | 19.51 cm |
| Height | 4.39 cm |
| Weight | 1.54 kg |
| Service & Support | Limited Warranty - Lifetime | Technical Support - Live Chat - Lifetime | Technical support - telephone advice - 90 days from the date of purchase |
| Humidity level during use | 15 - 95% (non-condensing) |
| Storage humidity level | 15 - 95% (non-condensing) |
| Max. operating temperature | 40 °C |
| Max. Storage temperature | 70 °C |
| My. operating temperature | 0 °C |
| My. storage temperature | -40 °C |
