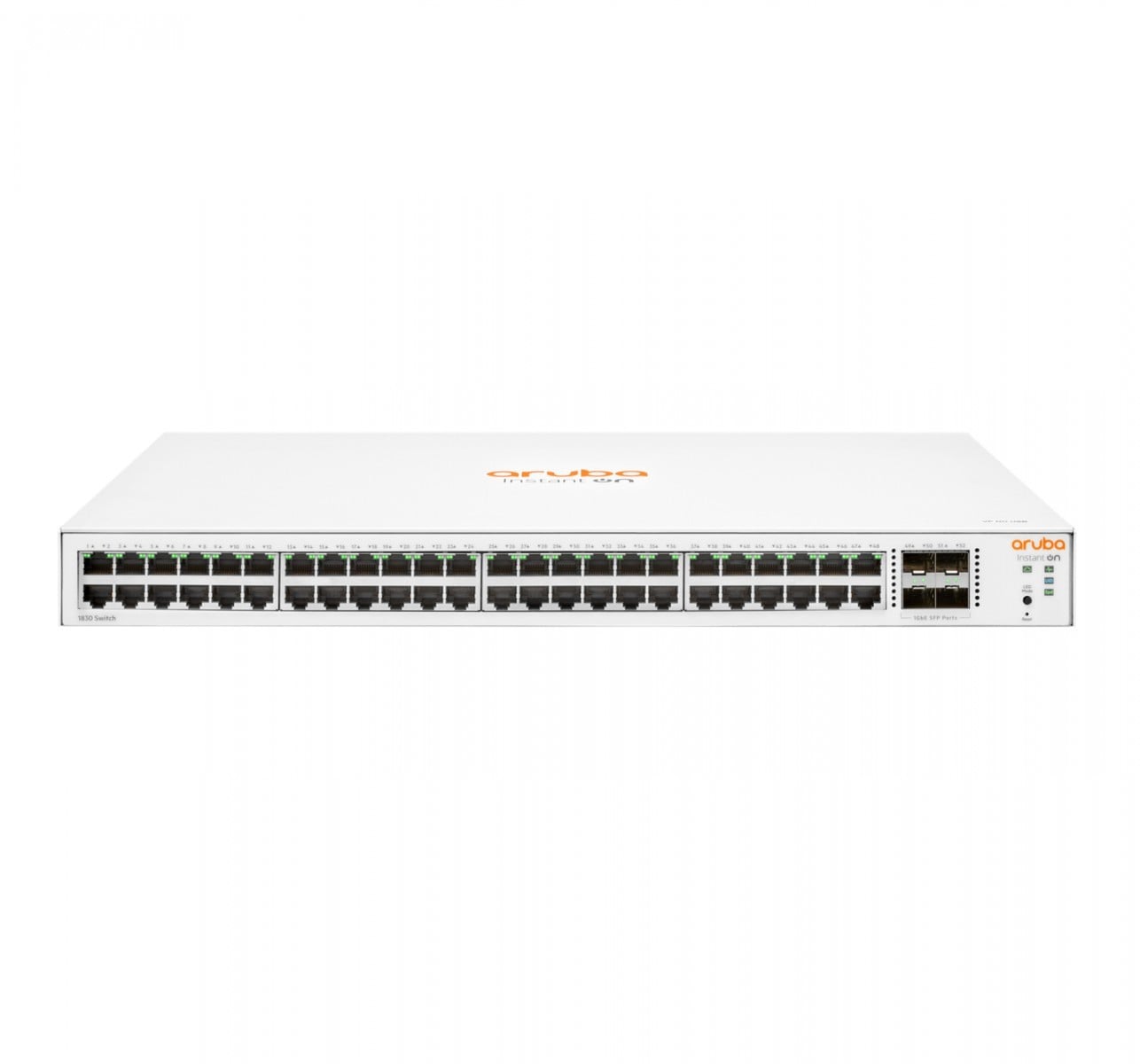

HPE Aruba Instant On 1830 48G 4SFP Switch 48-Port Gigabit Network
- HPE Networking Instant On 1830 48G 4SFP Switch Switch smart 48 x 10/100/1000 + 4 x Gigabit SFP desktop, rack mountable
Availability: In stock
Product description: HPE Networking Instant On 1830 48G 4SFP Switch - switch - 48 ports - smart - rack mountable Device type: Switch - 48 ports - smart Package type: Mountable on rack 1U Subtype: Gigabit Ethernet Ports: 48 x 10/100/1000 + 4 x Gigabit SFP Performance: Latency (100 Mbps): 5.2 µs Latency (1 Gbps): 2.8 µs Capacity: 77.37 Mpps Switching capacity: 104 Gbps MAC address table size: 16,000 entries Jumbo frame support: 9216 bytes Routing protocol: IGMPv2, IGMP Protocol for remote management: SNMP 1, SNMP 2c, HTTP, HTTPS, TFTP, SCP, ICMP Features: Data transport, auto-sensing per device, auto-negotiation, VLAN supported, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog supported, port mirroring, firmware upgradeable, SNTP supported, for wall mounting, STP support, result register, QoS, TPM, Cable Diagnostics Function, LLDP support, DHCP client, CoS, cloud-managed, 1.5 MB packet buffer, SCP, Link Aggregation, dual image support, DoS protection, EEE, BPDU Filter, loop protection, Global Storm Control, Port Scheduling Compliance Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ac, IEEE 802.1ab (LLDP), IEEE 802.3az Power: AC 100-240 V (50/60 Hz) Dimensions (W x D x H): 44.3 cm x 25.3 cm x 4.39 cm Weight: 3.54 kg Localization: English / Europe Manufacturer's Warranty: Limited Lifetime Warranty
Specifications
| Characteristics | Data transport, auto-sensing per device, auto-negotiation, VLAN supported, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog supported, port mirroring, firmware upgradeable, SNTP supported, for wall mounting, STP support, result register, QoS, TPM, Cable Diagnostics Function, LLDP support, DHCP client, CoS, cloud-managed, 1.5 MB packet buffer, SCP, Link Aggregation, dual image support, DoS protection, EEE, BPDU Filter, loop protection, Global Storm Control, Port Scheduling |
| Device type | Switch - 48 ports - smart |
| Flash memory | 256MB |
| Jumbo frame support | 9216 bytes |
| Encryption algorithm | SSL |
| MAC address table size | 16,000 posts |
| Compliance Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ac, IEEE 802.1ab (LLDP), IEEE 802.3az |
| Packing type | Desktop, mountable on stand 1U |
| Gates | 48 x 10/100/1000 + 4 x Gigabit SFP |
| Performance | Latency (100 Mbps): 5.2 µs | Latency (1 Gbps): 2.8 µs | Capacity: 77.37 Mpps | Switching capacity: 104 Gbps |
| Processor | 1 x ARM: 800 MHz |
| Protocol for remote administration | SNMP 1, SNMP 2c, HTTP, HTTPS, TFTP, SCP, ICMP |
| RAM | 512 MB SDRAM |
| Routing protocol | IGMPv2, IGMP |
| Status indicators | Port status, port duplex mode, link/activity, speed |
| Subtype | Gigabit Ethernet |
| Interface | 48 x 1000Base-T RJ-45 | 4 x Gigabit LAN SFP |
| Necessary tension | AC 100-240 V (50/60 Hz) |
| Power unit | Internal power supply |
| Power consumption during operation | 40.2 watts |
| Localization | English / Europe |
| MTBF (expected time between failures) | 144.4 years |
| Compliance Standards | IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032:2015, UL 62368-1 Second Edition, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, IEC/EN 60825-1:2014 Class 1, CISPR 32 Class A, EN 55035, CISPR 35, IEC 62368-1 Second Edition, CAN/CSA-C22.2 No. 62368-1 Third Edition, UL 62368-1 |
| Width | 44.3 cm |
| Depth | 25.3 cm |
| Height | 4.39 cm |
| Weight | 3.54 kg |
| Service & Support | Limited Warranty - Lifetime | Technical Support - Live Chat - Lifetime | Technical support - telephone advice - 90 days from the date of purchase |
| Humidity level during use | 15 - 95% (non-condensing) |
| Storage humidity level | 15 - 95% (non-condensing) |
| Max. operating temperature | 40 °C |
| Max. Storage temperature | 70 °C |
| My. operating temperature | 0 °C |
| My. storage temperature | -40 °C |
