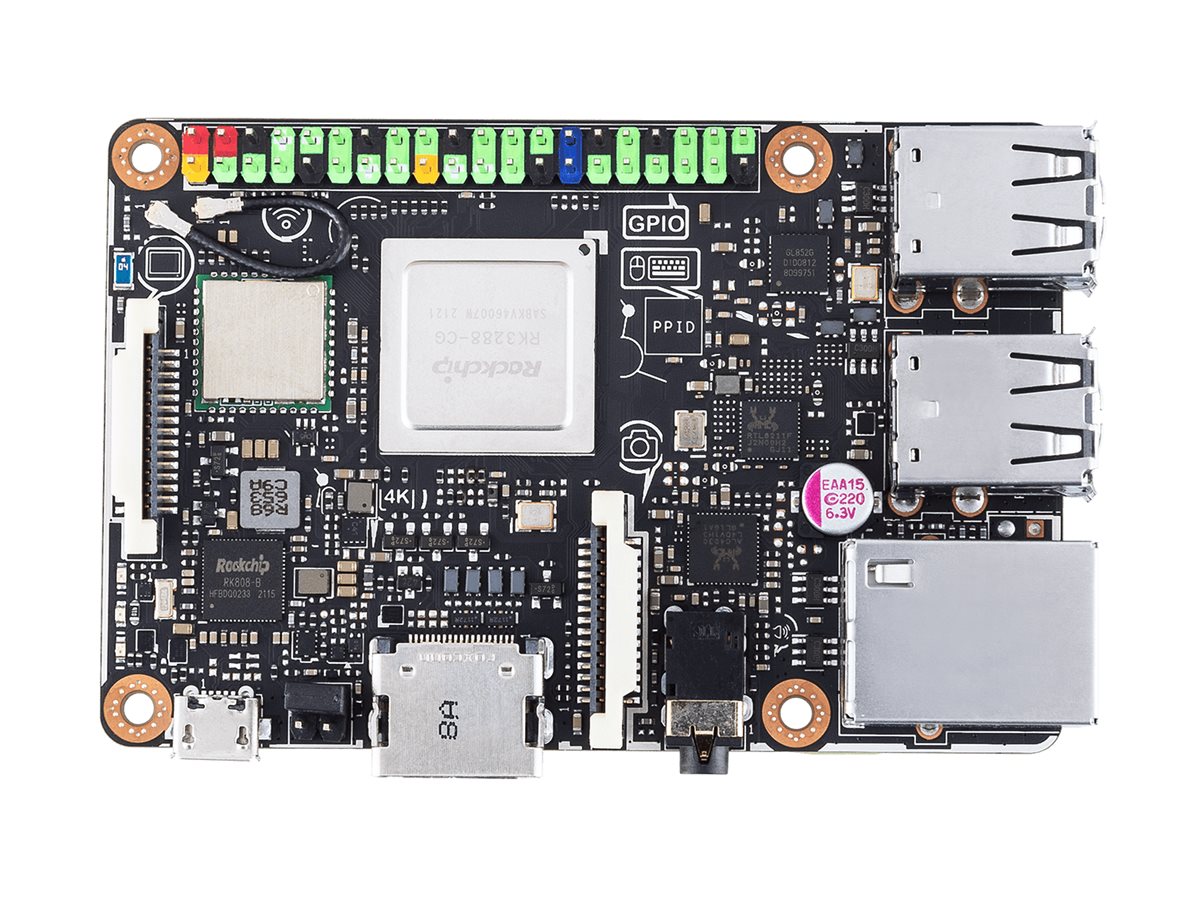

ASUS Tinker Board R2.0 development board Rockchip RK3288
€87,77
ASUS Tinker Board R2.0, Rockchip, Rockchip RK3288, 2 GB, DDR3-SDRAM, Dual-channel, MicroSD (TransFlash)
Availability: In stock
Secure payment · Fast delivery
EAN:4711081466031Categories:, , Brand:
ASUS Tinker Board R2.0. Processor manufacturer: Rockchip, Processor model: Rockchip RK3288. Maximum internal memory: 2 GB, Internal memory type: DDR3-SDRAM, Memory channels: Dual-channel. Wi-Fi standards: 802.11g, Wi-Fi 4 (802.11n), Ethernet interface type: Gigabit Ethernet, Audio port type: 3.5mm. MultiVolt I/Os: 3.3,5 V. Height: 85.5 mm, Weight: 55 g, Width: 54 mm
Specifications
Specifications
| Processor manufacturer | Rockchip |
| Processor model | Rockchip RK3288 |
| Processor cores | 4 |
| Maximum internal memory | 2 GB |
| Internal memory type | DDR3-SDRAM |
| Memory channels | Dual-channel |
| Compatible memory cards | MicroSD (TransFlash) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| USB version | 2.0 |
| USB ports quantity | 4 |
| Audio port type | 3.5mm |
| Bluetooth | Yes |
| Bluetooth version | 4.2+EDR |
| S/PDIF out port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| UART | Yes |
| GPIO interface | Yes |
| I2C interface | Yes |
| MPI DSI interface | Yes |
| MPI CSI interface | Yes |
| Integrated LAN | Yes |
| SPI interface | Yes |
| I2S interface | Yes |
| PCM interface | Yes |
| MultiVolt I/Os | 3.3,5 V |
| Height | 85.5 mm |
| Weight | 55 g |
| Width | 54 mm |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 85 °C |
