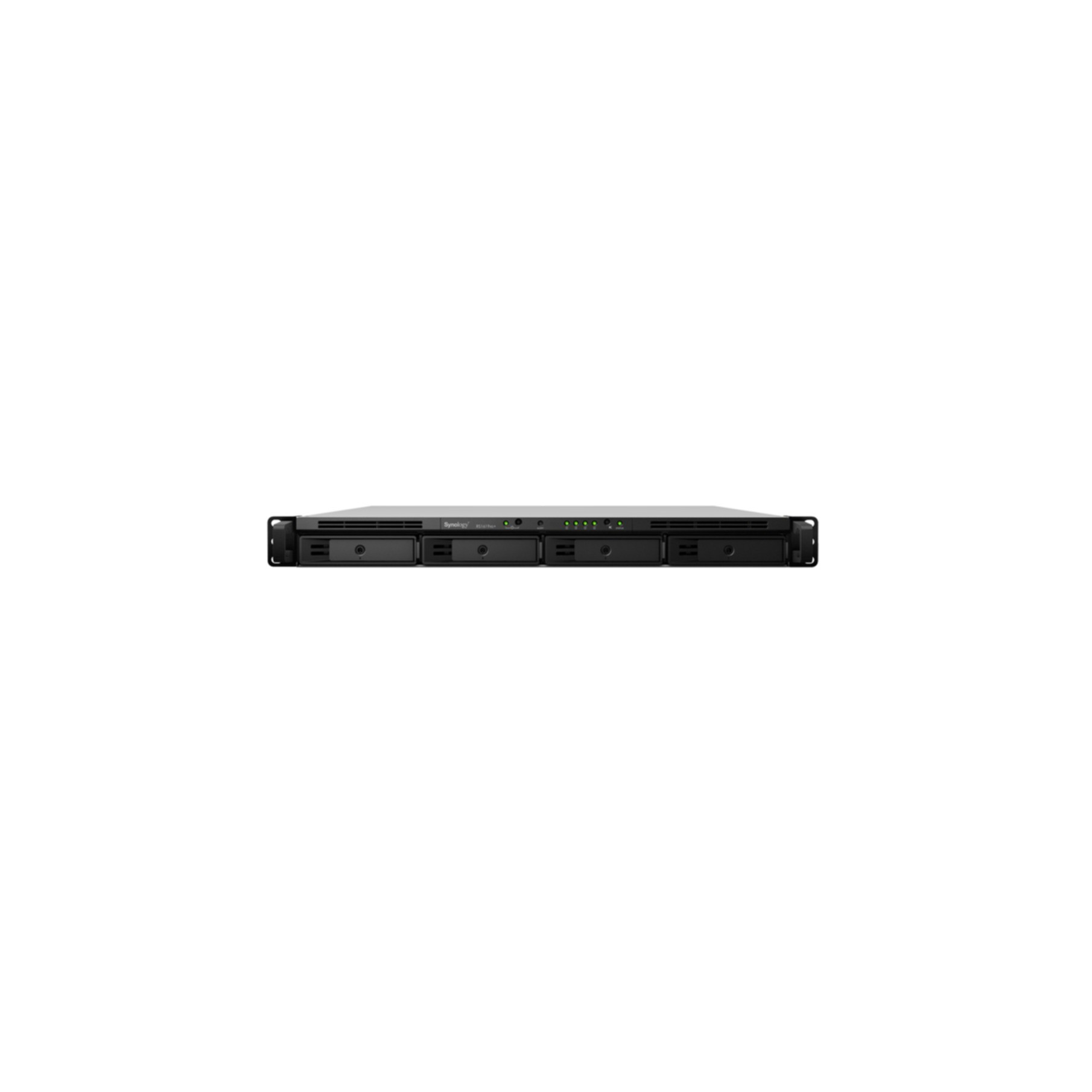

NAS Server Synology RackStation RS1619XS+ 4-Bay NAS-Rack
Synology RackStation RS1619xs+ is a high-performance 1U rackmount NAS with comprehensive storage, data backup, and collaboration applications, suitable for small- to medium-sized businesses. RS1619xs+ simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance. Synology RS1619xs+ is backed by Synology’s 5-year limited warranty. Synology RS1619xs+ is a 1U 4-bay rackmount network attached storage solution equipped with a quad-core processor, 8 GB DDR4 memory (expandable up to 64 GB), and four Gigabit LAN ports. With an optional 10GbE network adapter card installed, RS1619xs+ delivers sequential reading throughput over 1,523 MB/s and 162,097 iSCSI random read IOPS under a RAID 5 configuration. RS1619xs+ comes with two onboard M.2 SSD slots, allowing fast system cache creation with M.2 2280 NVMe/SATA SSDs without occupying internal 3.5" drive bays. RS1619xs+ also provides great flexibility to
Availability: In stock
Synology RackStation RS1619xs+ is a high-performance 1U rackmount NAS with comprehensive storage, data backup, and collaboration applications, suitable for small- to medium-sized businesses. RS1619xs+ simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance. Synology RS1619xs+ is backed by Synology’s 5-year limited warranty. Synology RS1619xs+ is a 1U 4-bay rackmount network attached storage solution equipped with a quad-core processor, 8 GB DDR4 memory (expandable up to 64 GB), and four Gigabit LAN ports. With an optional 10GbE network adapter card installed, RS1619xs+ delivers sequential reading throughput over 1,523 MB/s and 162,097 iSCSI random read IOPS under a RAID 5 configuration. RS1619xs+ comes with two onboard M.2 SSD slots, allowing fast system cache creation with M.2 2280 NVMe/SATA SSDs without occupying internal 3.5" drive bays. RS1619xs+ also provides great flexibility to easily scale up to 16 drives when connected to one Synology RX1217/RX1217RP expansion unit. Storage capacity can be expanded according to your business needs with minimal effort.
Specifications
| Storage drive capacity | 0 GB |
| Storage drive interface | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5, 3.5" |
| Number of M.2 (M & B) slots | 2 |
| RAID support | yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Hot-swap drive bays | yes |
| Supported file systems | BTRFS, Fat, HFS+, NTFS, ext3, ext4 |
| Storage drives installed | no |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 4 |
| Installed storage drive type | no |
| Supported storage drive types | HDD & SSD |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® D |
| Processor model | D-1527 |
| Processor frequency | 2.2 GHz |
| Processor boost frequency | 2.7 GHz |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor cache | 6 MB |
| CPU configuration (max) | 1 |
| ECC supported by processor | yes |
| PCI Express configurations | 1x16, 1x4, 1x8 |
| PCI Express slots version | 2.0, 3.0 |
| Processor cache type | L3 |
| Processor code | SR2DK |
| Processor codename | Broadwell |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon D-1500 |
| Processor socket | BGA 1667 |
| Scalability | 1S |
| Stepping | V2 |
| Thermal Design Power (TDP) | 35 W |
| Maximum internal memory supported by processor | 128 GB |
| Conflict-Free processor | yes |
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 64 GB |
| Memory slots | 4 |
| Ethernet LAN | yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Wi-Fi | no |
| iSCSI support | yes |
| Wake-on-LAN ready | yes |
| Supported network protocols | CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP) |
| Link aggregation | yes |
| USB port | yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 4 |
| Expansion ports quantity | 1 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| Chassis type | Rack (1U) |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Fan diameter | 4 cm |
| LED indicators | Alarm, HDD, Power, Status |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | yes |
| Backup features | Cloud, iSCSI LUN |
| Multilingual support | yes |
| Noise level | 39.3 dB |
| Web-based management | yes |
| Security algorithms | HTTPS, SSH, SSL/TLS |
| Access Control List (ACL) | yes |
| Reset button | yes |
| On/off switch | yes |
| Browser supported | Chrome, Firefox, Internet Explorer 10+, Safari 10+ |
| Operating system installed | DiskStation Manager |
| Windows operating systems supported | Windows 10, Windows 7 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
| Server operating systems supported | Windows Server 2016 |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 150 W |
| Number of power supply units | 2 |
| Power consumption (typical) | 68.68 W |
| Power consumption (HDD standby) | 34.78 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Width | 480 mm |
| Depth | 518.6 mm |
| Height | 44 mm |
| Weight | 8.16 kg |
| Cables included | AC |
| Quick installation guide | yes |
| Embedded options available | yes |
| Enhanced Intel SpeedStep Technology | yes |
| Execute Disable Bit | yes |
| Idle States | yes |
| Intel 64 | yes |
| Intel Enhanced Halt State | yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Trusted Execution Technology | yes |
| Intel TSX-NI | yes |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | yes |
| Intel VT-x with Extended Page Tables (EPT) | yes |
| Intel® AES New Instructions (Intel® AES-NI) | yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | yes |
| Intel® OS Guard | yes |
| Intel® Secure Key | yes |
| Intel® Turbo Boost Technology | 2.0 |
| Maximum number of PCI Express lanes | 32 |
| Thermal Monitoring Technologies | yes |
| UART | yes |
| Memory channels supported by processor | Dual |
| Memory types supported by processor | DDR3-SDRAM, DDR4-SDRAM |
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating altitude | 0 - 5000 m |
| Harmonized System (HS) code | 84714100 |
| Compliance certificates | RoHS |
| Certification | EAC VCCI RCM FCC CE BSMI |
| Processor ARK ID | 91195 |
