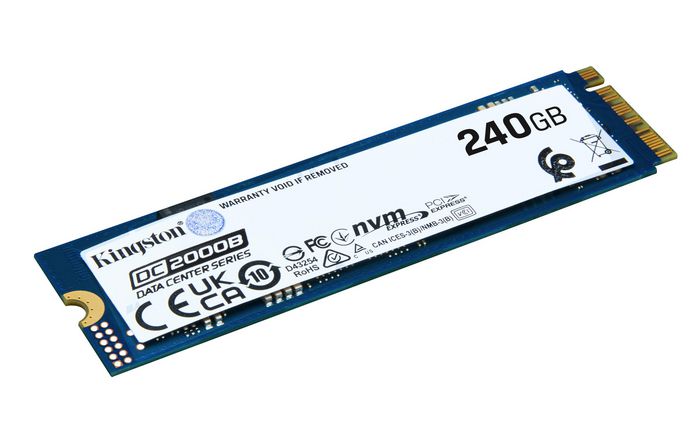

Kingston 240G DC2000B PCIe 4.0 M.2 2280 Enterprise SSD (Non-Heatsink)
Enterprise class for server applications Kingston’s DC2000B SSD is a high-performance boot drive designed for data centers using the latest Gen 4x4 PCIe interface with 3D TLC NAND. With low latency, IOPS consistency and hardware-based power loss protection, it ensures reliability and efficiency. Available in capacities of up to 960GB, it's ideal for enterprise server boot and caching applications. Kingston DC2000B is a high-performance PCIe 4.0 NVMe M.2 SSD using a Gen 4x4 PCIe controller and 3D TLC NAND. Ideally suited for use in high-volume rack-mount servers as an internal boot drive(s) to preserve valuable front-loading drive bays, as well as for use in purpose-built systems where a high-performance M.2 SSD is needed that includes hardware-based on-board power loss protection (PLP). New for DC2000B is an integrated aluminium heatsink that offers broader thermal compatibility for a wide range of systems. DC2000B delivers low latency and excellent IO consistency to handle various w
Availability: In stock
Enterprise class for server applications PCIe 4.0 NVMe performance On-board power loss protection (PLP) Low latency and IOPS consistency Designed for data center environments Enterprise class for server applications Kingston’s DC2000B SSD is a high-performance boot drive designed for data centers using the latest Gen 4x4 PCIe interface with 3D TLC NAND. With low latency, IOPS consistency and hardware-based power loss protection, it ensures reliability and efficiency. Available in capacities of up to 960GB, it's ideal for enterprise server boot and caching applications. Kingston DC2000B is a high-performance PCIe 4.0 NVMe M.2 SSD using a Gen 4x4 PCIe controller and 3D TLC NAND. Ideally suited for use in high-volume rack-mount servers as an internal boot drive(s) to preserve valuable front-loading drive bays, as well as for use in purpose-built systems where a high-performance M.2 SSD is needed that includes hardware-based on-board power loss protection (PLP). New for DC2000B is an integrated aluminium heatsink that offers broader thermal compatibility for a wide range of systems. DC2000B delivers low latency and excellent IO consistency to handle various workloads from boot drive applications to high-speed application caching. DC2000B is rated at 0.4 DWPD write endurance and carries a 5-year warranty." PCIe 4.0 NVMe performance Utilises PCIe Gen 4x4 lanes for high-performance speeds. On-board power loss protection (PLP) Reduce the possibility of data loss and/or corruption due to unexpected power-off. Low latency and IOPS consistency Firmware optimised to deliver low latency and IO consistency for high duty cycle workloads. Designed for data center environments Optimised to meet the demands of server boot applications with low latency and IO consistency as the key design criteria.
Specifications
| Component for | Server |
| Drive writes per day (DWPD) | 0,4 |
| H/W PLP function | Yes |
| Interface | PCI Express 4.0 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Mean time between failures (MTBF) | 2000000 h |
| Memory type | 3D TLC |
| NVMe | Yes |
| PCI Express interface data lanes | x4 |
| Random read (4KB) | 260000 IOPS |
| Random write (4KB) | 18000 IOPS |
| Read latency | 70 µs |
| Read speed | 4500MB/s |
| S.M.A.R.T. support | Yes |
| SSD capacity | 240 GB |
| SSD form factor | M.2 |
| TBW rating | 175 |
| Write latency | 53 µs |
| Write speed | 400MB/s |
| Master (outer) case gross weight | 403,12 g |
| Master (outer) case height | 6,985 cm |
| Master (outer) case length | 20,32 cm |
| Master (outer) case width | 13,589 cm |
| Products per master (outer) case | 10 pc(s) |
| Non-operating vibration | 20 G |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Average power consumption (read) | 2,97 W |
| Average power consumption (write) | 4,02 W |
| Power consumption (read) | 3,01 W |
| Power consumption (write) | 4,09 W |
| Brand Name | Kingston |
| Warranty | 1 year |
