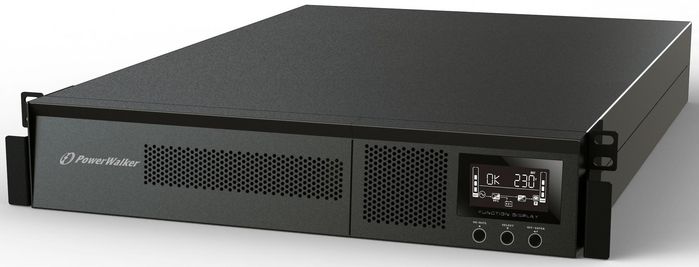

PowerWalker VFI 3000 RMG PF1 - 3000VA, 3000W, 3:1, USB, RS-232, EPO
The PowerWalker VFI 1000-3000 RMG PF1 is a professional series for commercial applications featuring unity Power Factor (PF=1.0) and very strong charger with adjustable current. The wide input voltage and frequency ranges allow operation in unstable networks and provide generator support. Multiple accessories, including battery packs and communication cards, enhance the functionality of the UPS and allow a greater backup time. The system can be monitored locally via an LCD panel or remotely via
Availability: In stock
The PowerWalker VFI 1000-3000 RMG PF1 is a professional series for commercial applications featuring unity Power Factor (PF=1.0) and very strong charger with adjustable current. The wide input voltage and frequency ranges allow operation in unstable networks and provide generator support. Multiple accessories, including battery packs and communication cards, enhance the functionality of the UPS and allow a greater backup time. The system can be monitored locally via an LCD panel or remotely via the PowerWalker ViewPower software. With its slim design it only requires 2U valuable space of your rack system. The UPS can be installed in 19” rack systems or used as tower.
Specifications
| Battery recharge time | 3 h |
| Battery Technology | Zinc-Carbon (Zn-C) |
| Battery voltage | 12 V |
| Number of batteries supported | 6 |
| Typical backup time at full load | 3 min |
| Typical backup time at half load | 10,1 min |
| Display | LCD |
| Display type | LCD |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Input current Total Harmonic Distortion (THD) | 1,6 % |
| Input frequency | 40/70 Hz |
| Input operation voltage (max) | 300 V |
| Input operation voltage (min) | 110 V |
| Noise level | 50 dB |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 200 V |
| Output power | 3000 W |
| Output power capacity | 3 kVA |
| Output voltage regulation | 1 % |
| Output voltage Total Harmonic Distortion (THD) | 2 % |
| Power factor | 0,99 |
| Surge protection | Yes |
| Surge protection features | Fax, Modem, Network |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Operating relative humidity (H-H) | 20 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Bundled software | ViewPower / ViewPowerMini |
| Cables included | Input power cable, Output power cable, USB cable |
| Manual | Yes |
| Resource CD | Yes |
| Warranty card | Yes |
| AC outlet types | C13 coupler, C19 coupler |
| Emergency Power Off (EPO) connector | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Modem (RJ-11) ports | 1 |
| Number of type F outputs | 9 |
| Power plug | C14 coupler |
| RS-232 ports | 1 |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| Brand Name | PowerWalker |
| Warranty | 2 years |
| Package type | Box |
