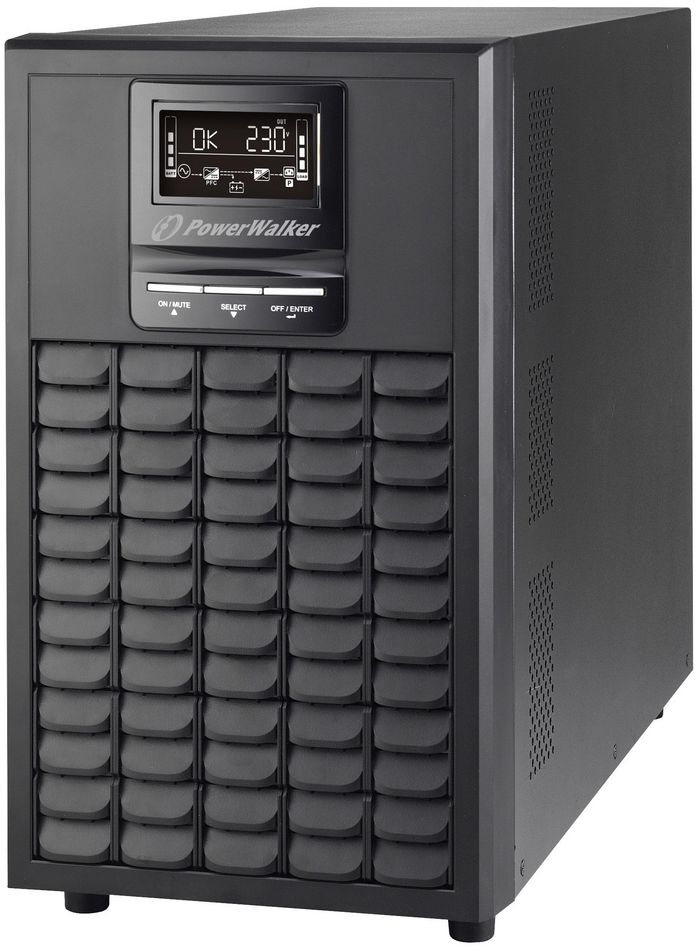

PowerWalker VFI 3000 CG PF1 - 3000VA, 3000W, 3:1, USB, RS-232, EPO
The PowerWalker VFI 1000-10000 CG PF1 is a professional series for commercial applications featuring unity Power Factor (PF=1.0). The wide input voltage and frequency ranges allow operation in unstable networks and provide generator support. 1-3kVA are equipped with a very strong charger with adjustable current and 6-10kVA can present very low harmonic distortions (<1%) and high efficiency (up to 94%). Multiple accessories, including battery packs and communication cards, enhance the functionali
Availability: In stock
The PowerWalker VFI 1000-10000 CG PF1 is a professional series for commercial applications featuring unity Power Factor (PF=1.0). The wide input voltage and frequency ranges allow operation in unstable networks and provide generator support. 1-3kVA are equipped with a very strong charger with adjustable current and 6-10kVA can present very low harmonic distortions (<1%) and high efficiency (up to 94%). Multiple accessories, including battery packs and communication cards, enhance the functionality of the UPS and allow a greater backup time. The system can be monitored locally via an LCD panel or remotely via the PowerWalker ViewPower software.
Specifications
| Battery recharge time | 6 h |
| Battery Technology | Zinc-Carbon (Zn-C) |
| Battery voltage | 12 V |
| Number of batteries supported | 3 |
| Typical backup time at full load | 3 min |
| Typical backup time at half load | 10,1 min |
| Cooling type | Active |
| Display | LCD |
| Display type | LCD |
| Form factor | Tower |
| Product colour | Black |
| Crest factor | 3:1 |
| Efficiency | 89 % |
| Emergency Power Off (EPO) | Yes |
| Input current Total Harmonic Distortion (THD) | 1,6 % |
| Input frequency | 40/70 Hz |
| Input operation voltage (max) | 300 V |
| Input operation voltage (min) | 110 V |
| Noise level | 50 dB |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 200 V |
| Output power | 3000 W |
| Output power capacity | 3 kVA |
| Output voltage regulation | 1 % |
| Output voltage Total Harmonic Distortion (THD) | 2 % |
| Power factor | 0,99 |
| Surge protection | Yes |
| Surge protection features | Fax, Modem, Network |
| UPS topology | Double-conversion (Online) |
| Operating relative humidity (H-H) | 20 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Bundled software | ViewPower |
| Cables included | Input power cable, Output power cable, USB cable |
| Manual | Yes |
| Resource CD | Yes |
| Warranty card | Yes |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 9 AC outlet(s) |
| Emergency Power Off (EPO) connector | Yes |
| Power plug | C20 coupler |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| USB port | Yes |
| Brand Name | PowerWalker |
| Warranty | 2 years |
| Package type | Box |
