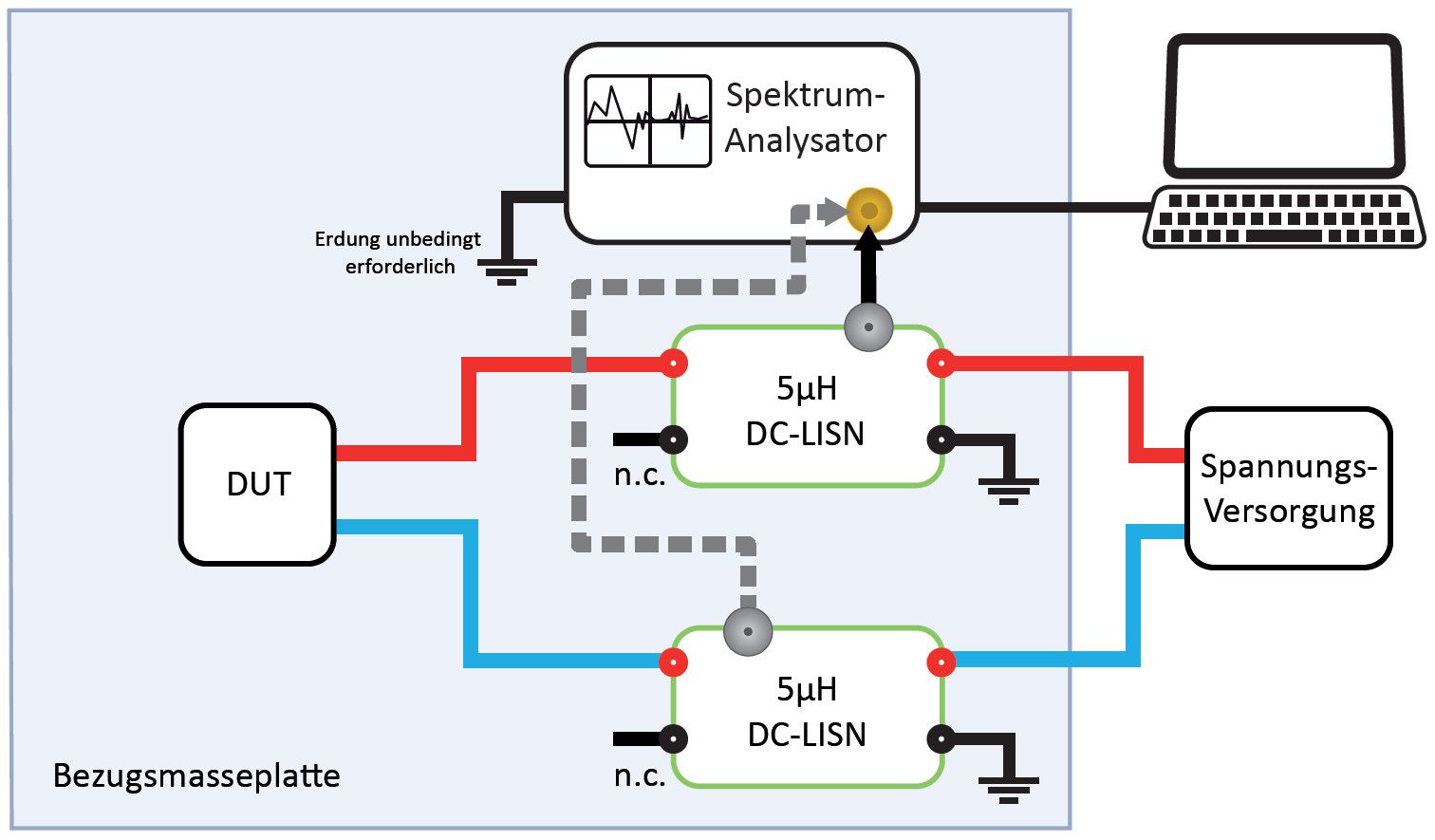

["5 µH network simulation (LISN) for DC devices up to 10 A The 5 µH LISN (Line Impedance Stabilization Network) of type TBOH01 is required to measure line-related interference from devices with a DC supply. The device is designed for EMC precompliance testing in the frequency range 150 kHz to 110 MHz according to CISPR 25, ISO 7637-2, ISO11452-2/4/5 and with restrictions DO-160/ED-14G. The LISN is looped into the supply line of the DUT (Device Under Test). Conducted interference that occurs on the DUT's supply can be measured via the BNC connection in conjunction with a spectrum analyzer or measurement receiver. The TBOH01 can also be used to couple HF noise into the DUT's supply line. The input (SOURCE connection) and output (DUT connection) of the LISN are decoupled via a 5 µH air coil. * The operating voltage is limited to 60 V for safety reasons. Although the components of the TBOH01 are designed for ≥ 200 V, the positive voltage could be accidentally connected to the negative terminal of the LISN and thus also to the housing of the LISN. Under these circumstances, if the DC voltage is > 60 V, touching the housing could cause a life-threatening electric shock", "Frequency range: 150 kHz…110 MHz (1 GHz, see illustration in the manual)", "DC resistance: 40mΩ", "Maximum current: 10 A", "Nominal operating voltage: 0..60 V*", "Integrated surge protection", "For precompliance testing according to CISPR 25, ISO 7637-2, ISO11452-2/4/5, with limitations DO-160/ED-14G"]
