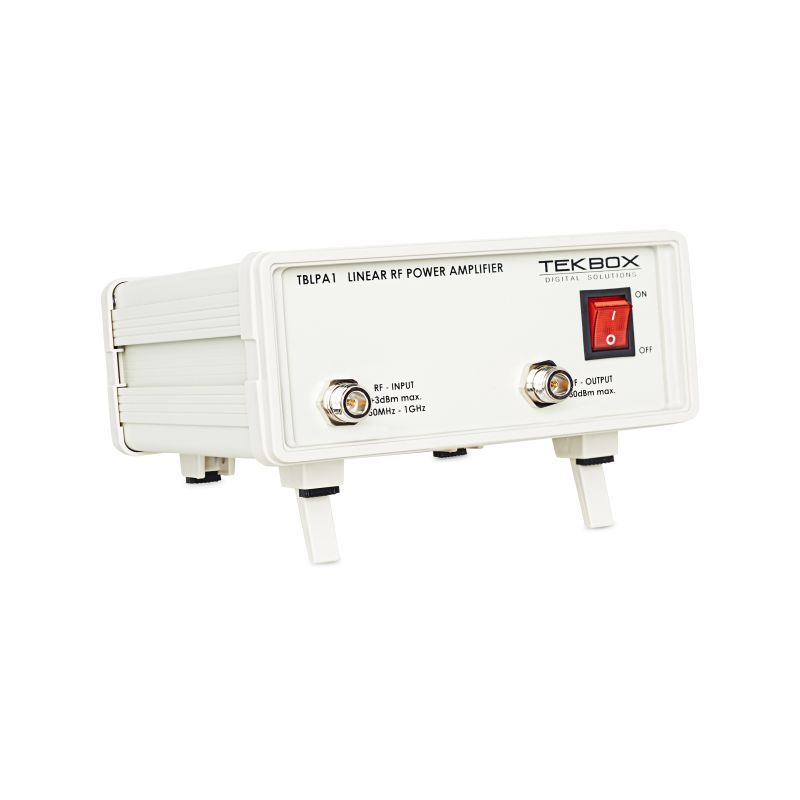

["TBLPA1 Broadband Linear RF Power Amplifier The TBLPA1 Broadband Linear Power Amplifier is a general purpose RF amplifier for test and measurement applications. It has an output power of up to 1 W and can be used in the frequency range from 10 MHz to 1 GHz and even beyond with reduced output power. Input / Output: 50 Ohm, N socket Supply voltage range: 110 V...240 V Power consumption of the supply: 15 W Operating temperature range:", "20°C to 60°C Frequency range: 50 MHz", "1GHz, (3MHz", "1.3GHz with reduced output power) Gain: 36dB typical, see Table 1 for details 1dB output compression point @ 10MHz: +29.5 dBm typ. 1dB output compression point at 100 MHz: +30.9 dBm typ. 1dB output compression point at 500 MHz: +31.3 dBm typ. 1dB output compression point at 1 GHz: +28.7 dBm typ. Noise figure: 2.5 dB typ. 2nd harmonic, 50MHz, Pout=30dBm: <", "50 dBc typ. 2nd harmonic, 200MHz, Pout=30dBm: <", "40 dBc type 3rd harmonic, 50MHz, Pout=30dBm: <", "30 dBc type 3rd harmonic, 200MHz, Pout=30dBm: <", "25 dBc typ Total harmonic distortion: 0.85% @200MHz, Pout=27dBm typ. 1.13% at 200MHz, Pout=28dBm typ. 2.33% @200MHz, Pout=29dBm typ. 5.6% @200MHz, Pout=30dBm typ. Third order intercept point: +50dBm, @200MHz, ? f = 200kHz typ. Input Return Loss: 50 MHz: 11dB typ. 800 MHz: 16dB typ. Output VSWR: 50 MHz: 2.1:1 800 MHz: 1.4:1 Maximum Ratings: Maximum Input Power: +3 dBm The output of the TBLPA1 is quite tolerant of output mismatch, however, an open or short circuited Load not recommended as it can potentially cause damage. Small signal gain (measured with pin =", "20dBm):"]
