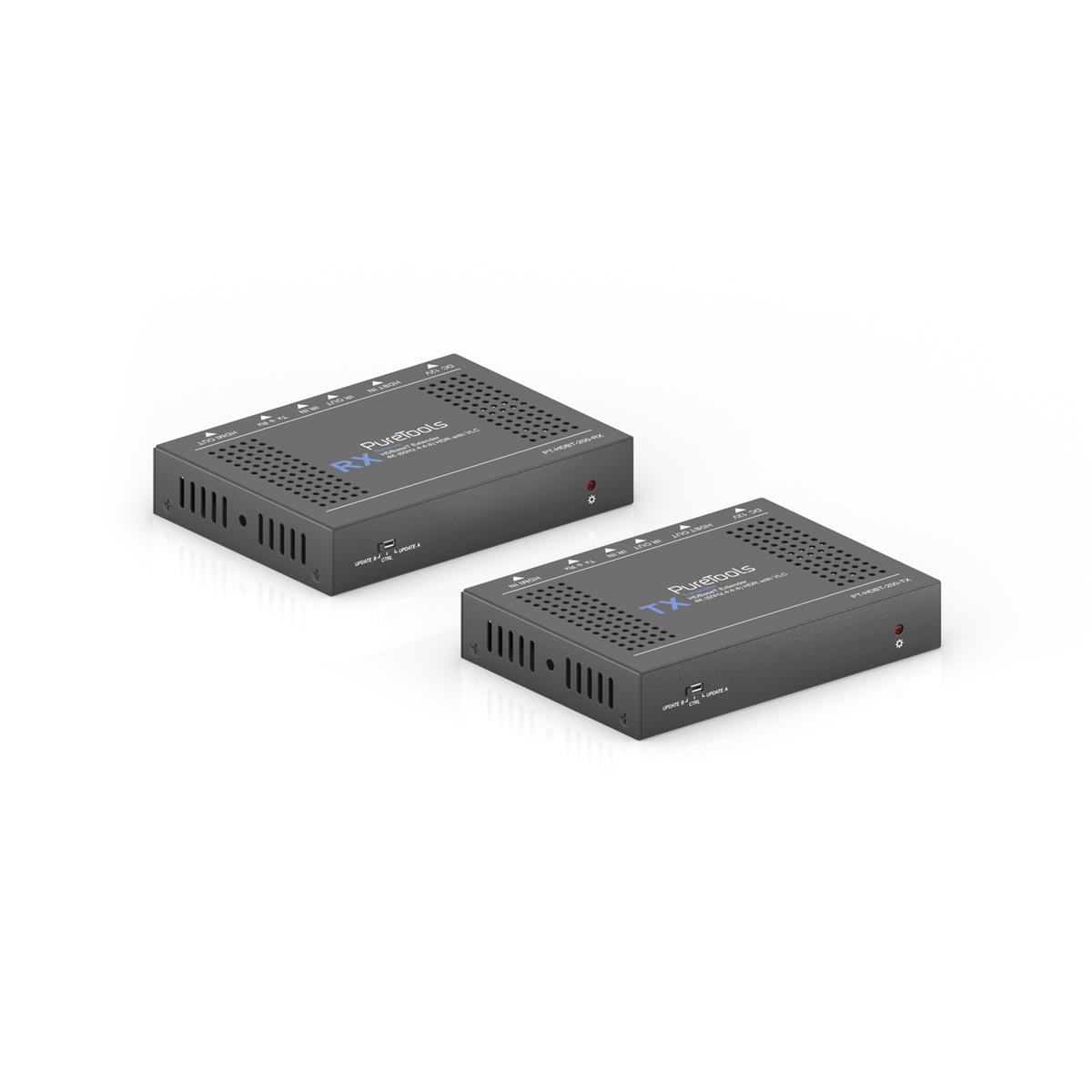

PureLink PT-HDBT-200 | 3840x2160 60Hz 4:4:4 HDBaseT 1.0 Class B Transmitter & reciever kit | Range 70m
PureLink PT-HDBT-200 | 3840x2160 60Hz 4:4:4 HDBaseT 1.0 Class B Transmitter & reciever kit | Range 70m
Availability: In stock
Features Transmission of HDMI via HDBaseT up to 40m (4K), 70m (1080p) Supports 18Gbps for resolutions up to 4K UltraHD 60Hz Bidirectional PoC, pass-through for IR, CEC and RS232, EDID management Visually lossless compression (VLC technology) for max. 18Gbps Robust enclosure with mounting brackets, screwable power supply 18Gbps HDMI Extender with VLC Technology PT-HDBT-200 is a fully HDMI 2.0a compliant HDBaseT extender set. The set is capable of 40m range at 18Gbps, and makes full 4K@60 4:4:4 and HDR content finally compliant with HDBaseT. Transmission of the maximum HDMI bandwidth is made possible by the use of its advanced visually lossless compression algorithm which enables HDBaseT to work with current cutting edge hardware and source material. The PT-HDBT-200 provides crystal clear HDR and full bandwidth 4K at distances and quality that were previously not possible in this price category. HDMI 2.0a HDBaseT Extender Set FULL 18GBPS AND HDR Compatible with the new Ultra High Definition sources and displays, displaying signals at resolutions up to 4K @60 4:4:4 (18Gbps) and shows crystal clear HDR media to its best ability. SMART SIGNAL MANAGEMENT With smart EDID management, IR and RS232 passthrough, the PT-HDBT-200 is perfectly equipped to handle all your data without difficulties. Simply plug and play. HDBT TRANSMISSION With HDBaseT transmission up to 40m range at 4k (70m at 1080p), two way PoC, plus proprietary VLC compression technology, the PT-HDBT-200 is a cutting edge professional HDBaseT extender set at a commercial price point. ULTRA COMPACT SIZE All of this technology is packed into a compact enclosure, for installation into furniture or under desks.
Specifications
| Extender type | Transmitter & reciever kit |
| Technology | HDBaseT 1.0 Class B |
| Range (Max) | 70 m @1080p 60, 40m @ 4K60 (4:4:4) |
| Max supported resolution | 3840 x 2160 18 Gbps |
| Refresh rate | 60 Hz |
| Chroma subsampling (4K) | 4:4:4 |
| Scaler | no |
| Video in | HDMI HDMI 2.0a & HDCP2.2; HDR |
| Video out | HDMI HDMI 2.0a & HDCP2.2; HDR |
| Control | IR cable connection in/out |
| Control (Connections) | RS-232 |
| USB passthrough | no |
| Power Supply | PoC or 12VDC 2A External power supply (included) |
| Width | 115 mm |
| Depth | 84 mm |
| Height | 12 mm |
| Net weight | 0.24 kg |
| Mounting | Freestanding/Shelf |
| Included Accessories | 1 x PT-HDBT-200-TX Transmitter, 1 x PT-HDBT-200-RX Receiver, 4 x Mounting Ears & 4 x Screws, 2 x 3-pin Phoenix Connector, 1 x User Manual, 8 x Plastic Cushions, 1 x Power Adaptor (12VDC, 2A) |
| Warranty | 5 years |
| Packaging size | 191 x 162 x 131 mm |
| Packaging weight | 657 g |
| Barcode | 4251364706787 |
